Removing and Installing/Replacing Left or Right Interior Light (Side)

63 31 015 - Removing and installing/replacing left or right interior light (side)





Special tools required:
- 64 1 020 64 1 020 Release Hook





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

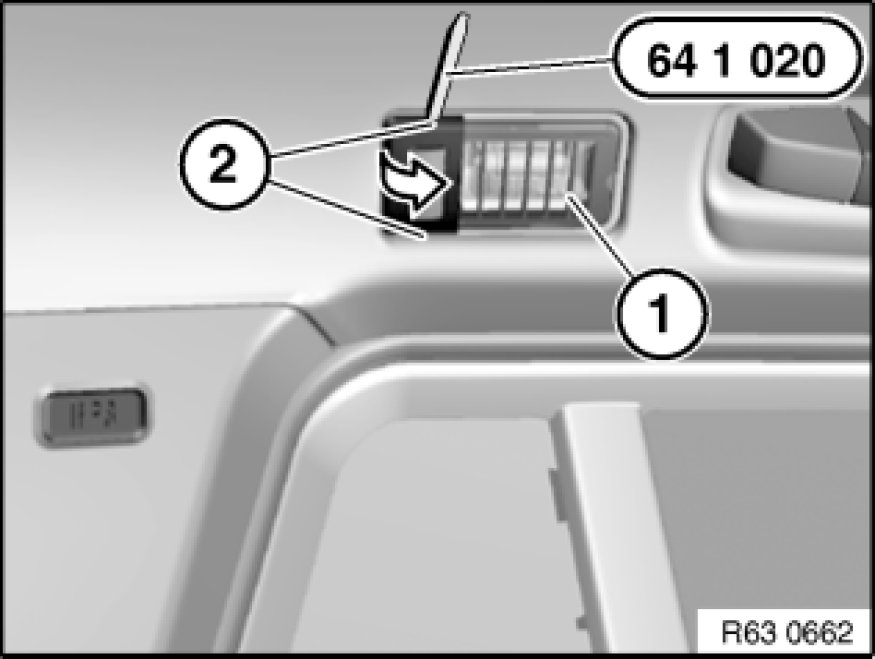

Lever out lens cover (1) with special tool 64 1 020 64 1 020 Release Hook at retaining points (2).

Feed out lens cover (1) in direction of arrow and remove.

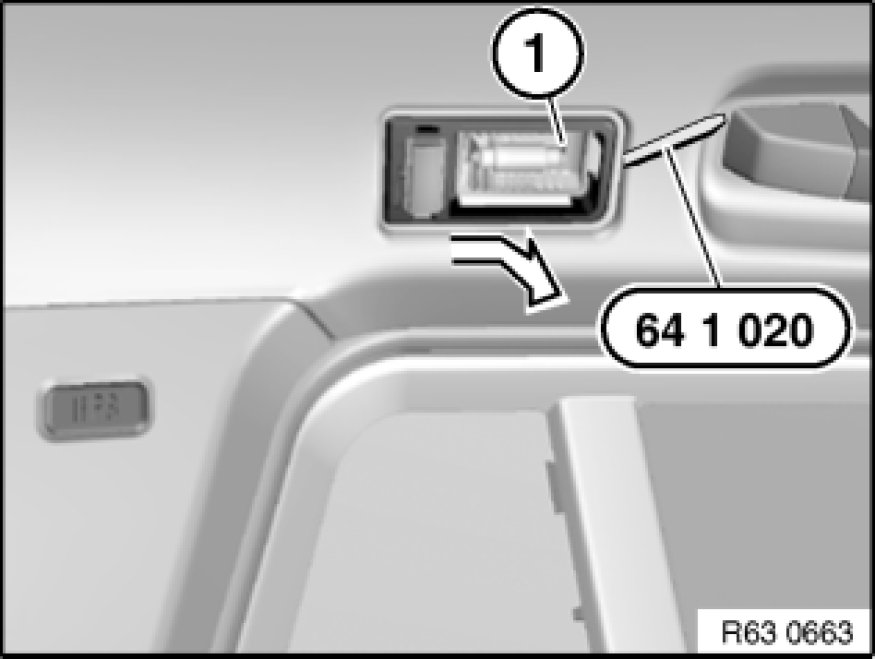

Lever out interior light (1) with special tool 64 1 020 64 1 020 Release Hook and remove in direction of arrow.

Disconnect associated plug connection.





Replacement:

If necessary, remove bulb Replacing Light Bulb for Left or Right Interior Light.
