Removing and Installing/Replacing Footwell Light

63 31 020 - Removing and installing/replacing footwell light





Special tools required:
- 64 1 020 64 1 020 Release Hook





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

Replacement:

If necessary, remove bulb.

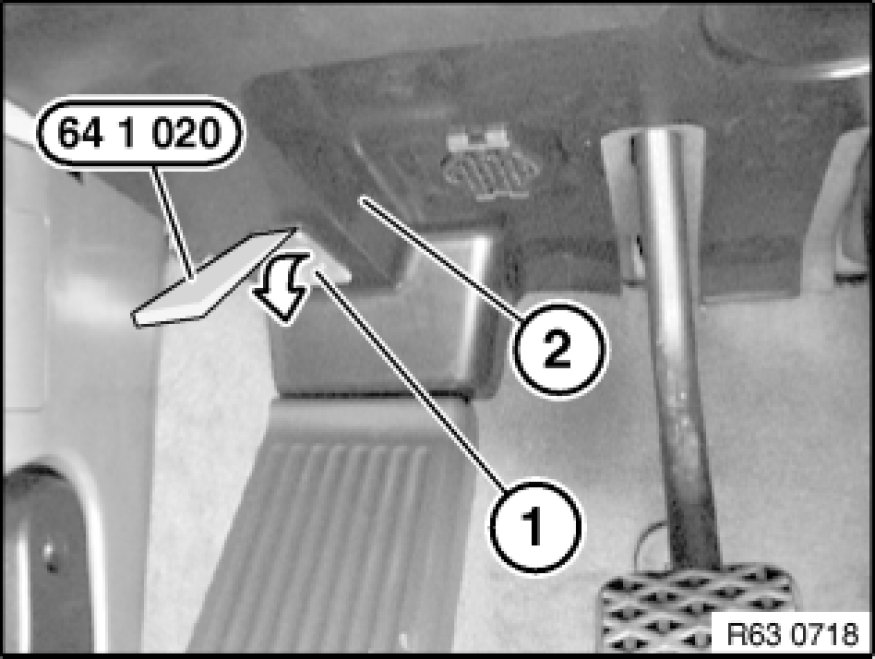

Lever footwell light (1) with special tool 64 1 020 64 1 020 Release Hook out of trim for pedal assembly (2).

Disconnect associated plug connection and remove footwell light (1).

Replacement:

Note type of bulb Interior Lights.
