Diagnostic Module For Tank Leakage (DMTL) (USA_LHD)

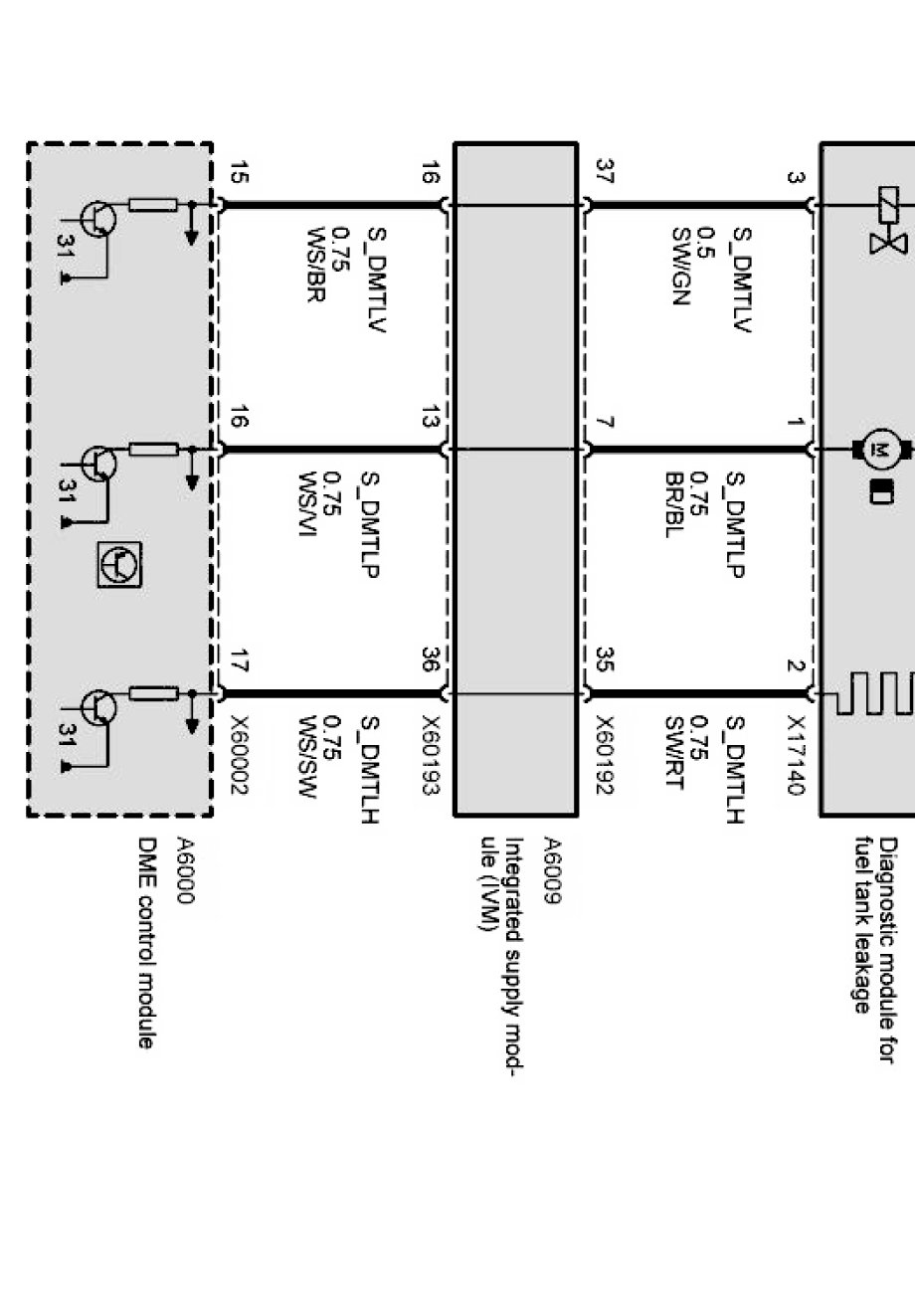

Fuel tank leakage diagnosis module, heated Part 1:

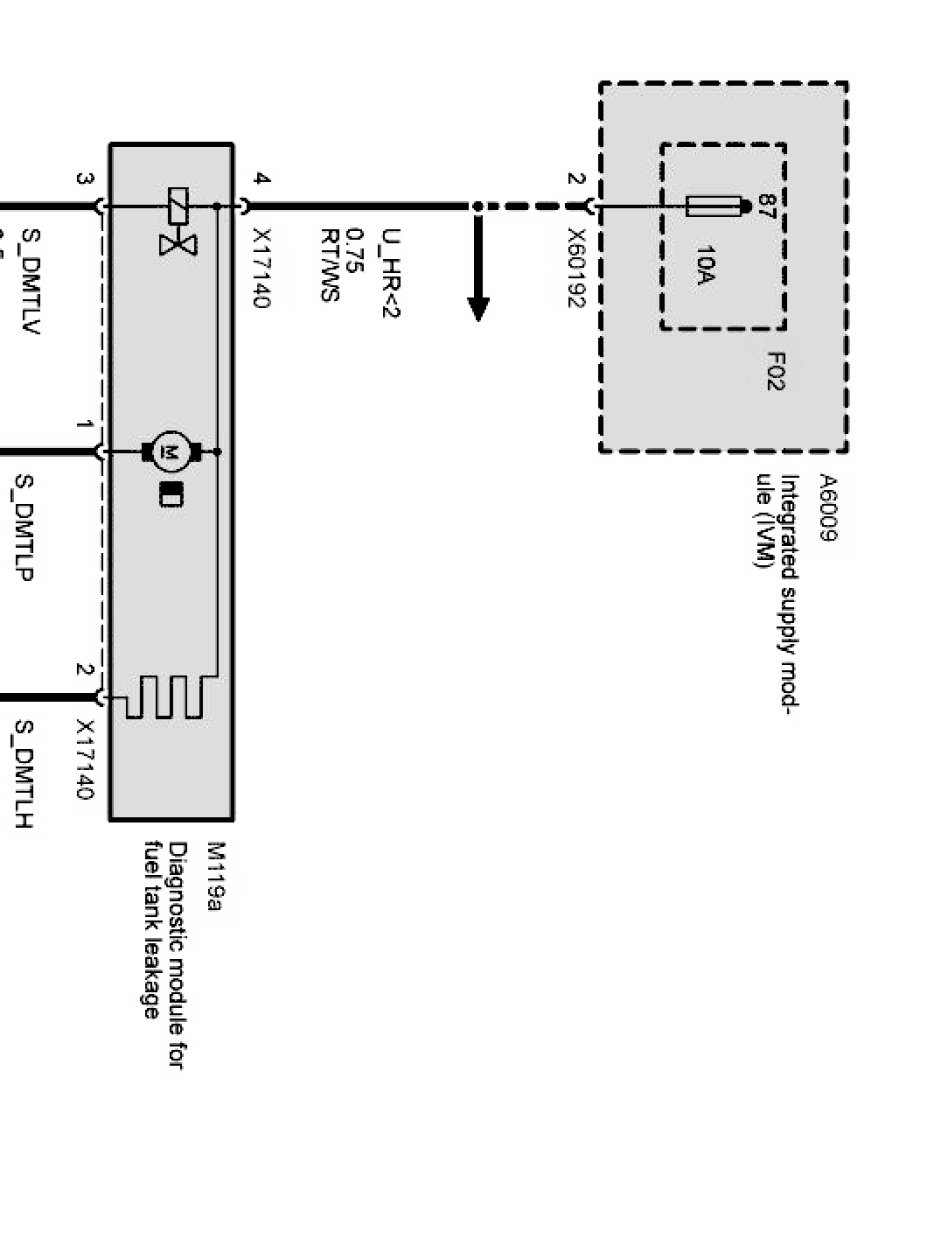

Fuel tank leakage diagnosis module, heated Part 2:
