Engine-Speed Measurement

Valve gear Part 1:



Valve gear Part 2:



Valve gear Part 3:



Valve gear Part 4:

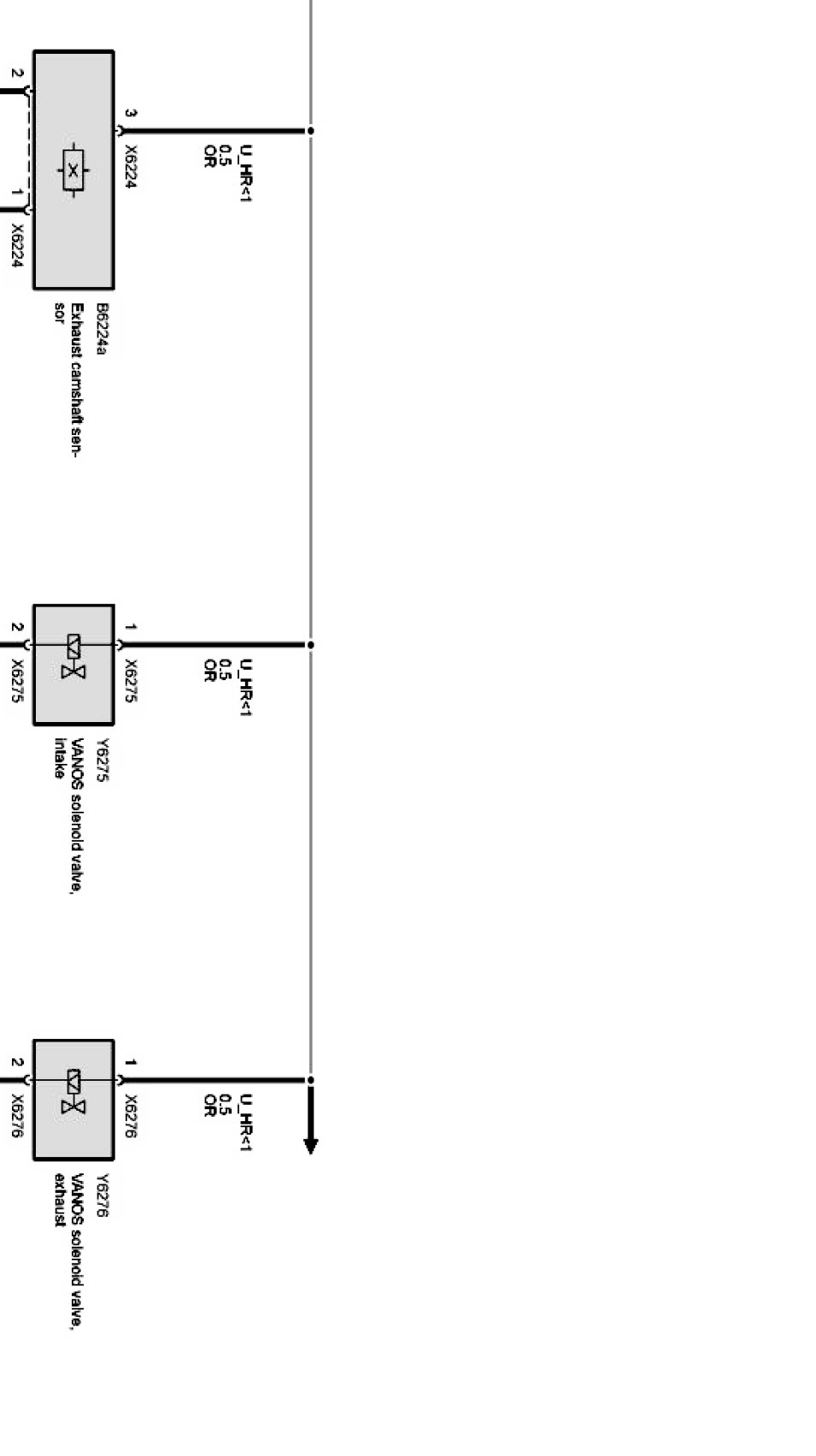

Valve gear Part 5:

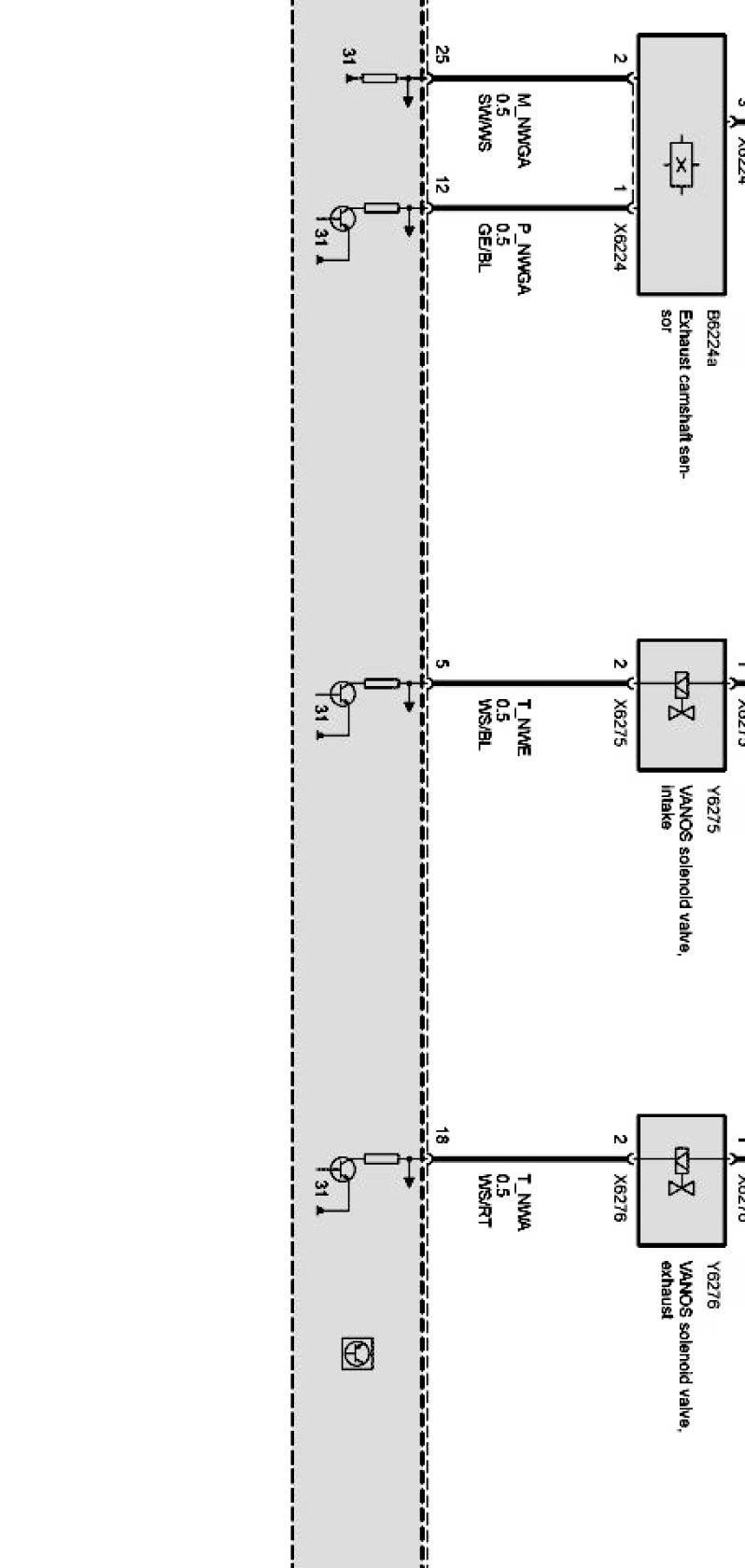

Valve gear Part 6:

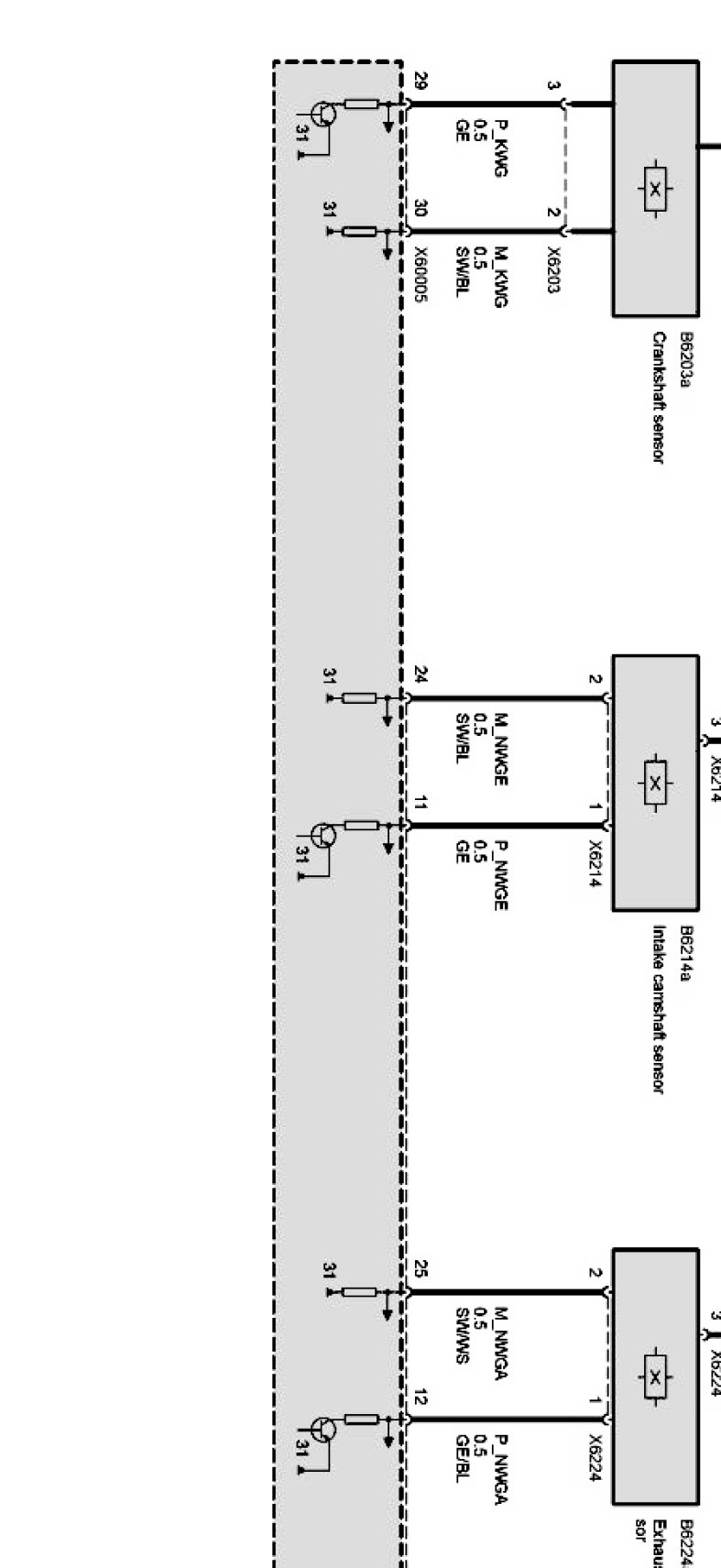

Valve gear Part 7:

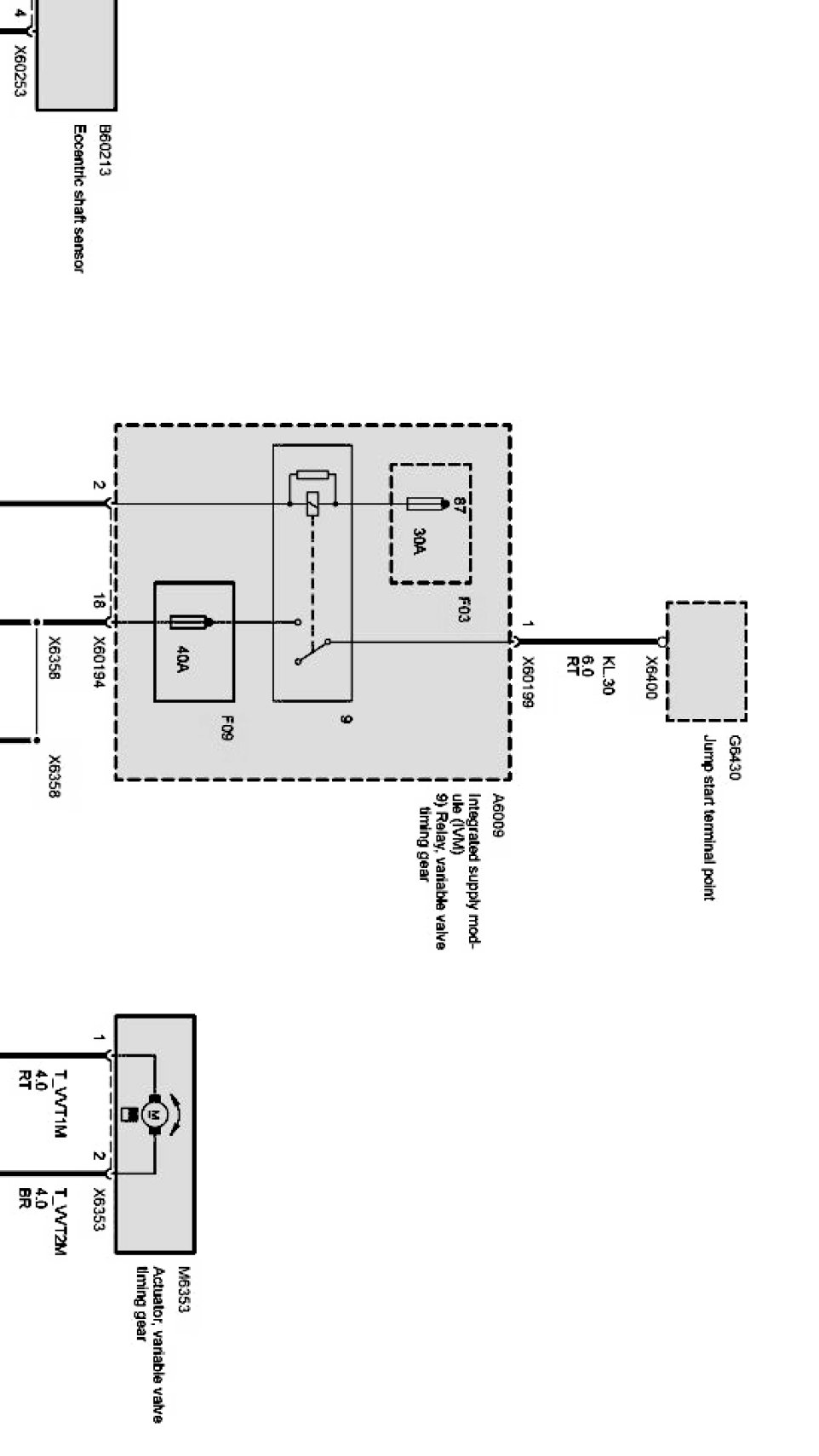

Valve gear Part 8:
