DME Control Module

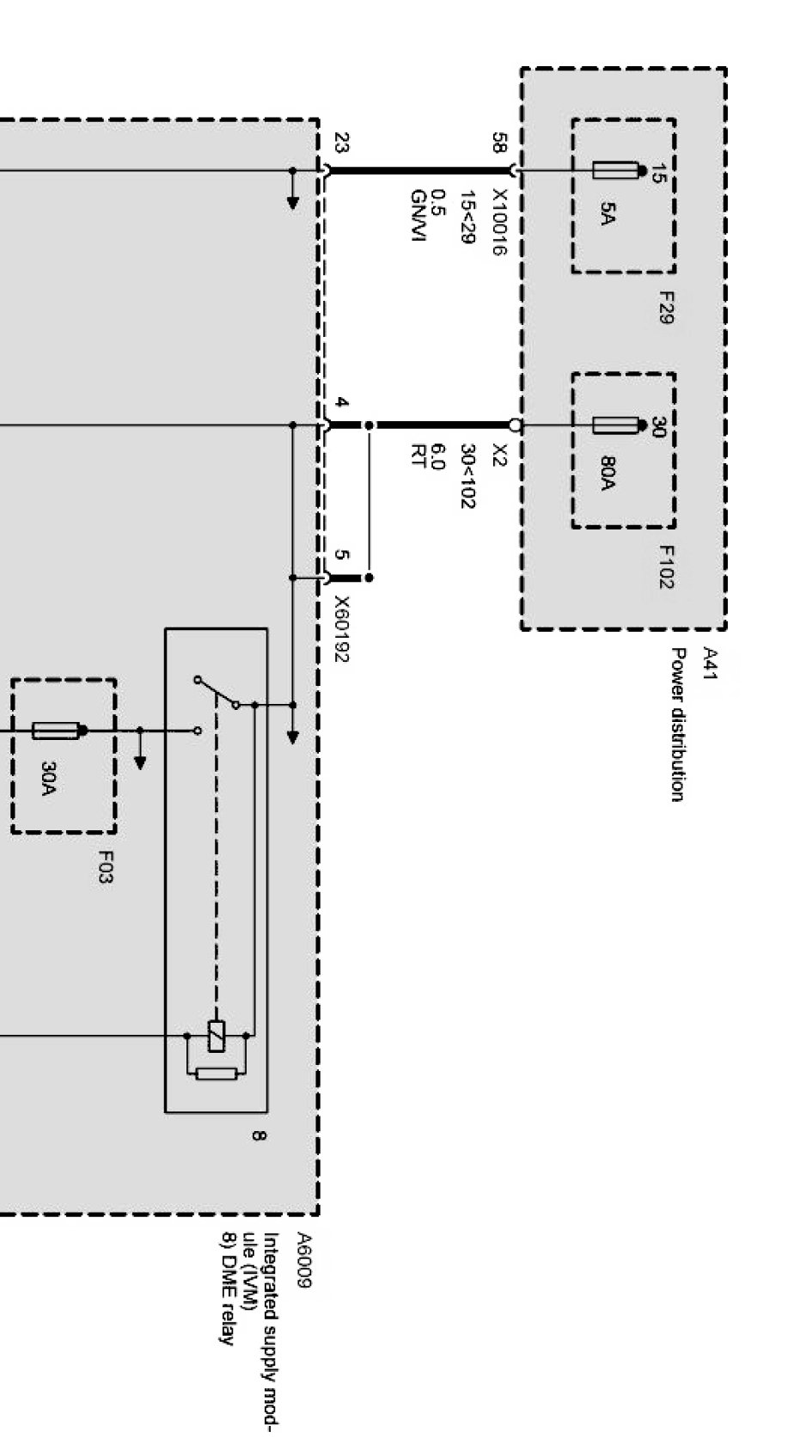

Supply, DME control module Part 1:

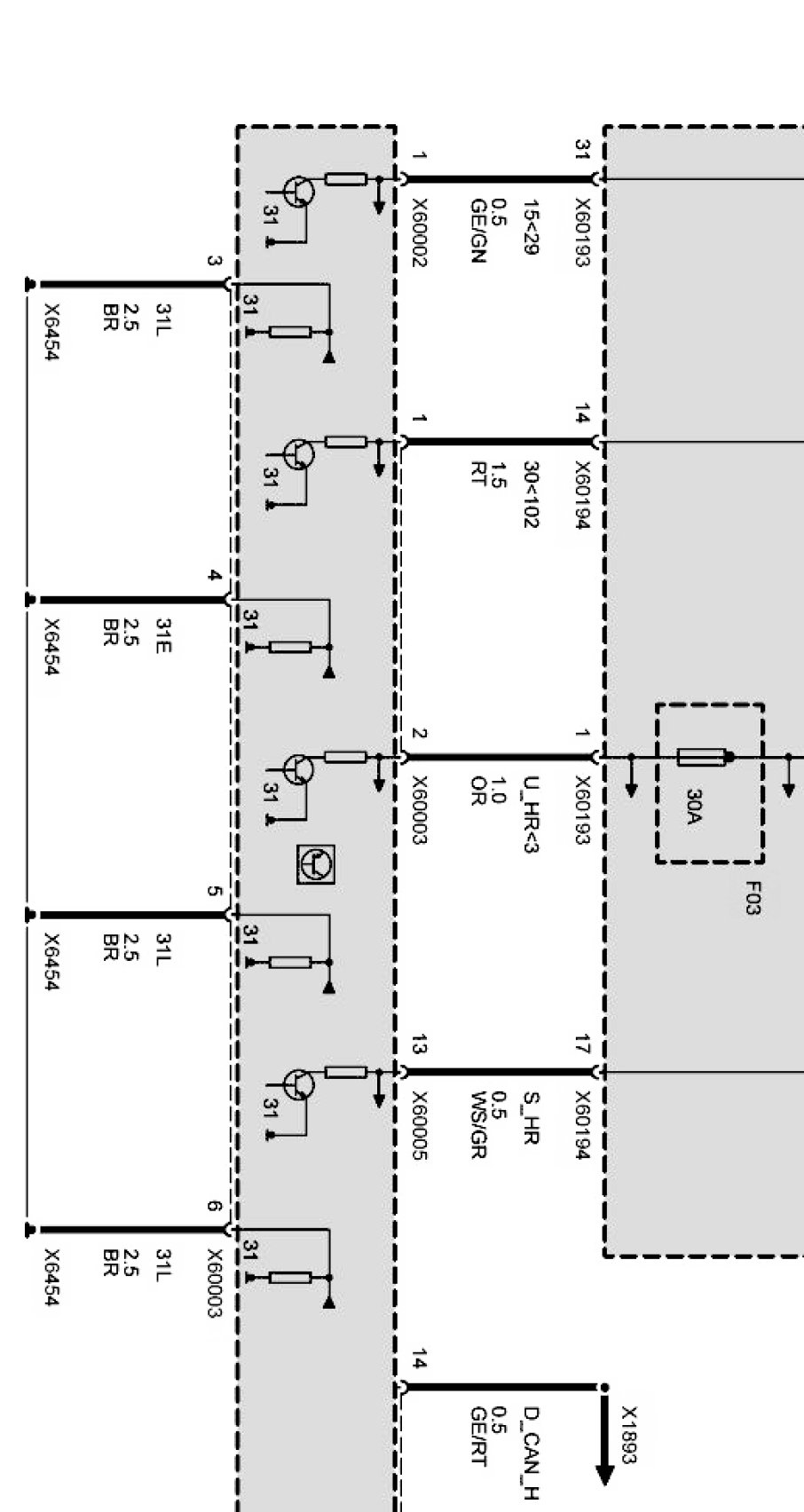

Supply, DME control module Part 2:

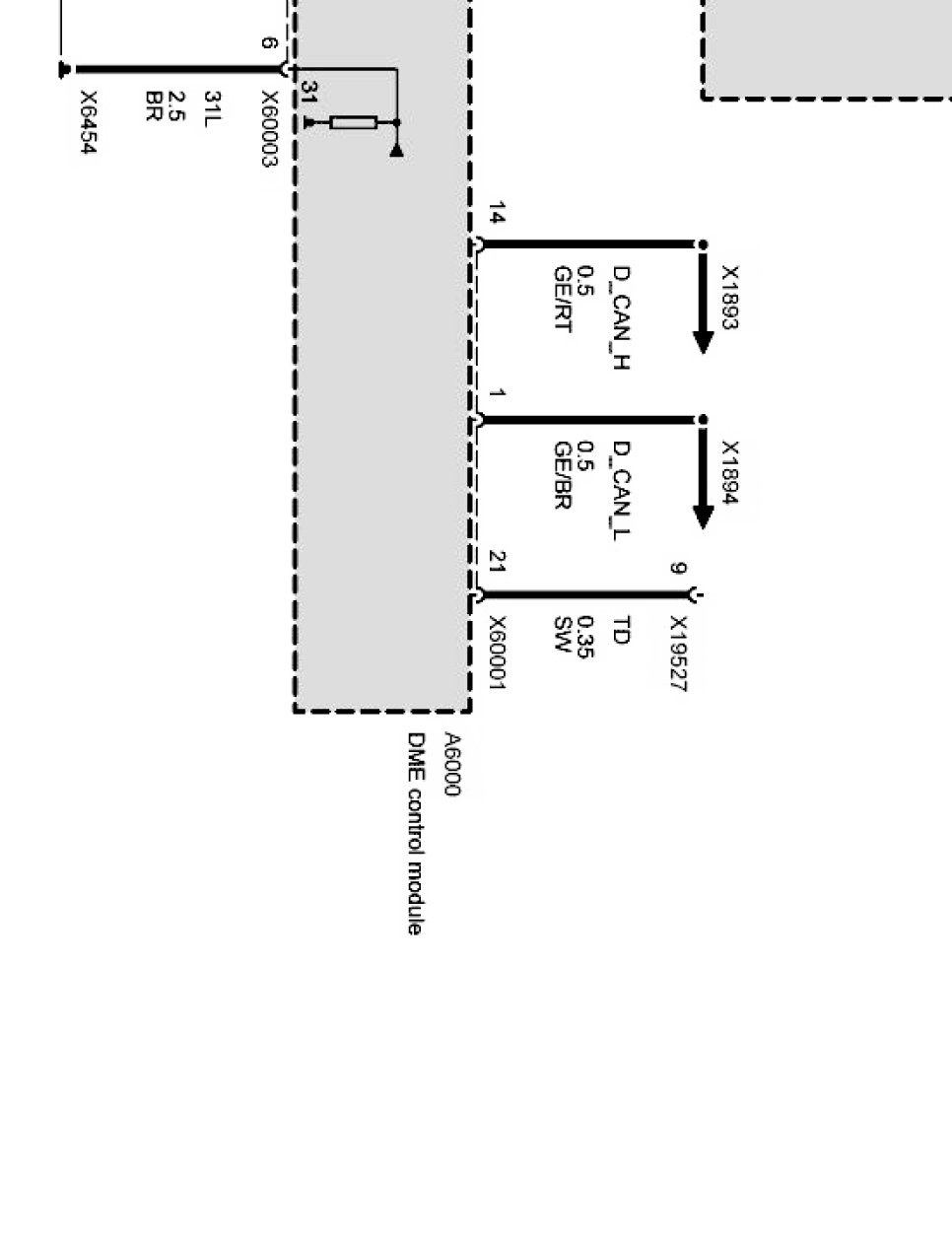

Supply, DME control module Part 3:
