(EWS III) (X Series_X3-E83 With N52 Engine)

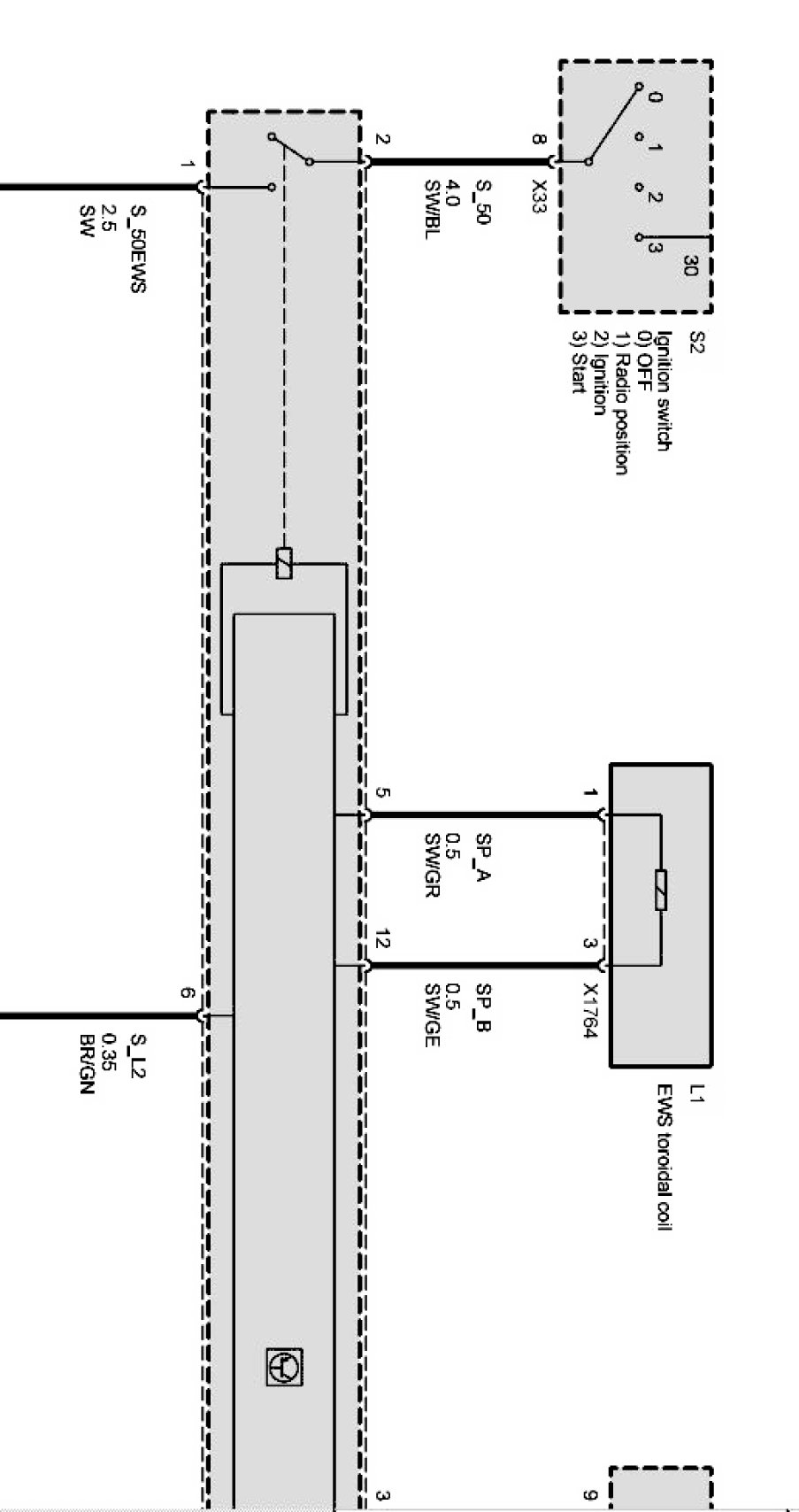

Electronic immobilizer (EWS III) Part 1:

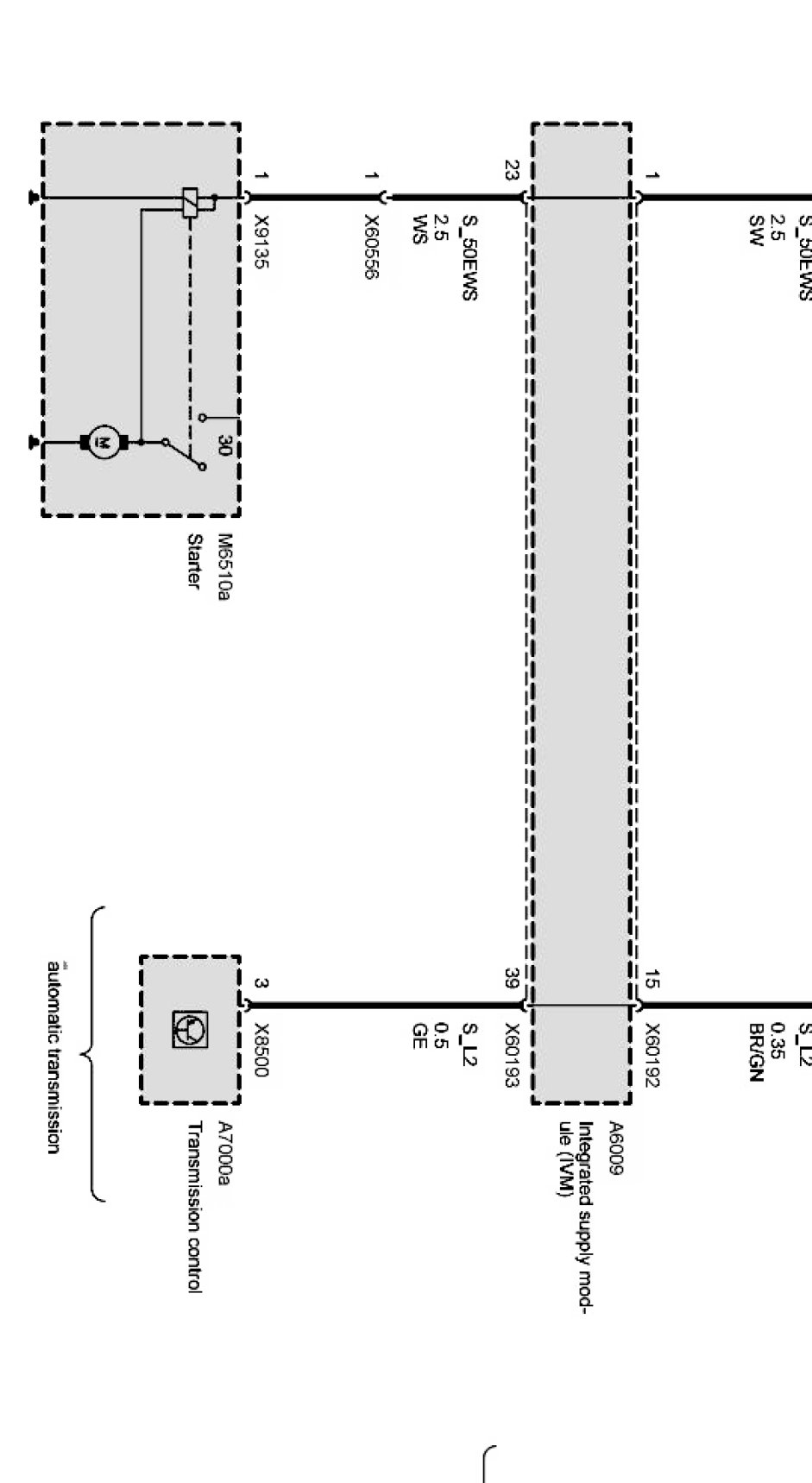

Electronic immobilizer (EWS III) Part 2:

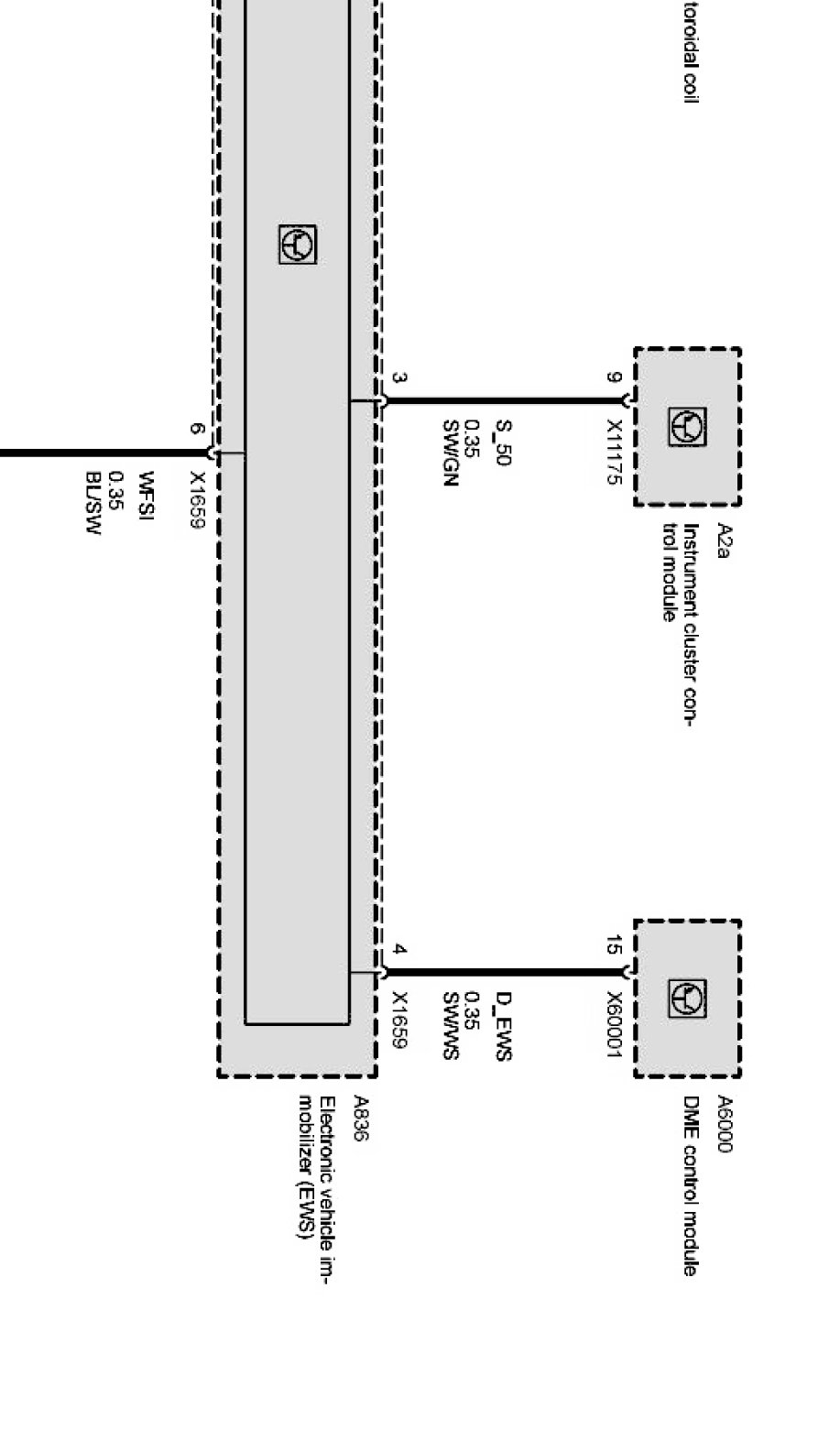

Electronic immobilizer (EWS III) Part 3:



Electronic immobilizer (EWS III) Part 4:
