Cellular Telephone (X Series_X3-E83 As of 09/05)
Cellular Telephone (X Series_X3-E83 As of 09/05)

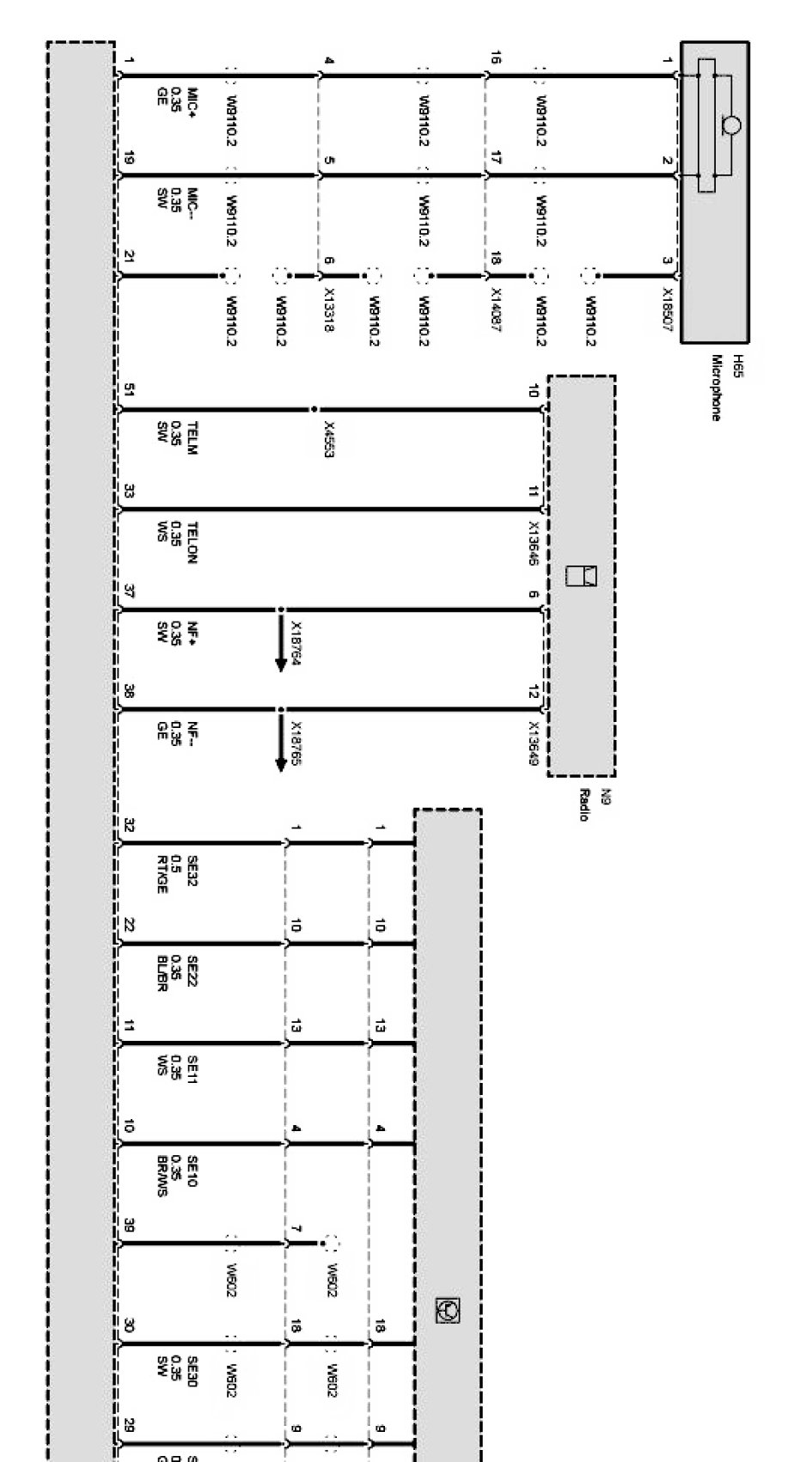

Cellular telephone Part 1:

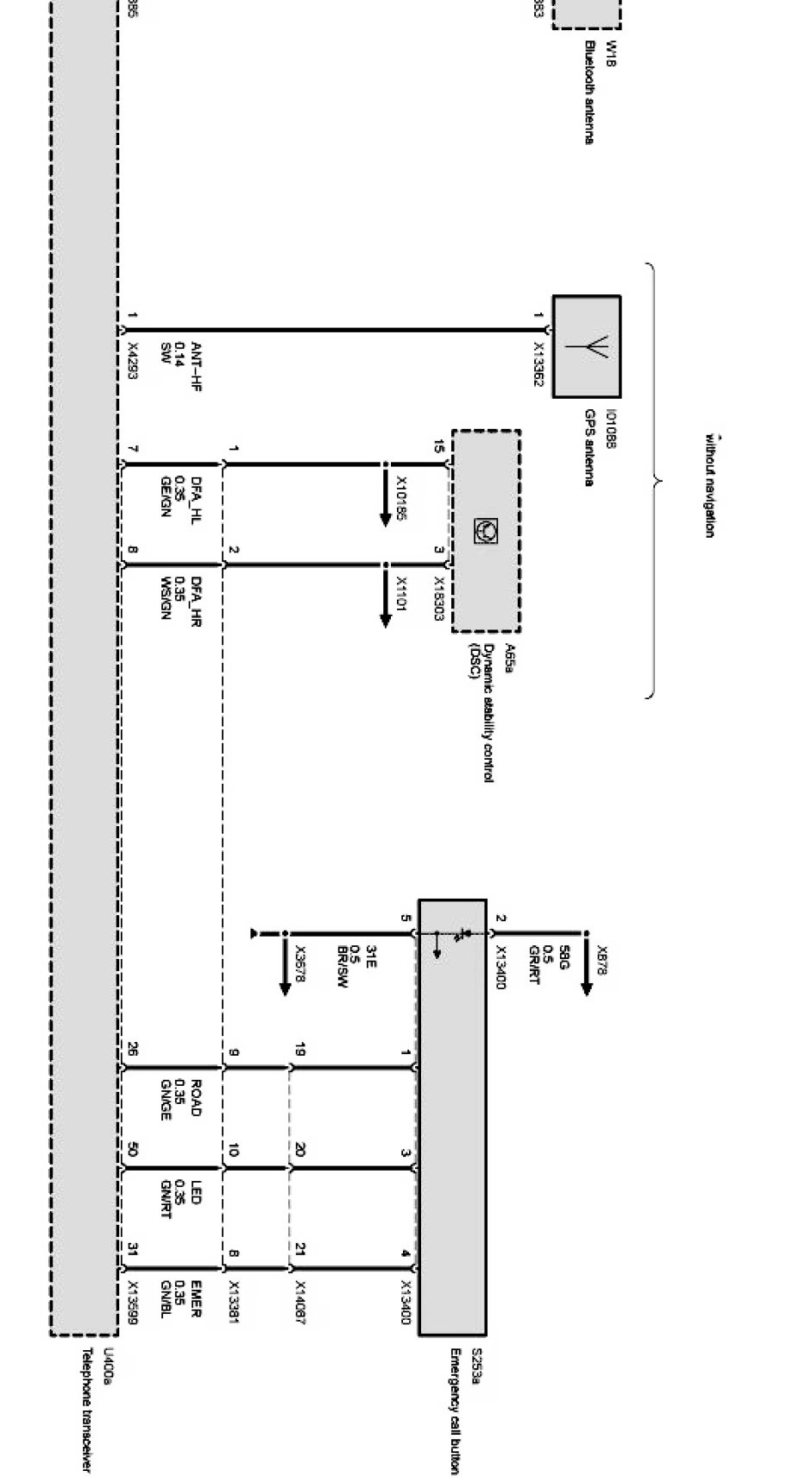

Cellular telephone Part 2:

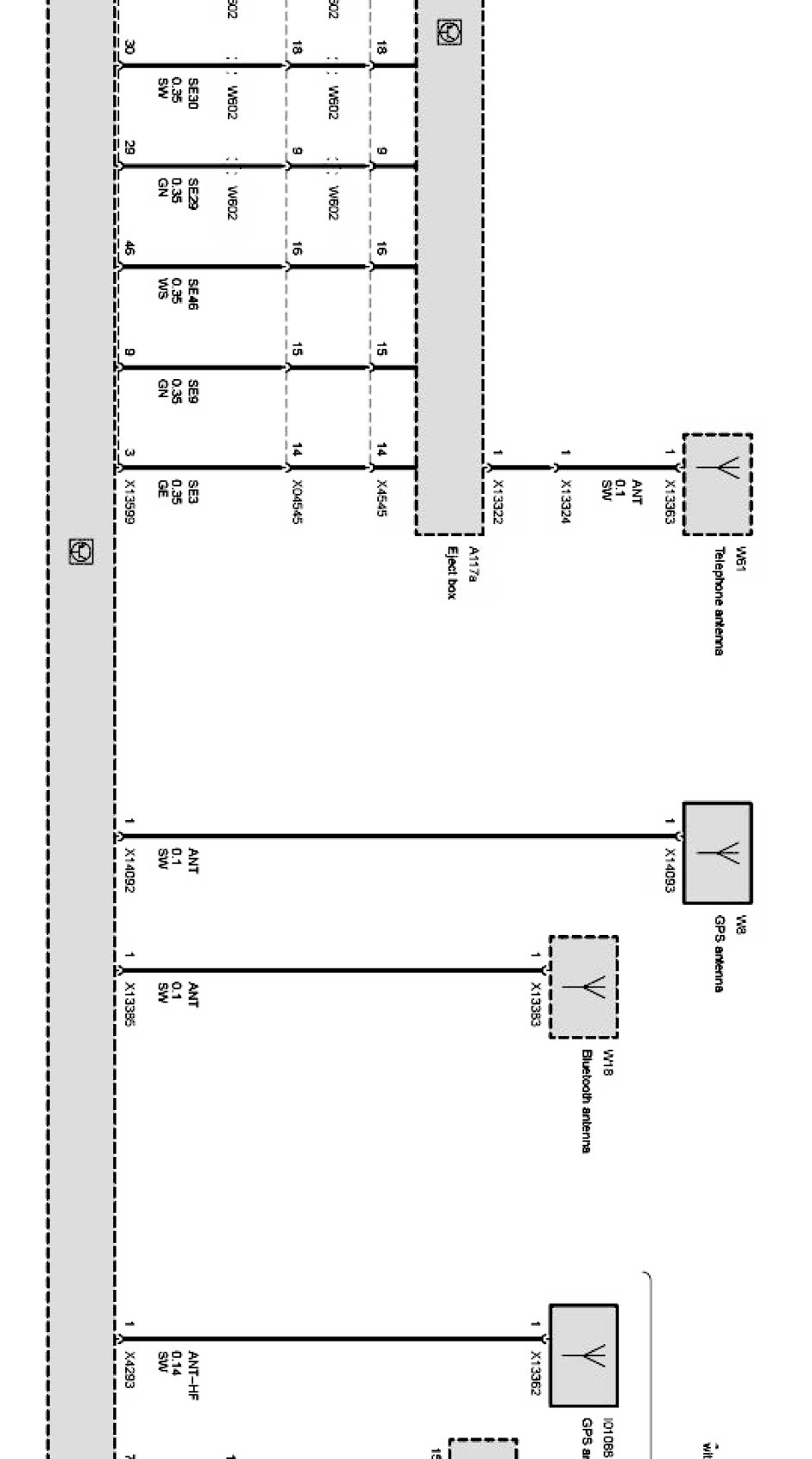

Cellular telephone Part 3:
