K Bus Function

Connector X10116, 10466 Part 1:

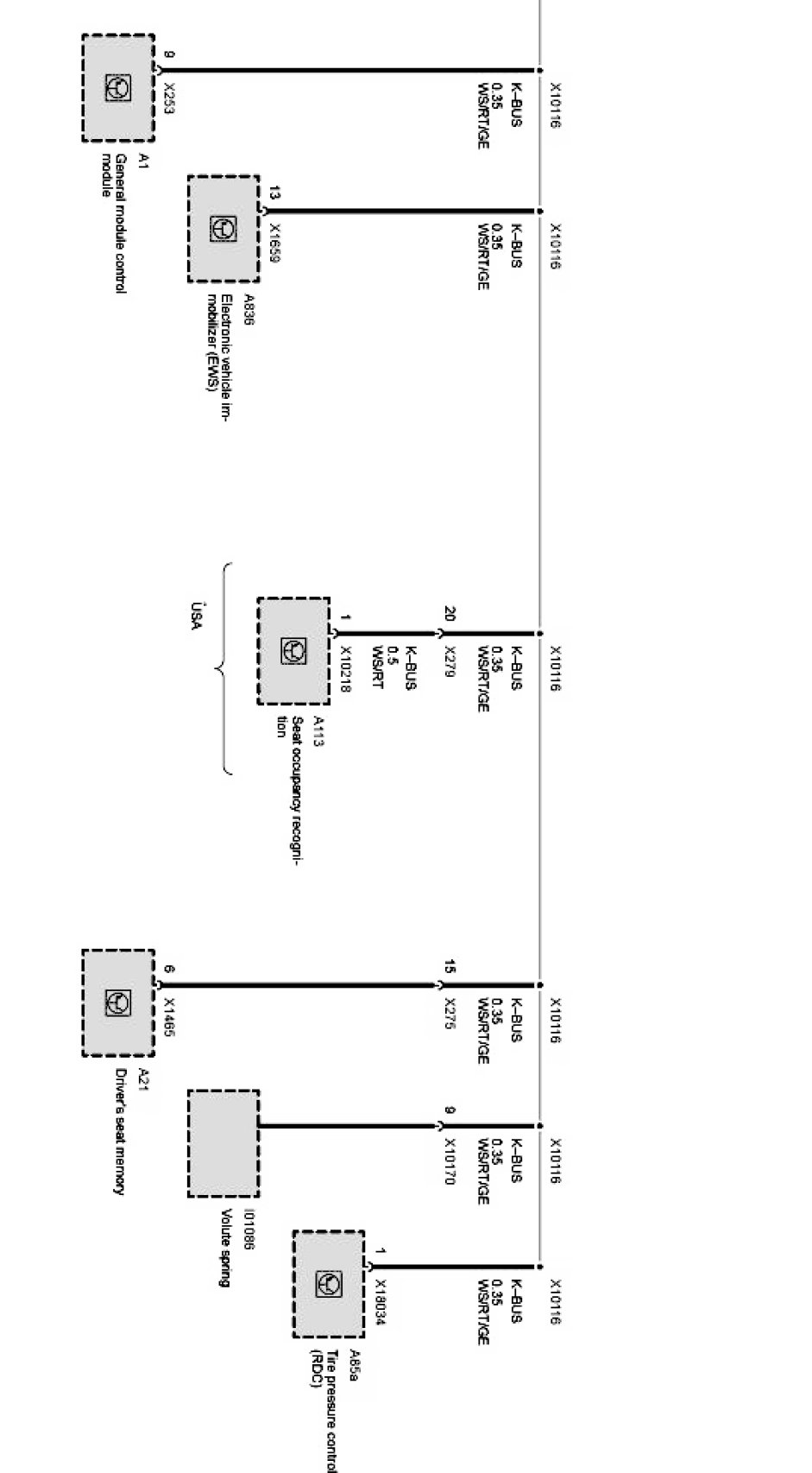

Connector X10116, 10466 Part 2:



Connector X10116, 10466 Part 3:
