A11A Heating/A/C System (X Series With IHKA Integrated Automatic Heating/Air Conditioning E83)
A11A Heating/A/C System (X Series With IHKA Integrated Automatic Heating/Air Conditioning E83)

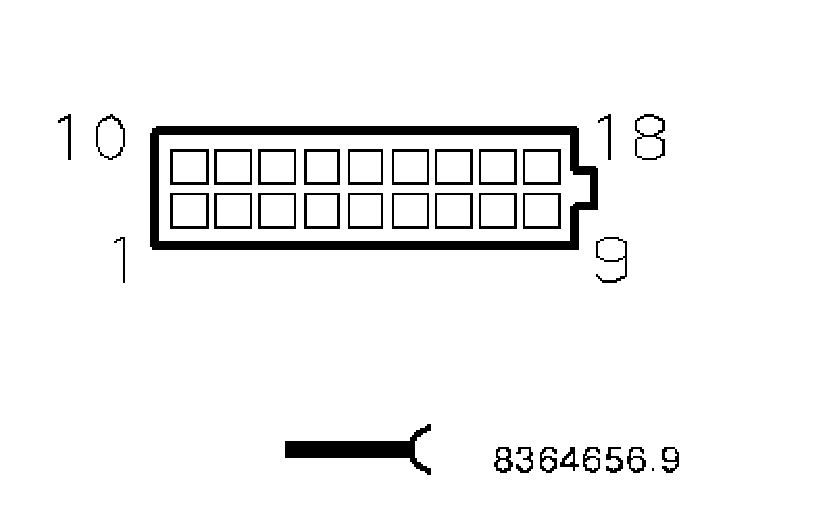

X610:

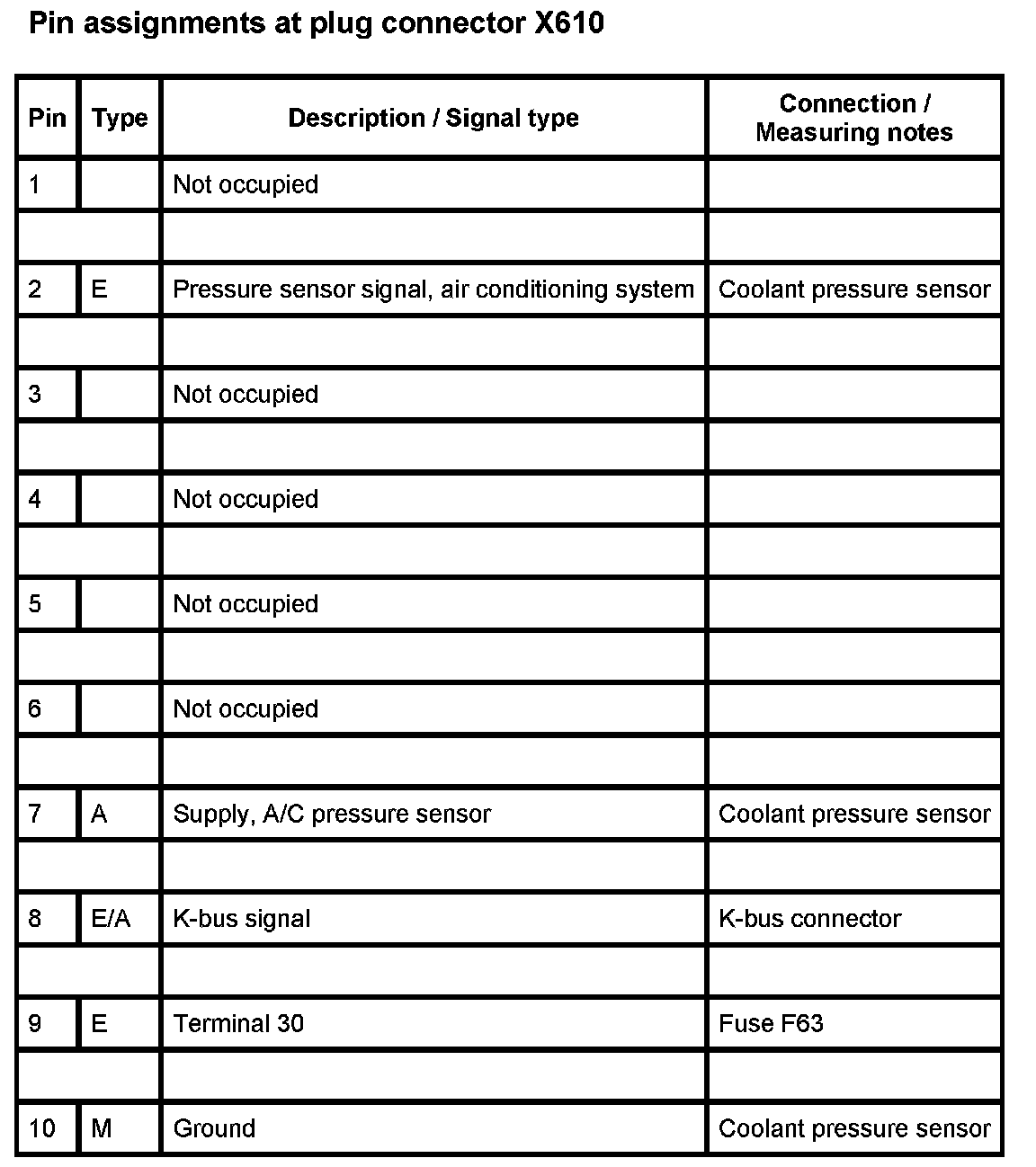

X610 - Part 1:

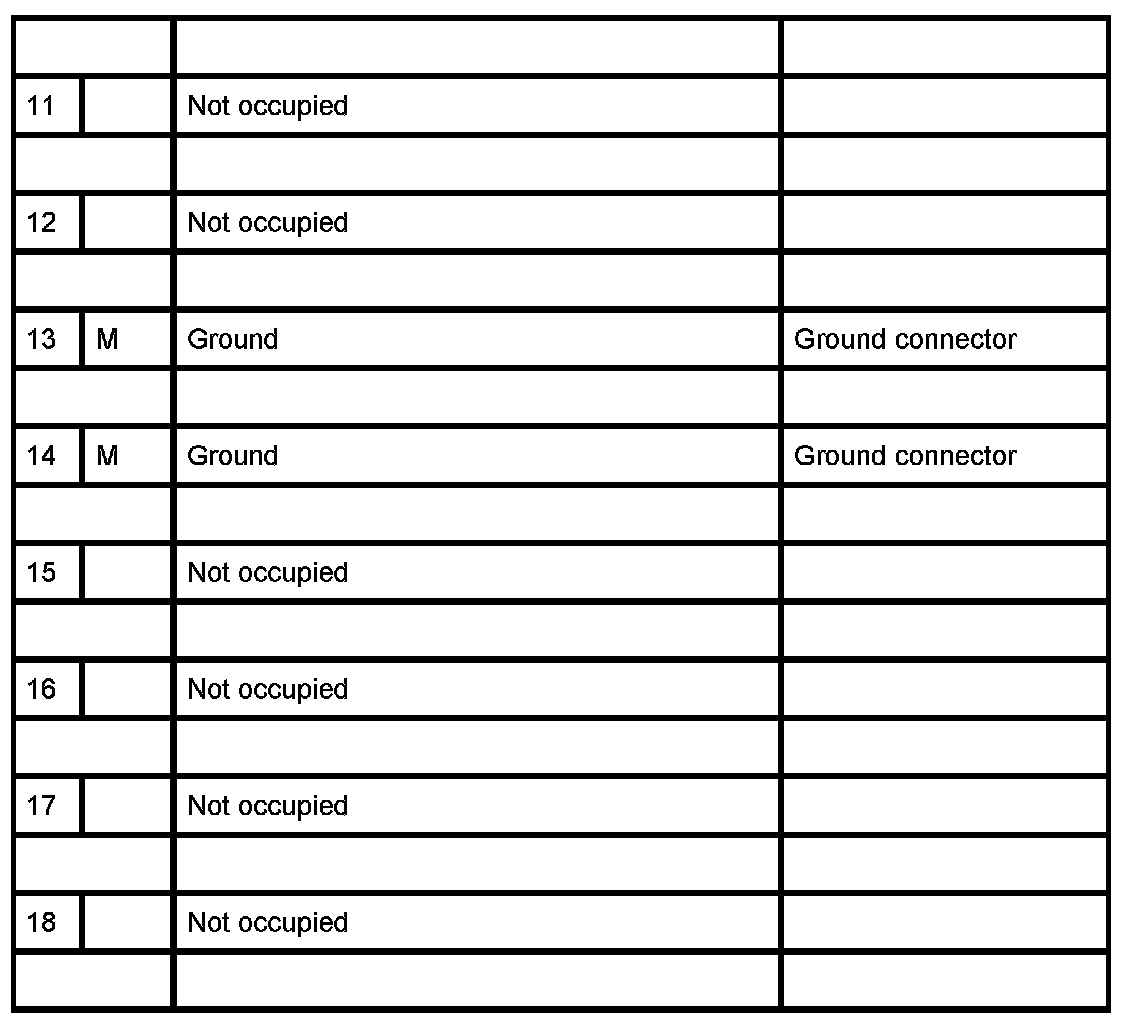

X610 - Part 2:
