Sunshade Mechanism Repair - E70, E91

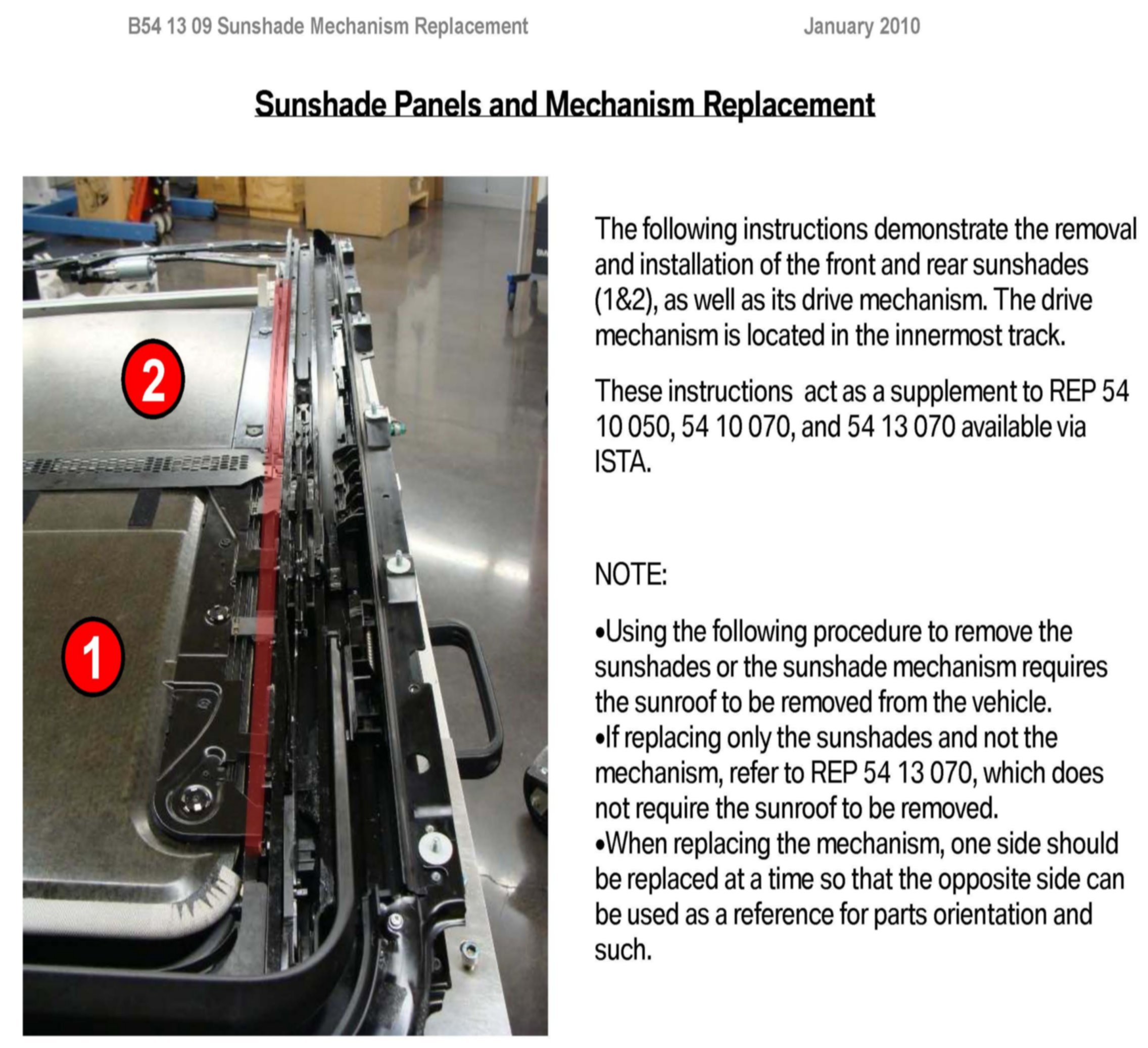

Sunshade Panels and Mechanism Replacement

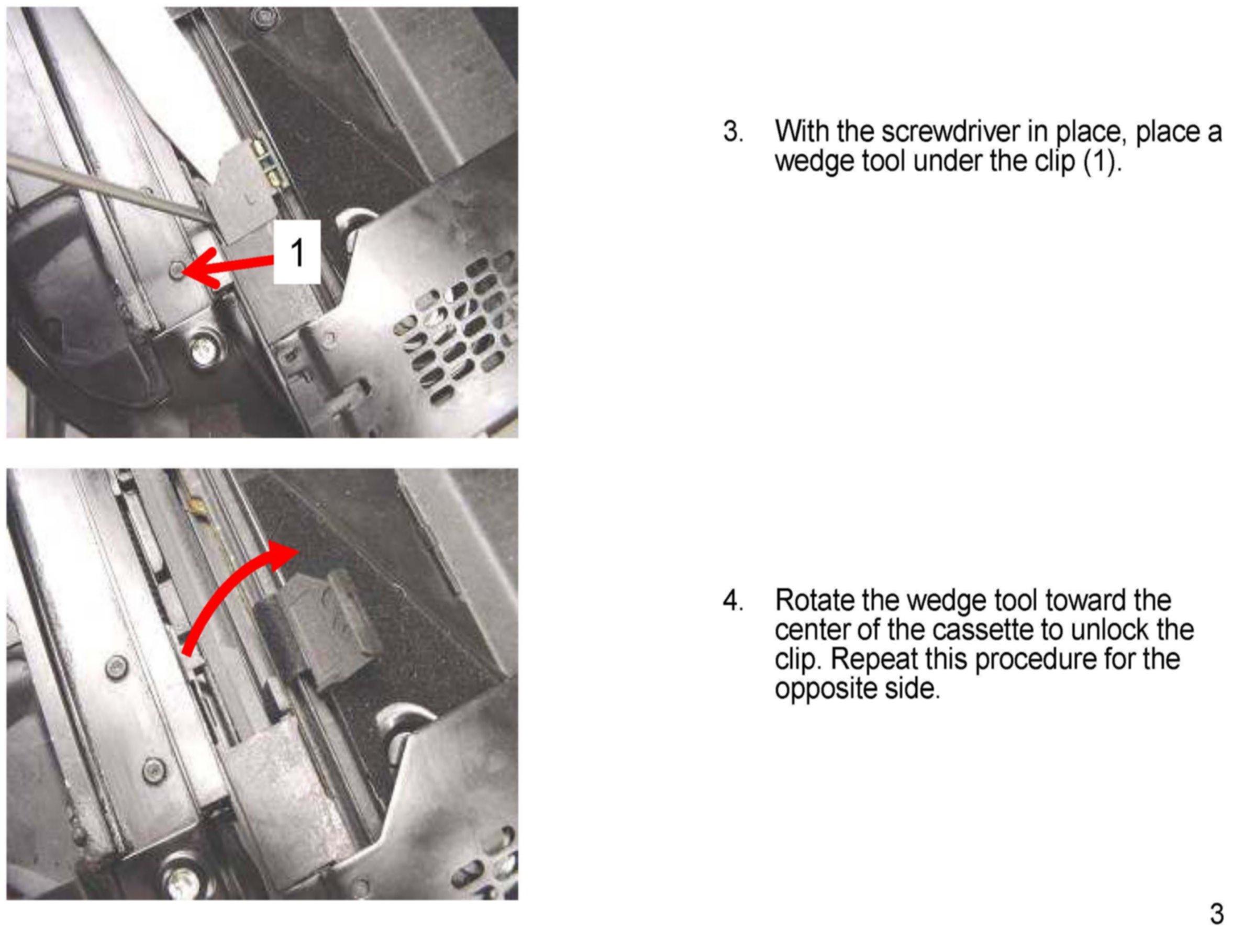

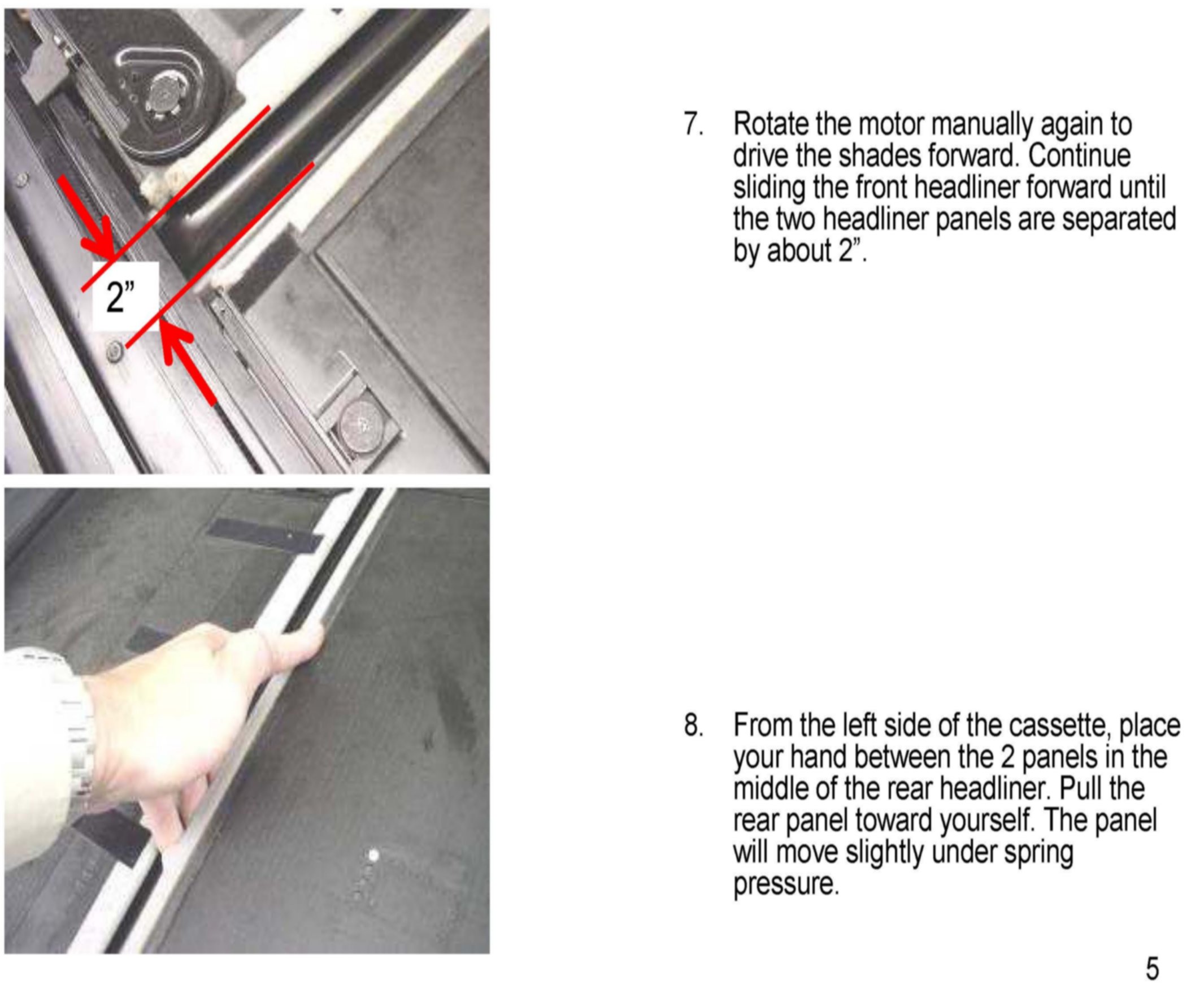

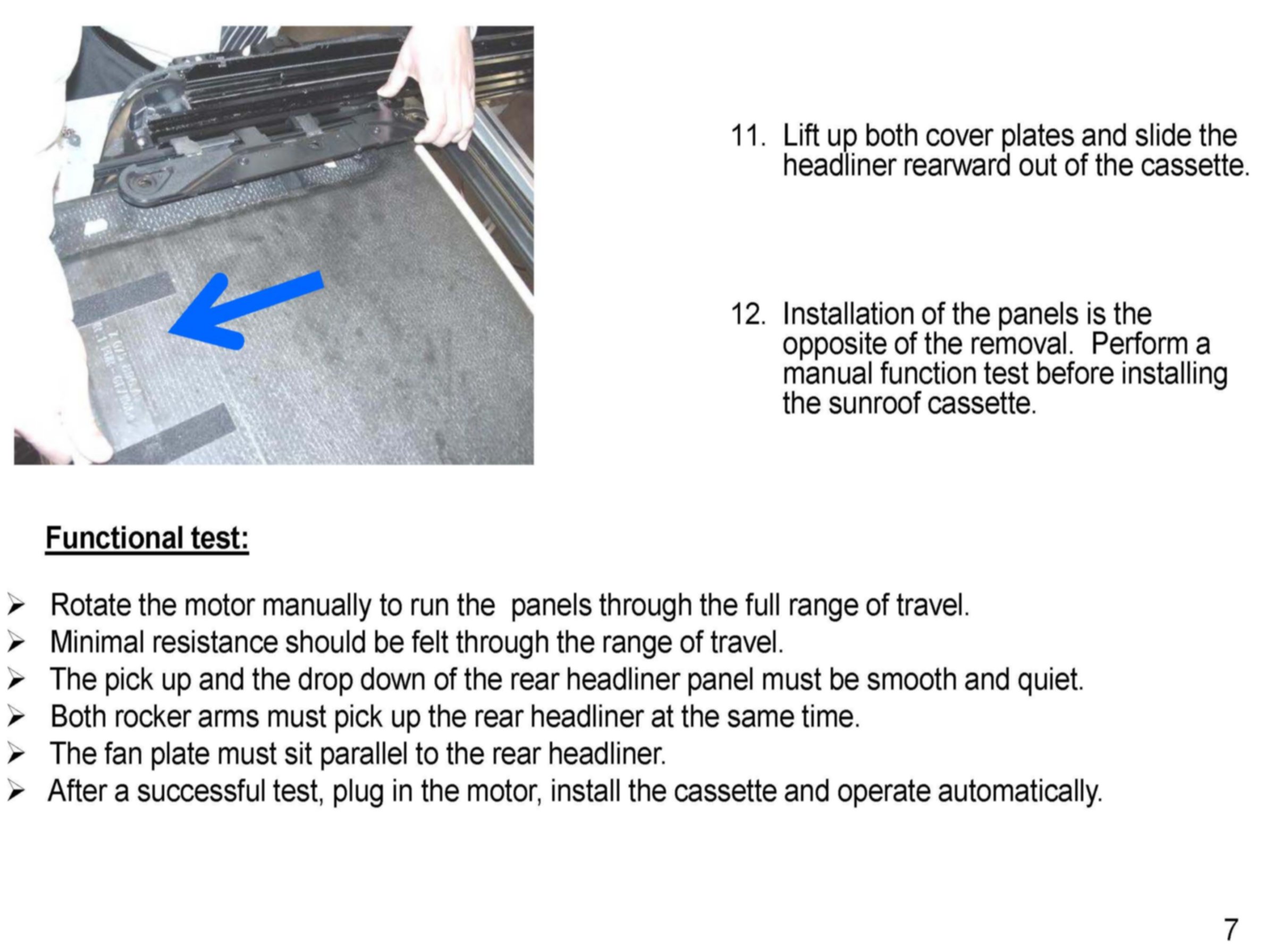

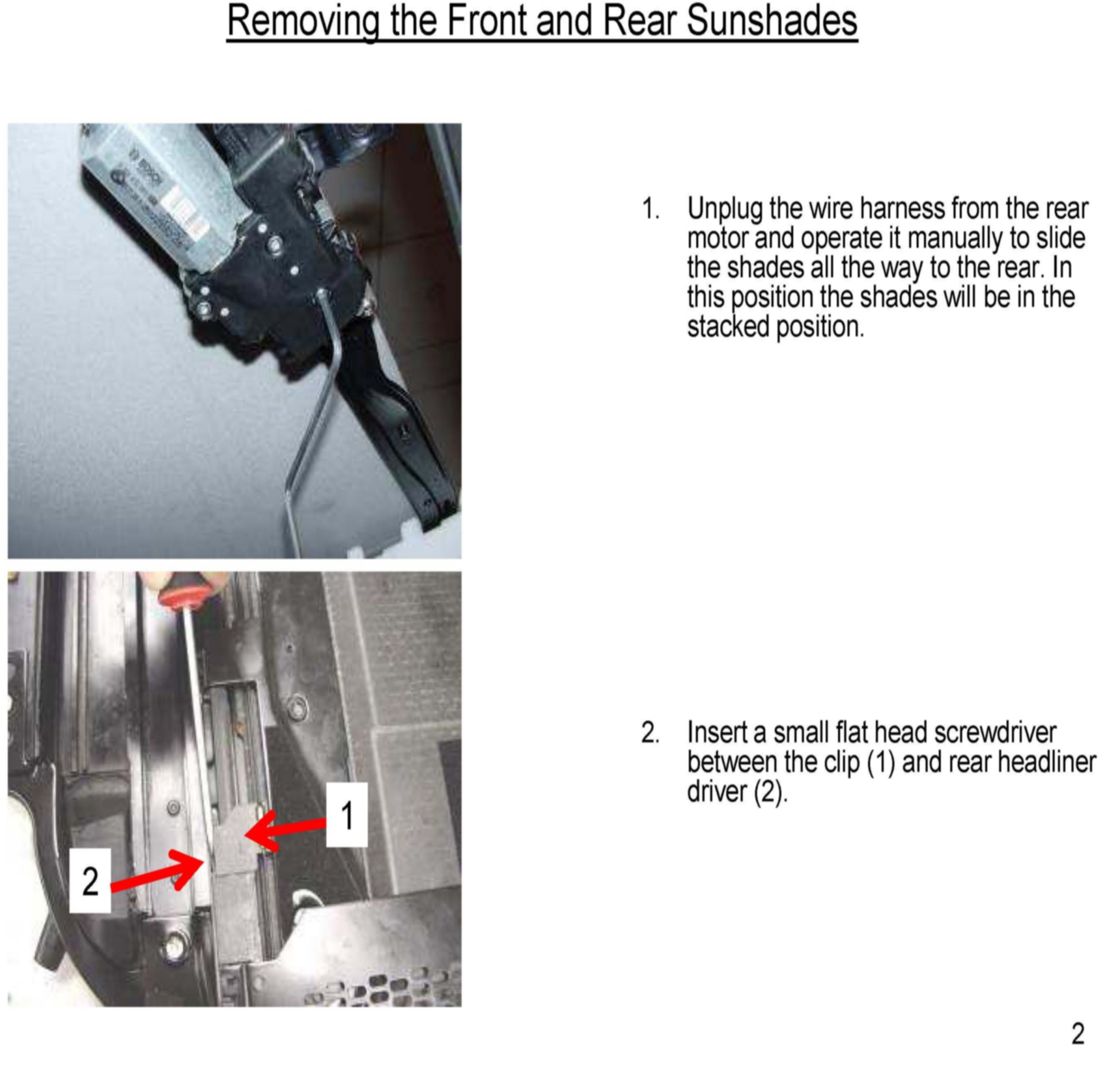

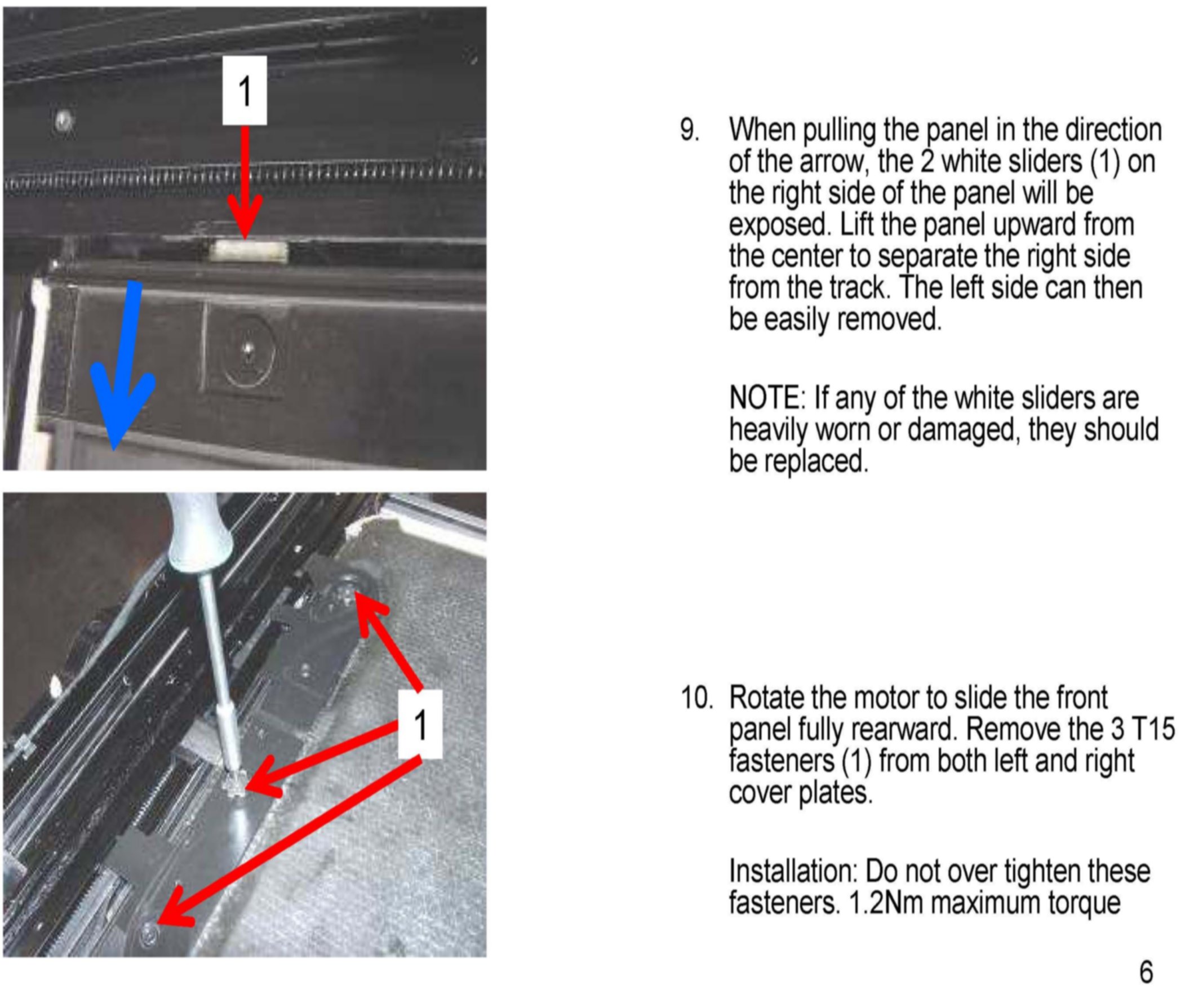

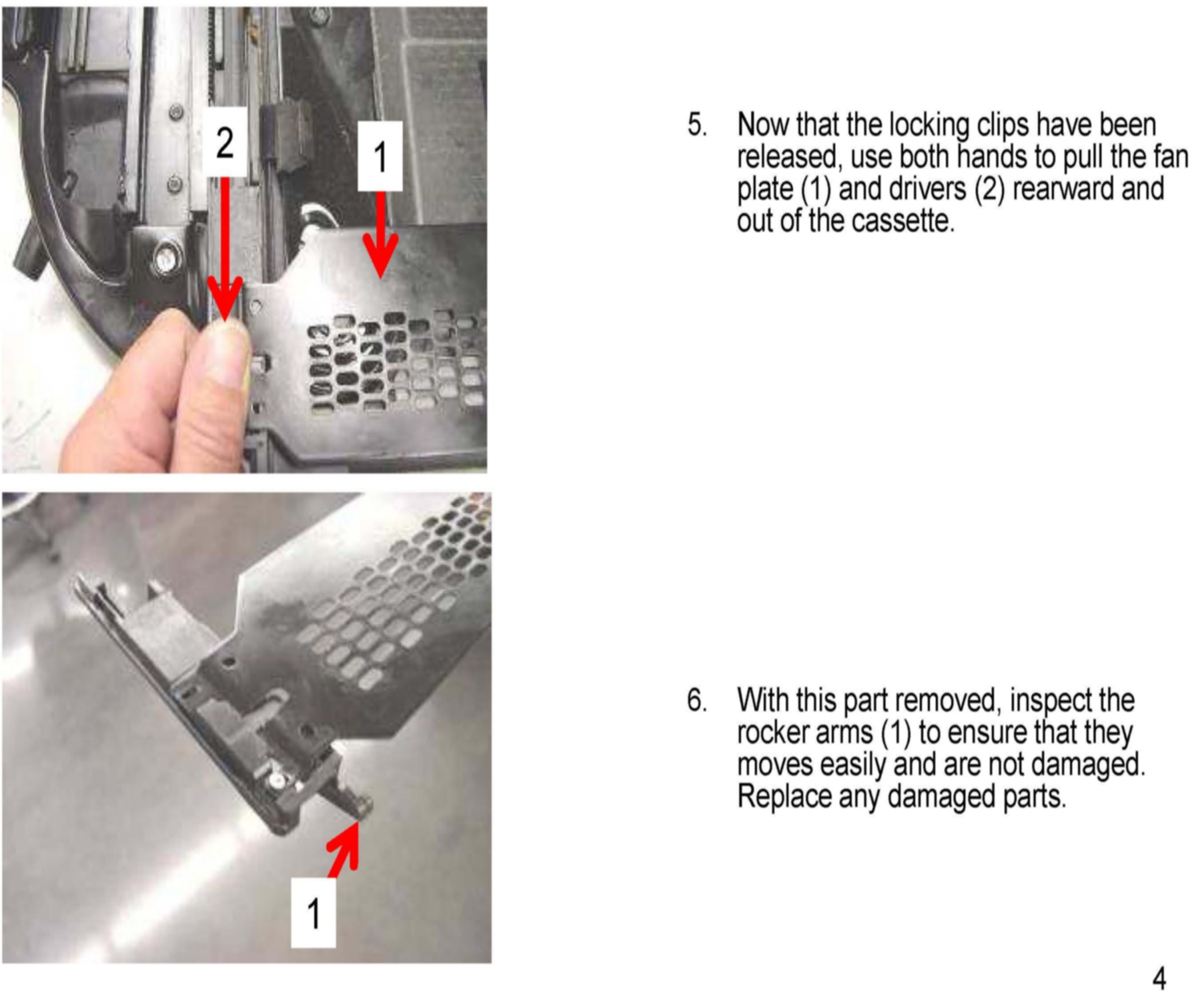

Removing the Front and Rear Sunshades

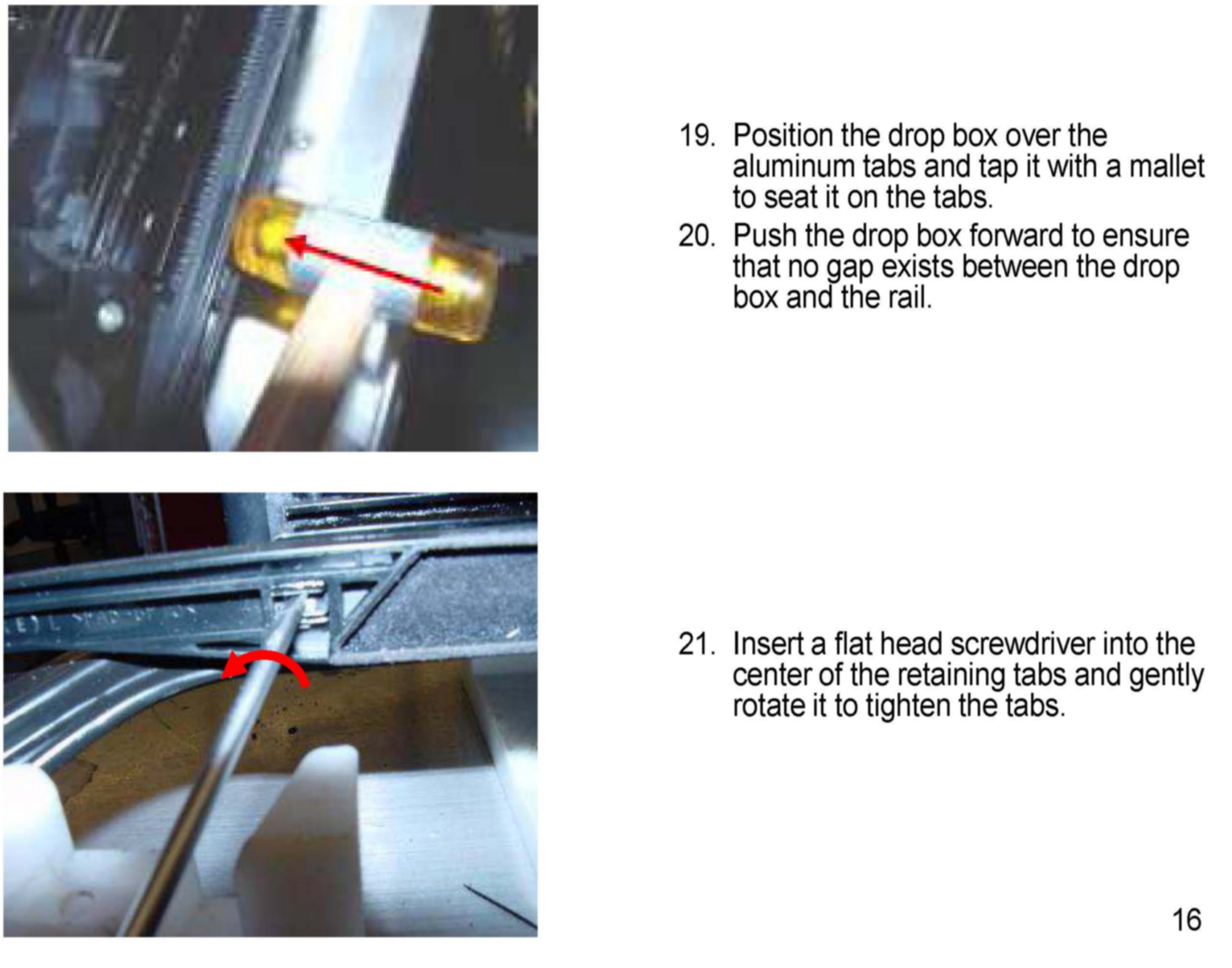

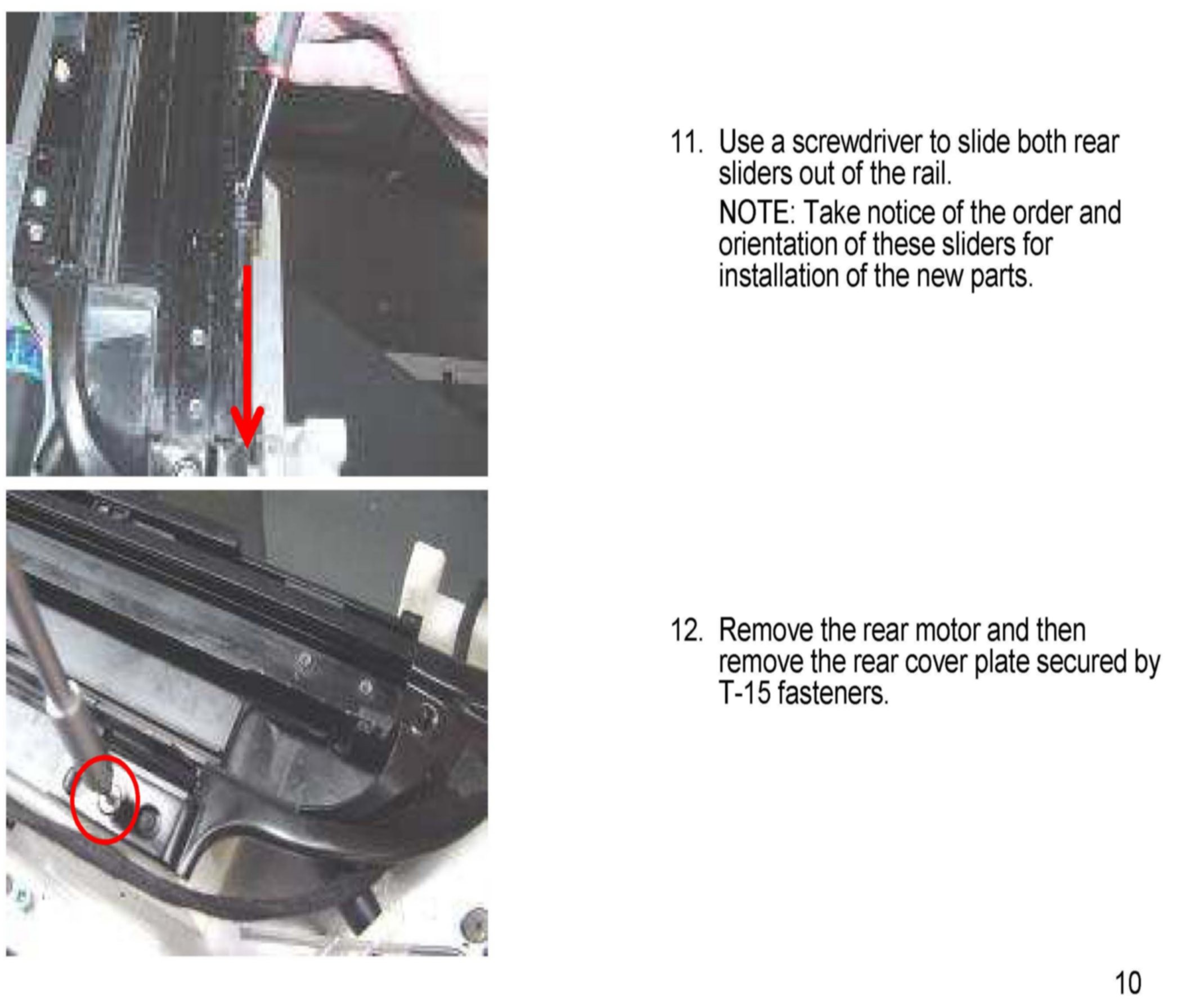

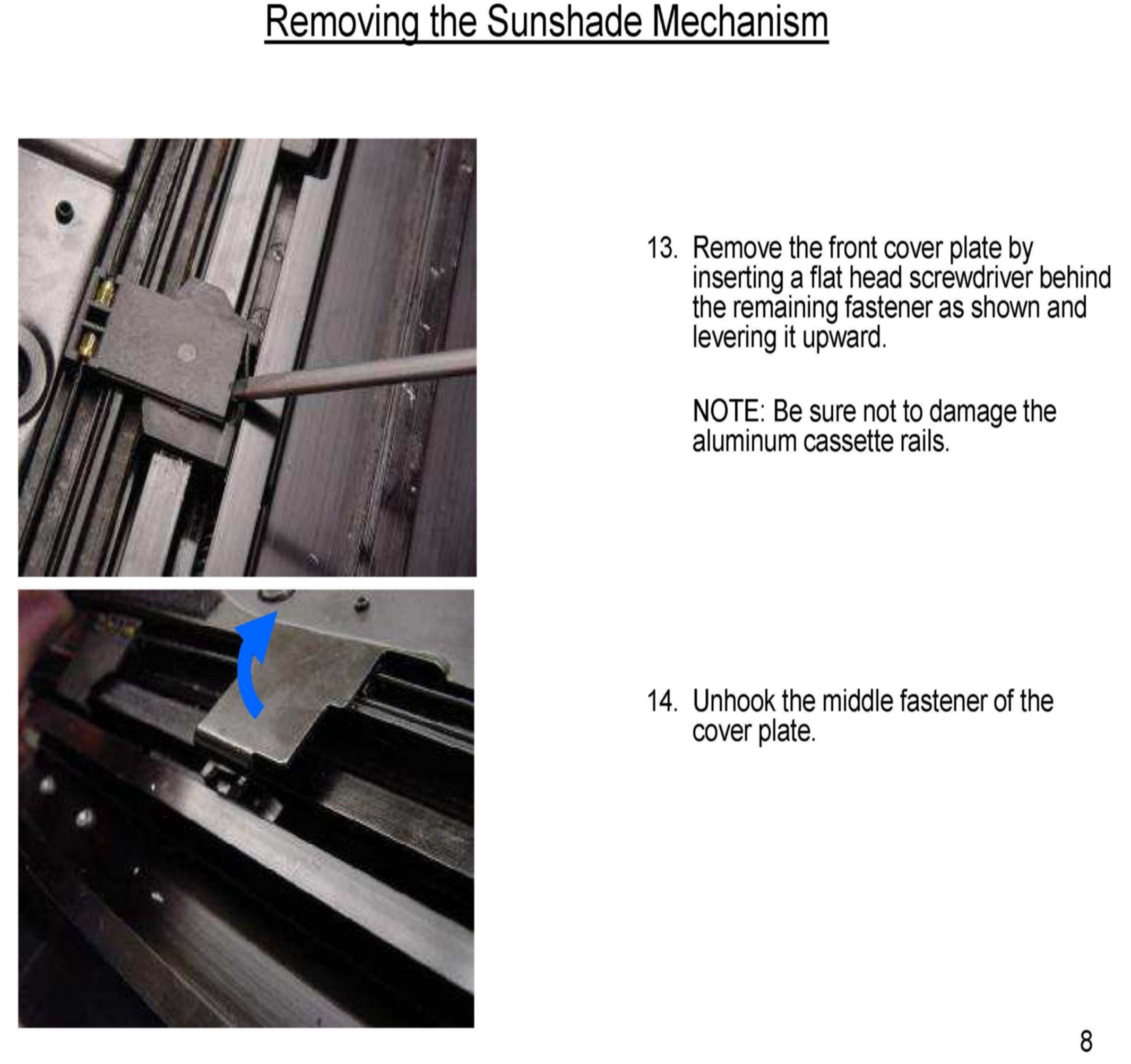

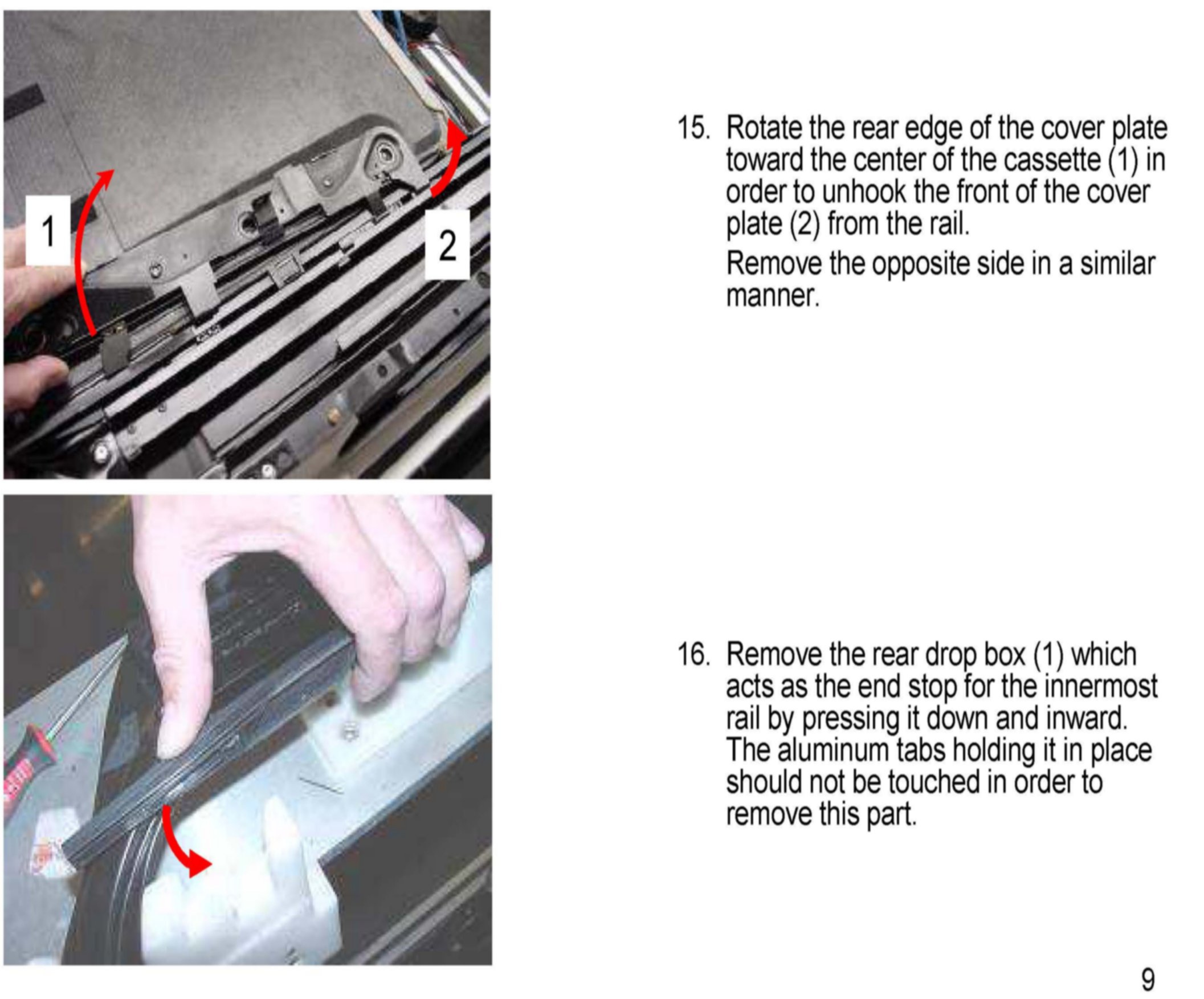

Removing the Sunshade Mechanism
