54 13 100 Removing and Installing/Replacing Drip Molding

54 13 100 - Removing and installing/replacing drip moulding





Necessary preliminary tasks:
- Remove glass slide/tilt sunroof lid at rear 54 10 175 Removing and Installing Rear Glass Slide/Tilt Sunroof Cover
- Remove glass slide/tilt sunroof lid at front 54 10 170 Removing and Installing Front Glass Slide/Tilt Sunroof Cover





Important!
Risk of damage to drip moulding carrier.

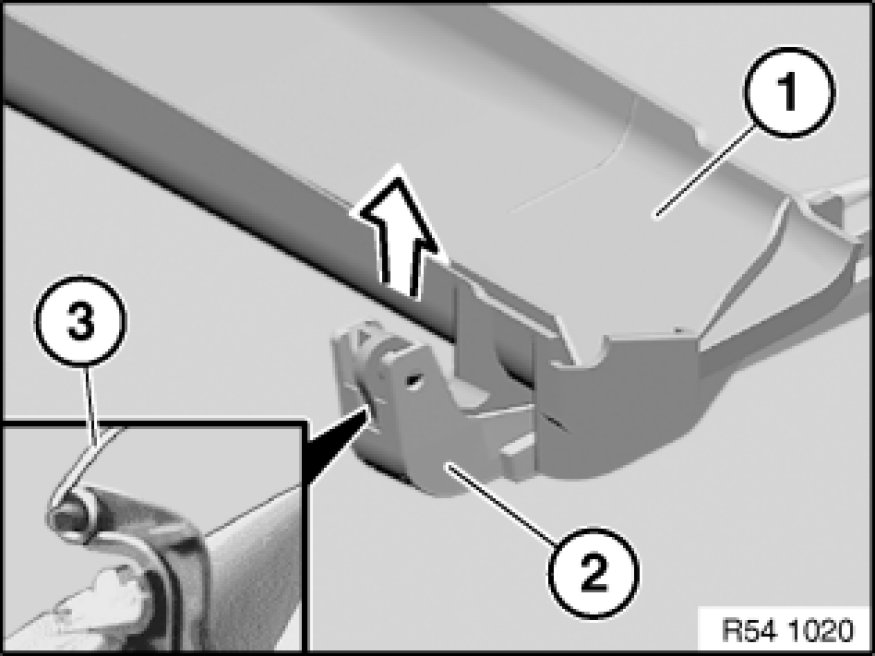

Carefully unclip drip moulding (1) upwards out of carrier (2).





Installation:

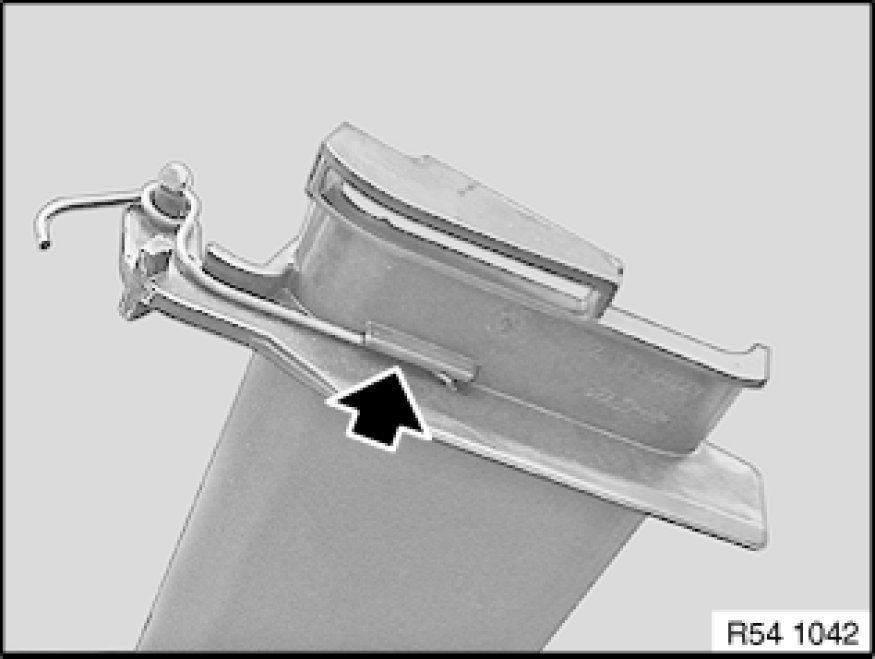

Attach spring (3) to drip moulding pivot point.
Make sure spring is correctly positioned in drip moulding.

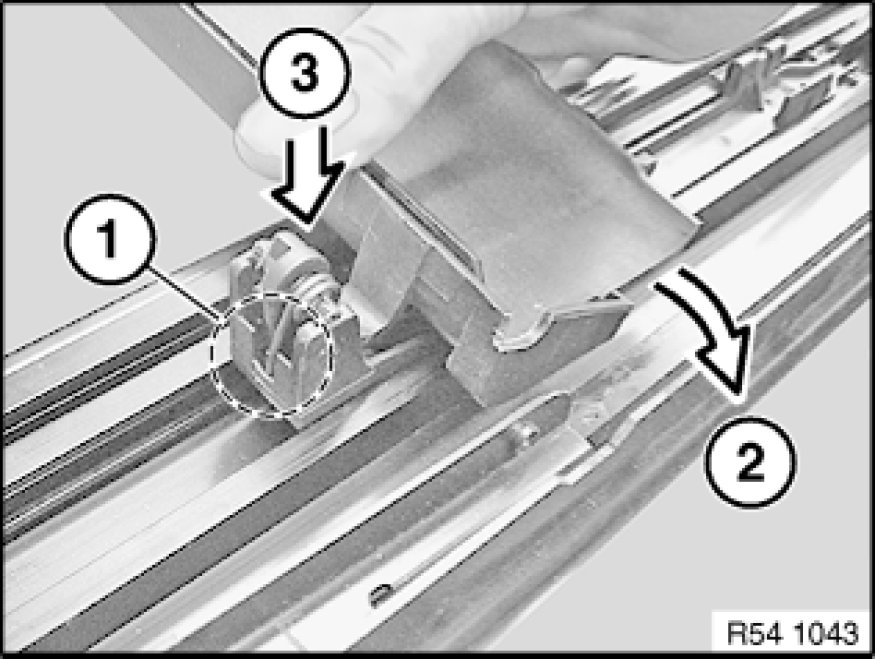

Installation:
Observe installation sequence:

1. - Suspend spring in drip moulding carrier
2. - Press drip moulding onto glass slide/tilt sunroof
3. - Clip pivot point (bearing) of drip moulding into carrier
Check drip moulding for spring tension.
