Replacing Two Rubber Mounts for Rear Axle Carrier

33 33 101 - Replacing two rubber mounts for rear axle carrier





Special tools required:
- 33 3 314
- 33 3 315
- 33 3 371 33 3 370 Set of Tools
- 33 3 372 33 3 370 Set of Tools
- 33 3 373 33 3 370 Set of Tools
- 33 4 140 33 4 140 Universal Support
- 33 4 142 33 4 140 Universal Support
- 33 4 145 33 4 140 Universal Support
- 33 4 147 33 4 140 Universal Support
- 33 4 155 33 4 150 Removal and Installation Tool





Warning!
Danger of explosion!

Do not point air jet from hot air blower at fuel tank!





Necessary preliminary tasks:
- Lower rear axle carrier Lowering/Raising Rear Axle Carrier

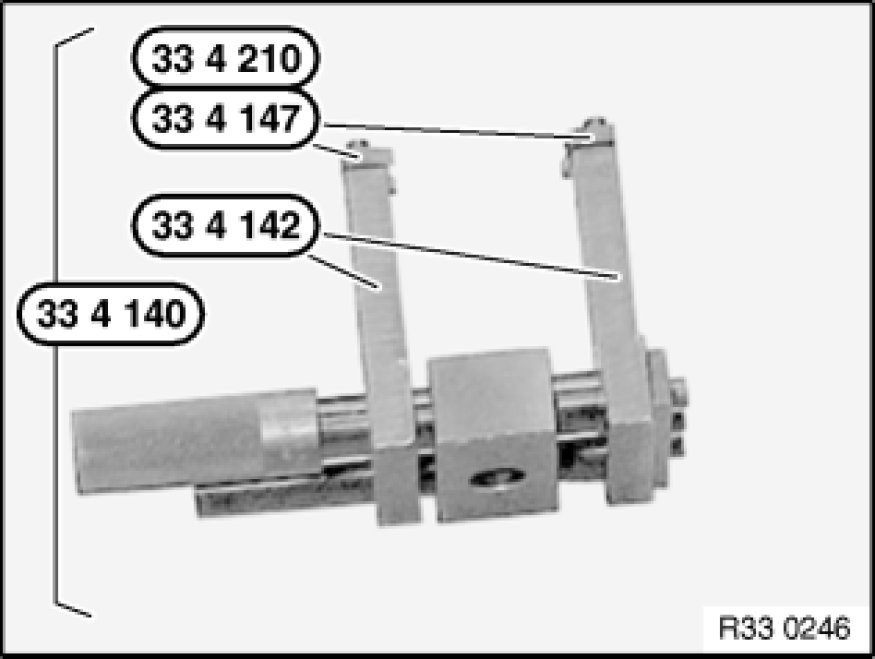

Assemble special tool 33 4 140 33 4 140 Universal Support with 33 4 142 33 4 140 Universal Support and 33 4 147 33 4 140 Universal Support.

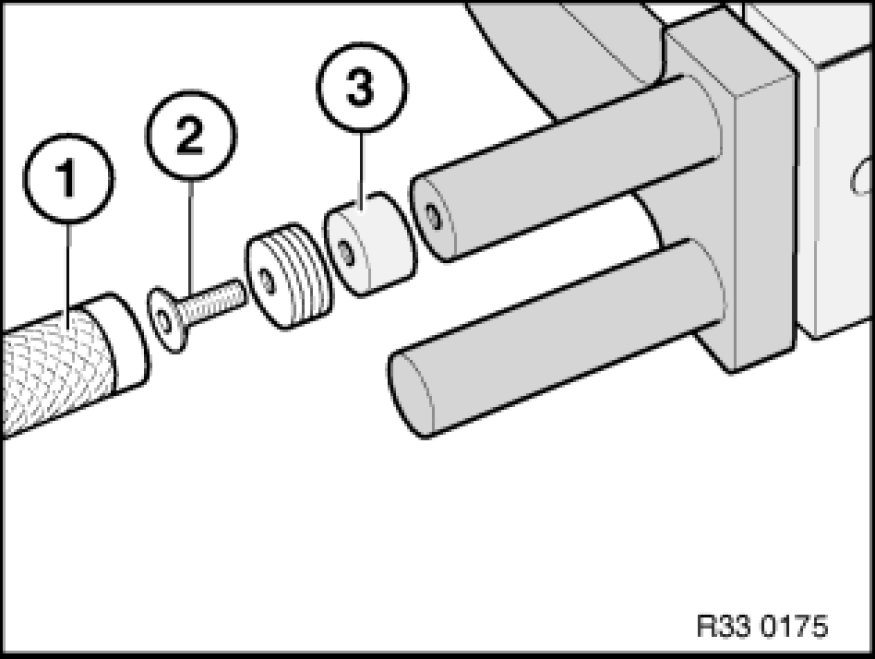

Unscrew feed handle (1). If necessary, mount extension piece (3) on special tool 33 4 145 33 4 140 Universal Support with new screw (2).





Position special tools 33 4 140 33 4 140 Universal Support, 33 4 155 33 4 150 Removal and Installation Tool, 33 3 371 33 3 370 Set of Tools, 33 3 372 33 3 370 Set of Tools and nut (1) on openings of rubber mount.

Note:
Ensure it is correctly supported on bushing of rear axle carrier.

Using a hot air blower, heat bearing bushing at max. 600 °C outlet temperature for approx. 2 minutes.

Pull out rubber mount by turning special tool 33 4 155 33 4 150 Removal and Installation Tool.





Coat rubber mount with Circo Light anti-friction agent.

Important!

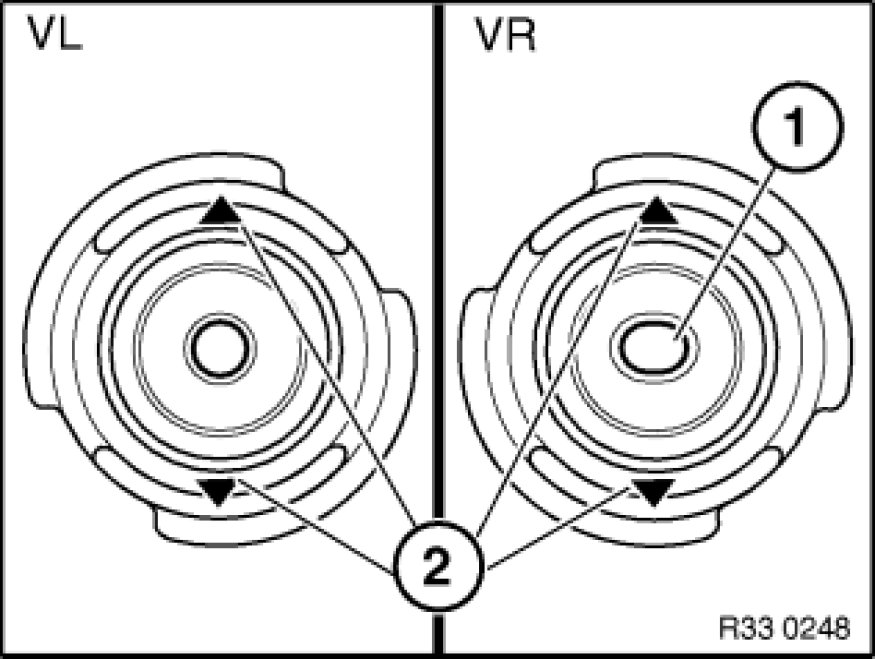

Front rubber mounts differ:

Rubber mount VR = front right with elongated hole (1)

Rubber mount VL = front left

When rubber mount is fitted, arrows (2) must point down longitudinal axis of vehicle.

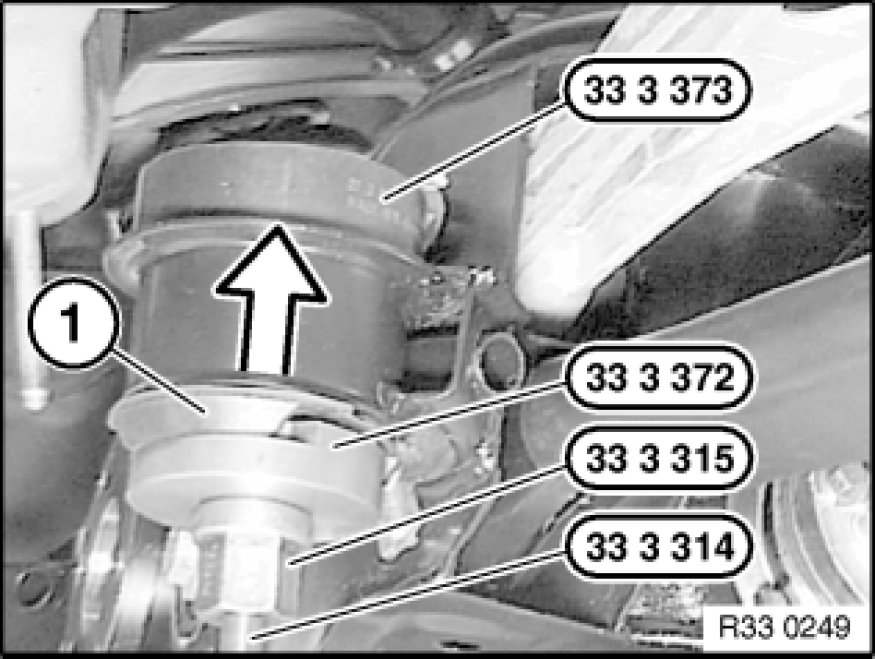

Draw in rubber mount with special tools 33 3 314, 33 3 315, 33 3 372 33 3 370 Set of Tools and 33 3 373 33 3 370 Set of Tools as far as it will go.





After installation:

- Check seating of coil spring with spring pads, correct if necessary
- Perform chassis alignment check
