Replacing Actuator Drive of Defrosting Flaps

64 11 845 - Replacing actuator drive of defrosting flaps





Necessary preliminary tasks:
- Remove servodrive for ventilation flaps Replacing Actuator Drive of Ventilation Flaps

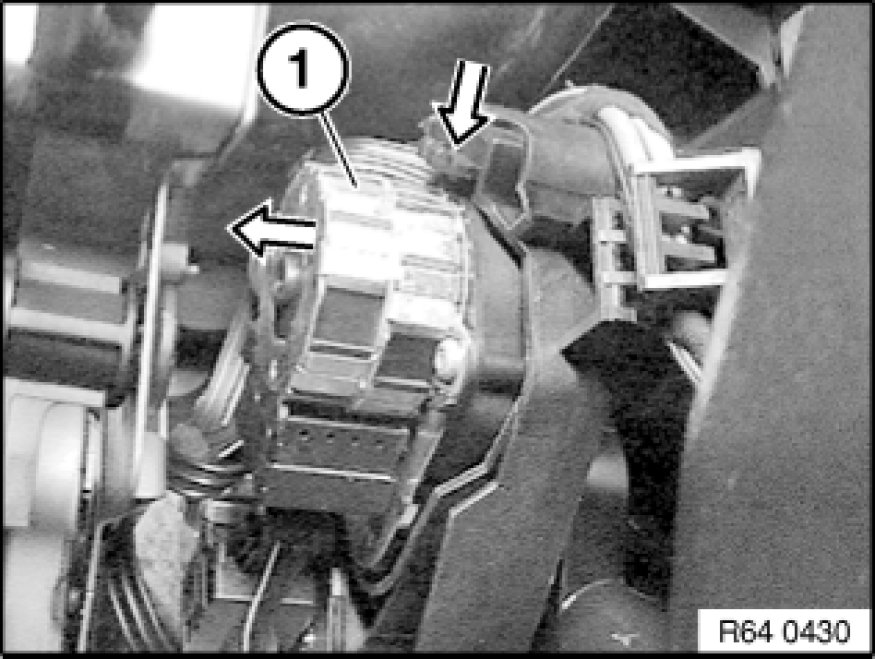

Unlock actuator drive (1) and feed out towards side. Disconnect plug connection.





Installation Note:
If necessary, align shaft for defrosting flaps and drive (see illustration).
