Passenger's Seat Adjustment (X Series_X3-E83 With Comfort Seat)
Passenger's Seat Adjustment (X Series_X3-E83 With Comfort Seat)

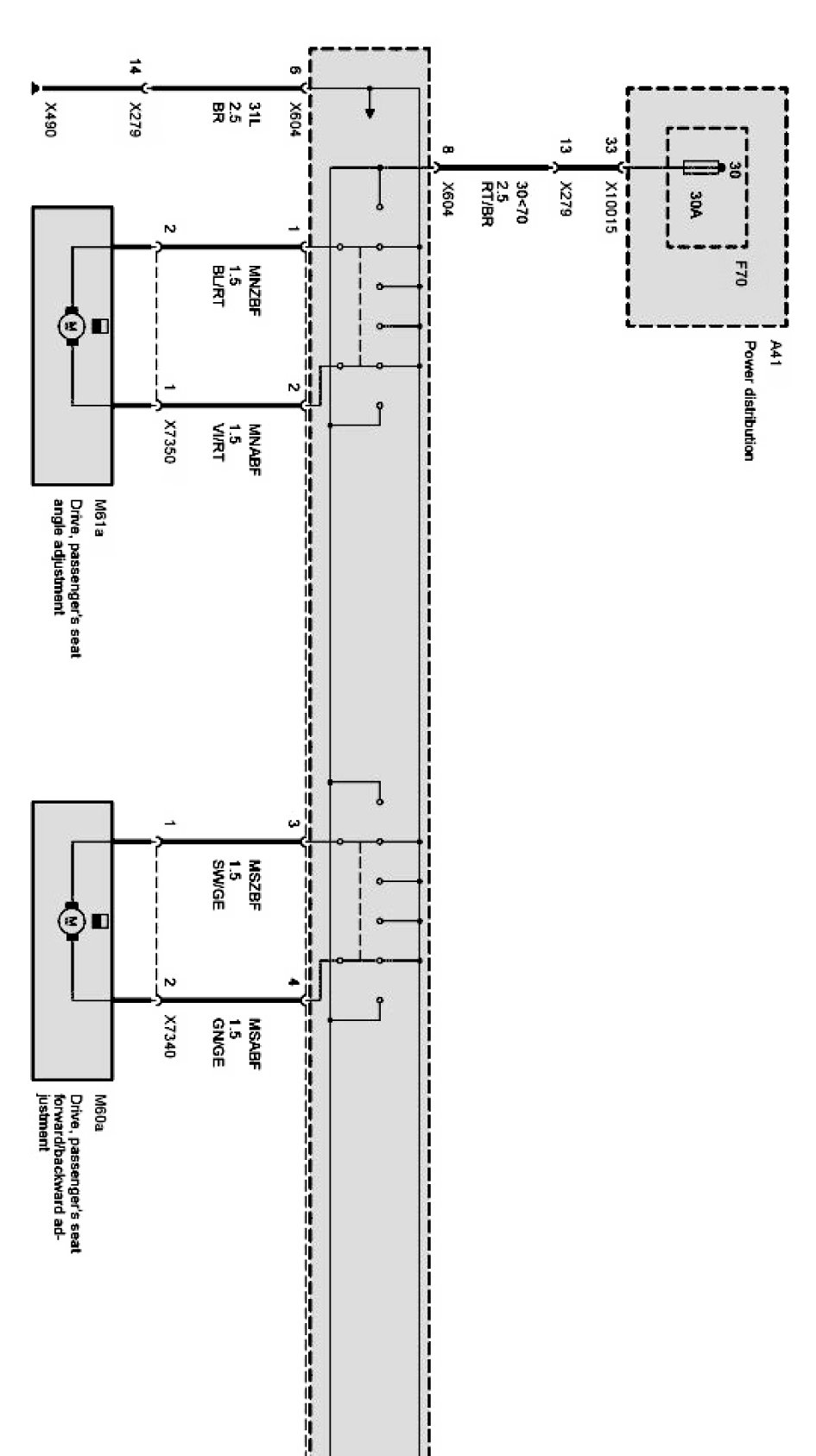

Passenger's seat adjustment Part 1:

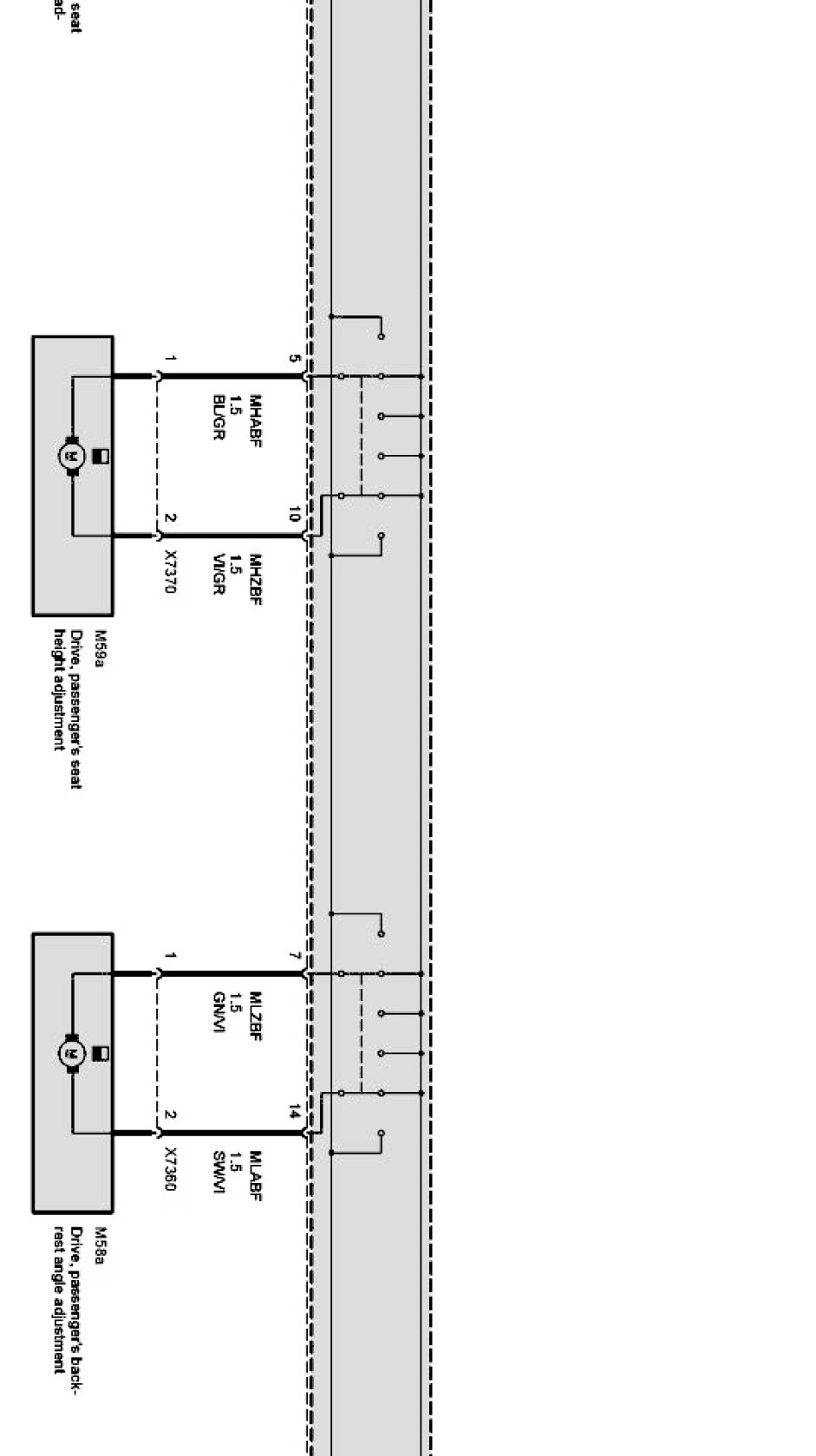

Passenger's seat adjustment Part 2:

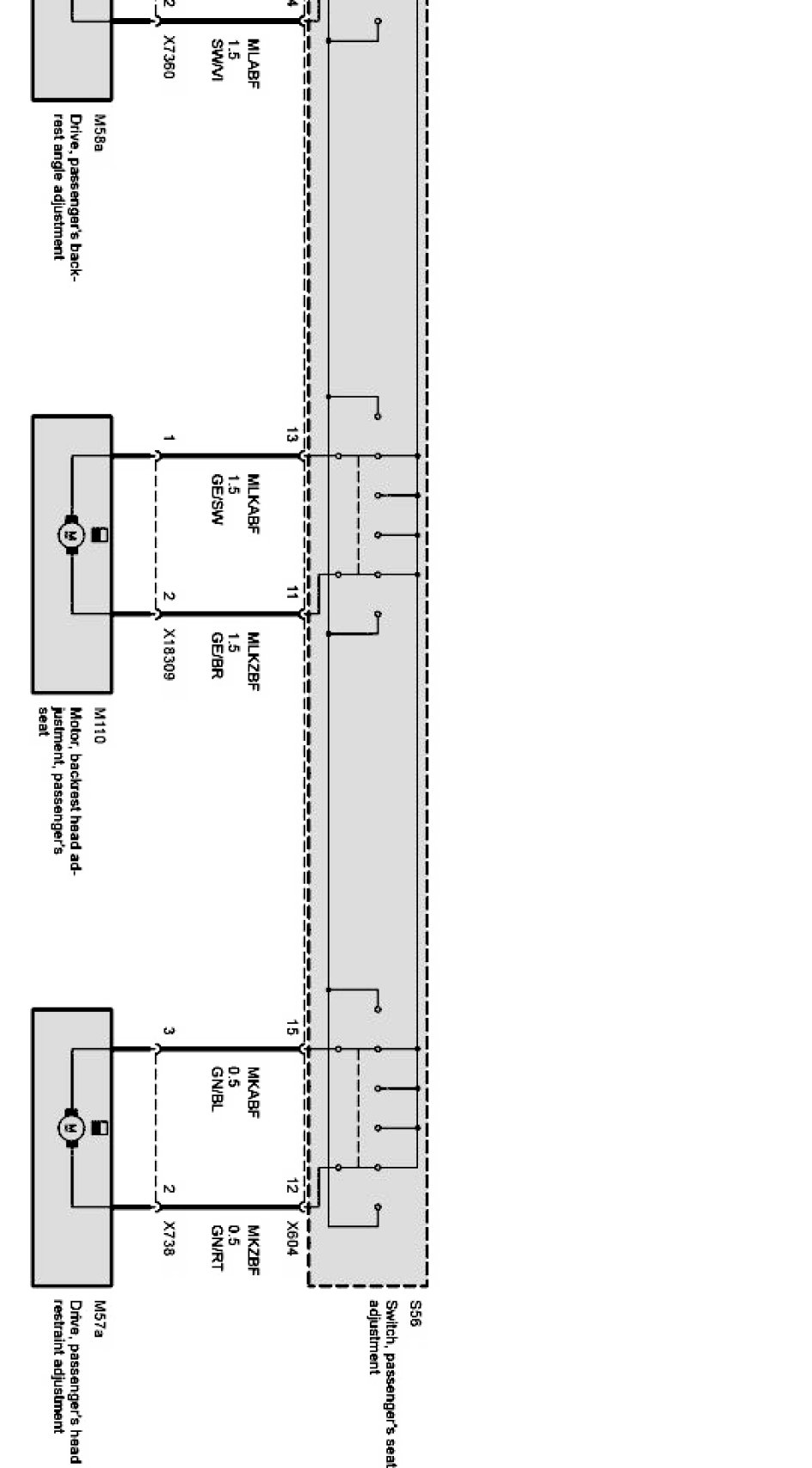

Passenger's seat adjustment Part 3:
