Home >> BMW >> 2008 >> X3 3.0i (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Multifunction Steering Wheel (MFL) >> Steering Wheel Heater

Steering Wheel Heater

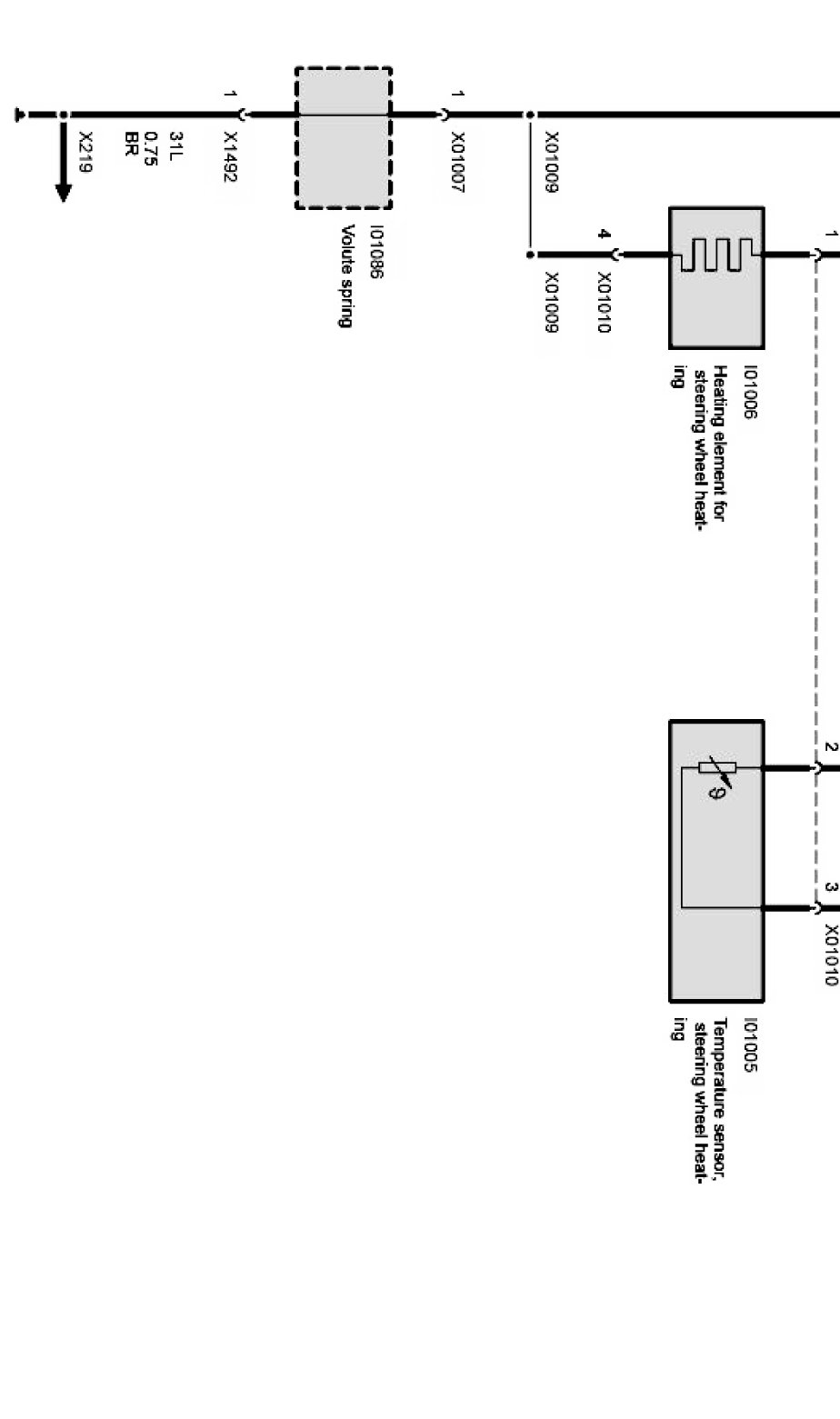

steering wheel heating Part 1:

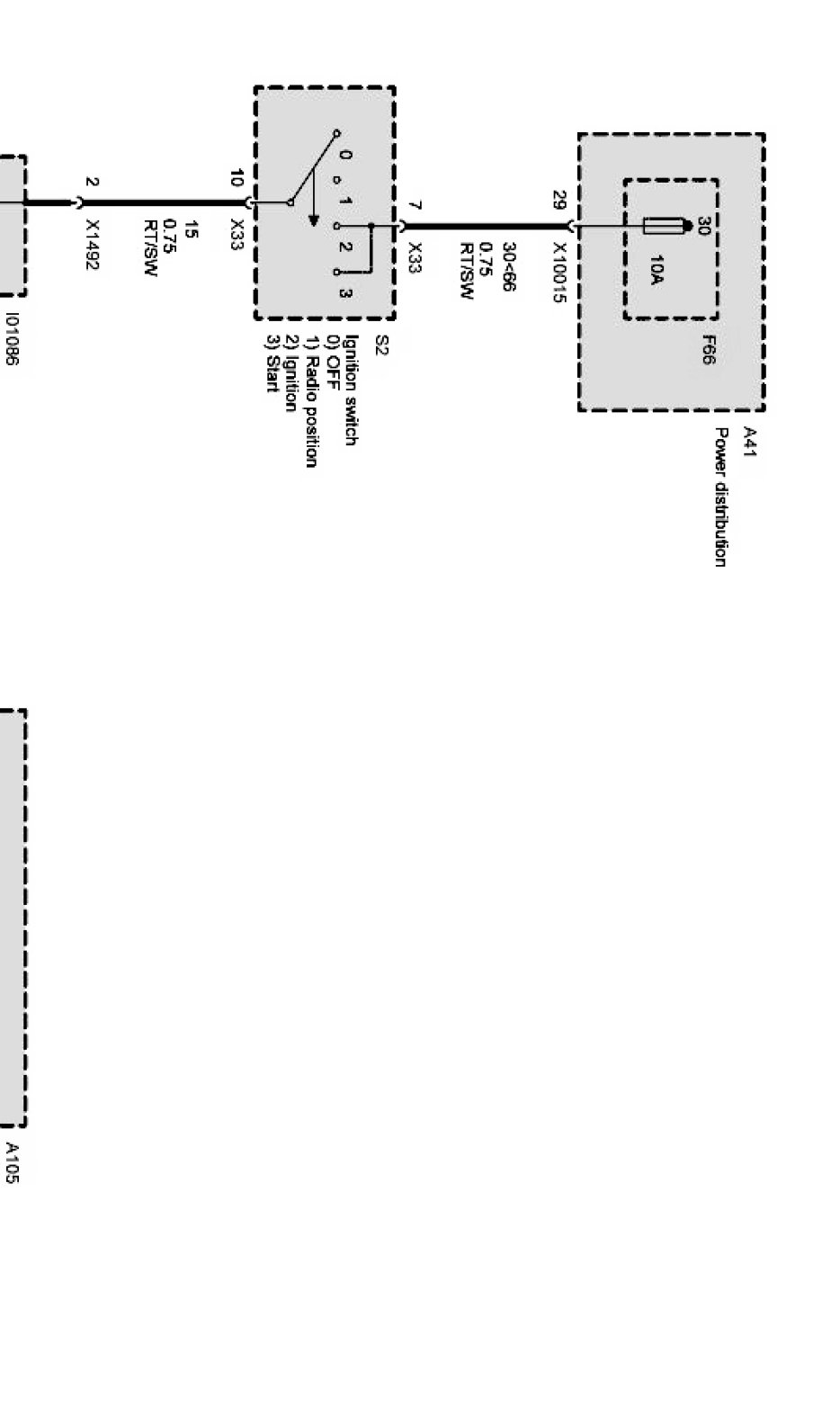

steering wheel heating Part 2:

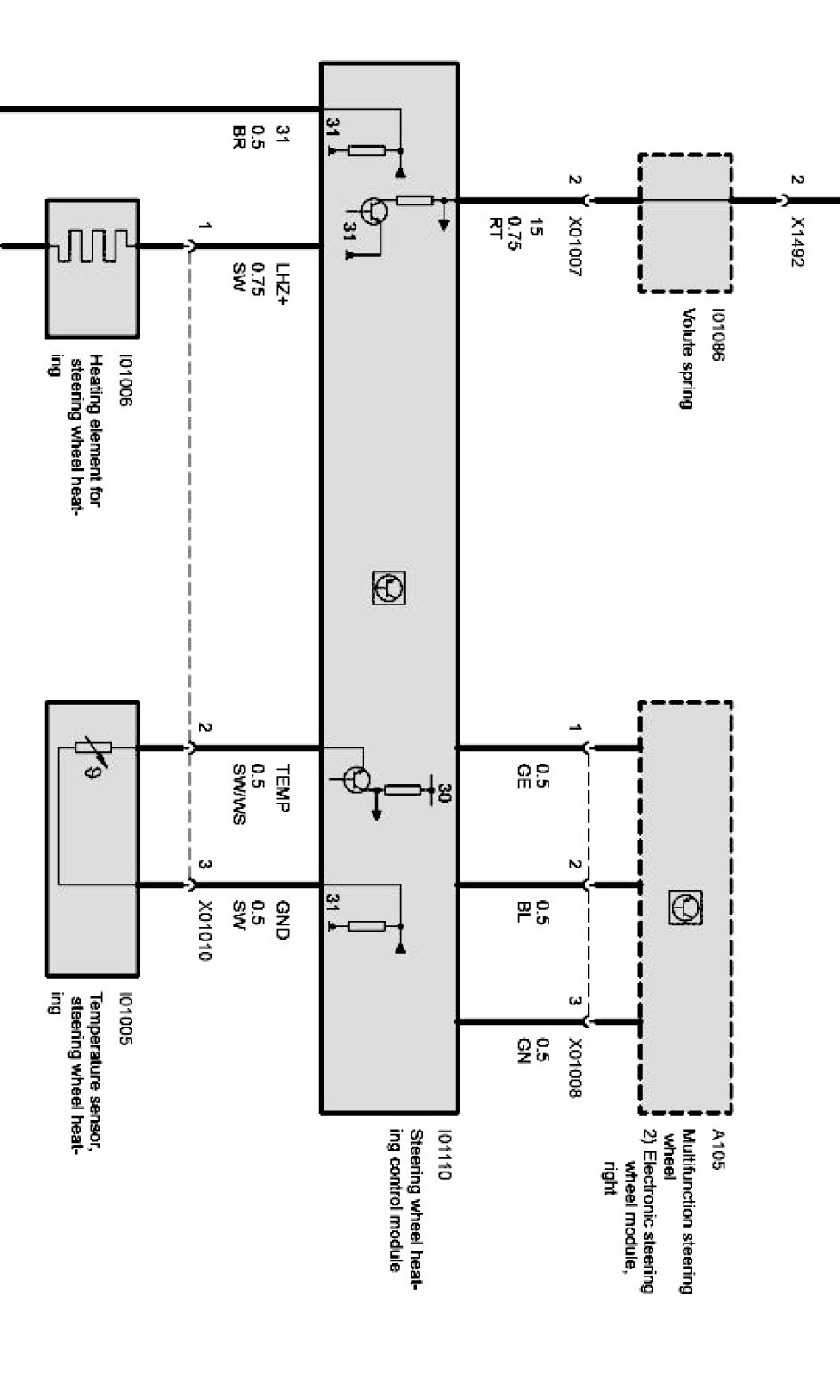

steering wheel heating Part 3:
