Home >> BMW >> 2008 >> X3 3.0i (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Sound Output >> Speaker (Top Hifi System E83 (10-Speaker))

Speaker (Top Hifi System E83 (10-Speaker))

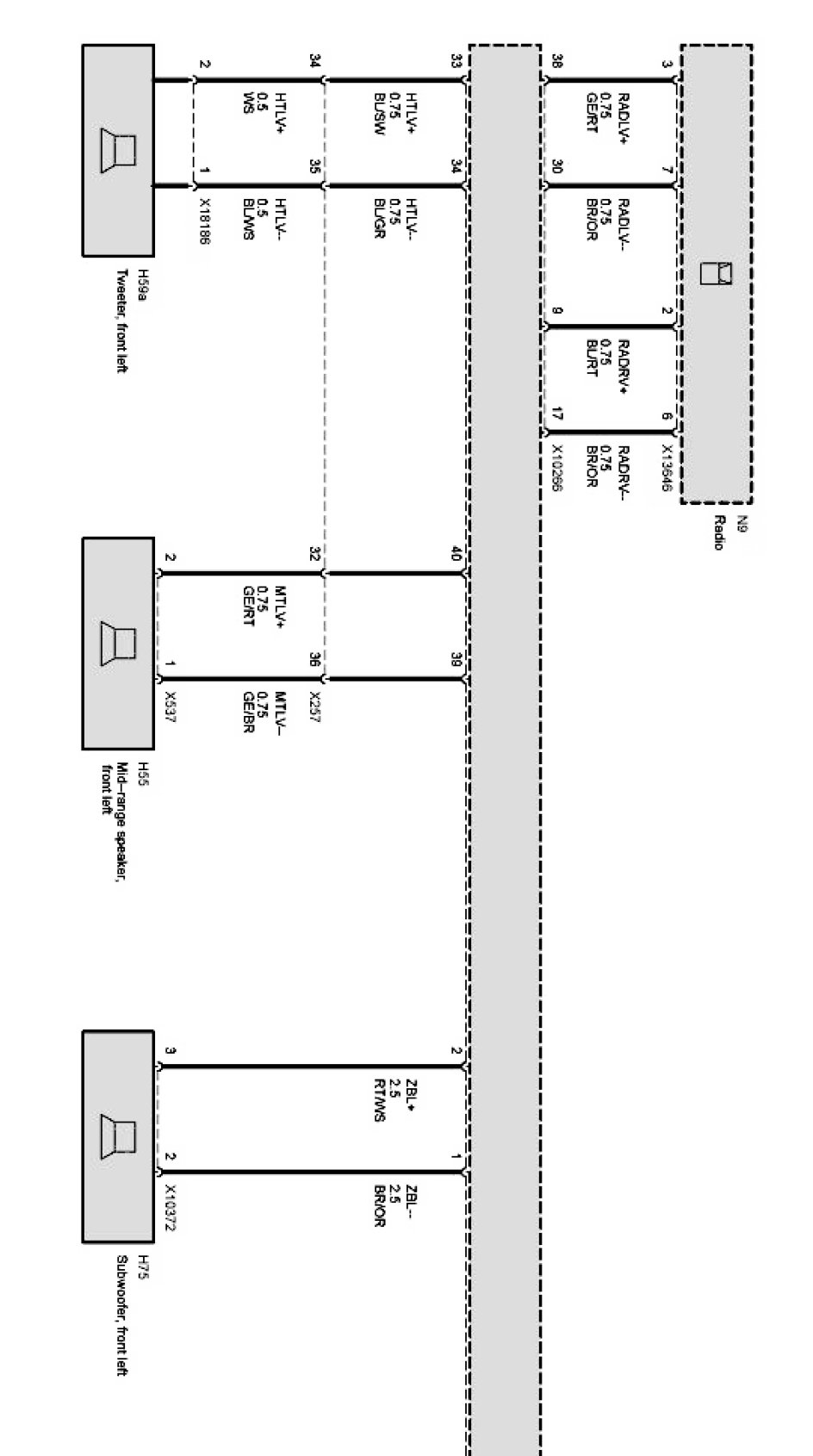

Speakers Part 1:



Speakers Part 2:



Speakers Part 3:



Speakers Part 4:
