Home >> BMW >> 2008 >> X3 3.0i (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X13649

X13649

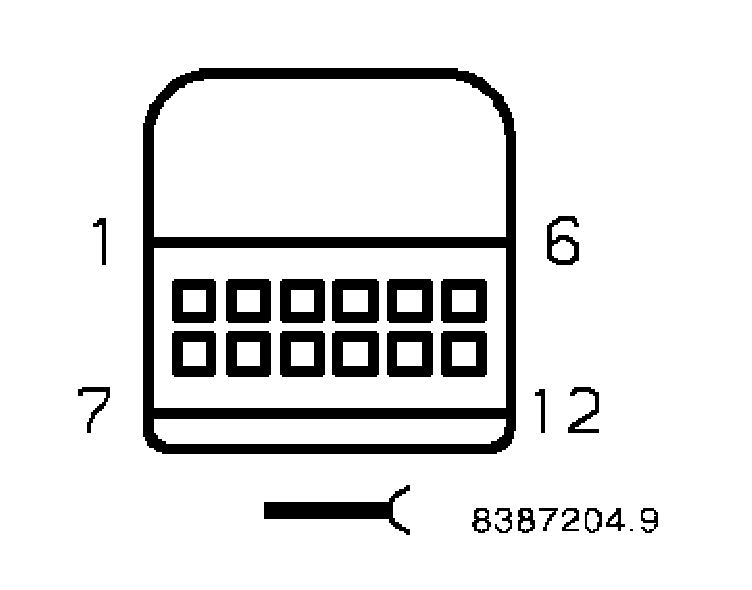

X13649:

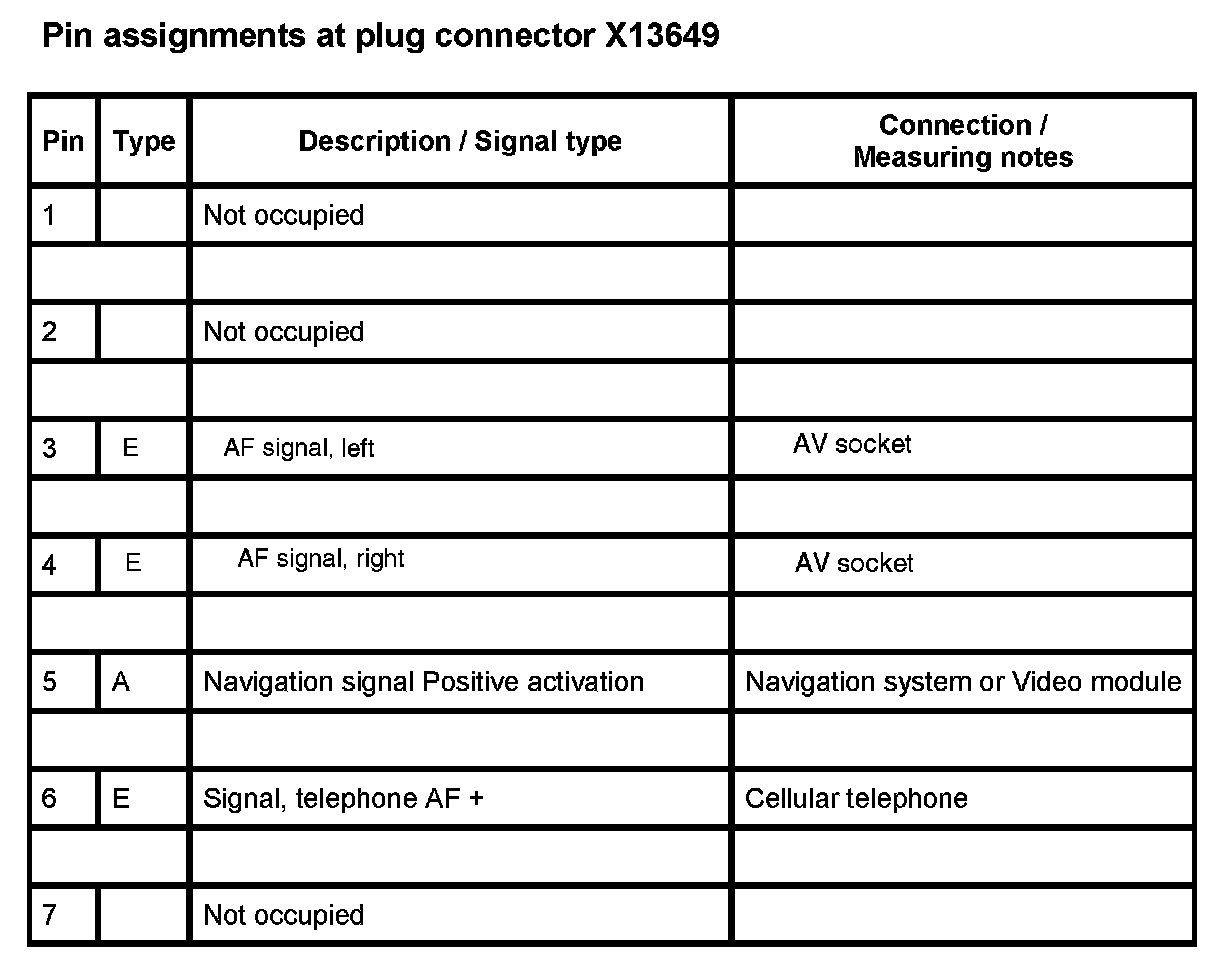

X13649 - Part 1:

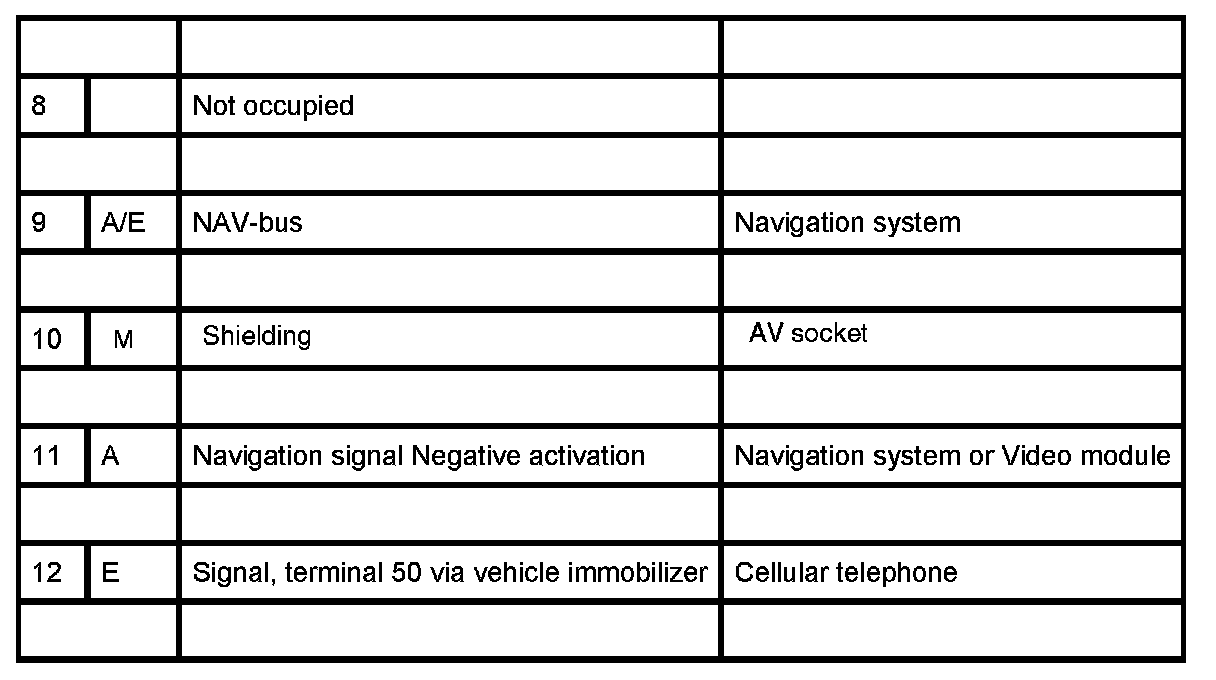

X13649 - Part 2:
