51 34 211 Replacing Rubber Guide For Rear Left or Right Door Window

51 34 211 - Replacing rubber guide for rear left or right door window





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove cover on inside door window frame 51 34 160 Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame

Note:
Rubber guide must be replaced after every complete removal.

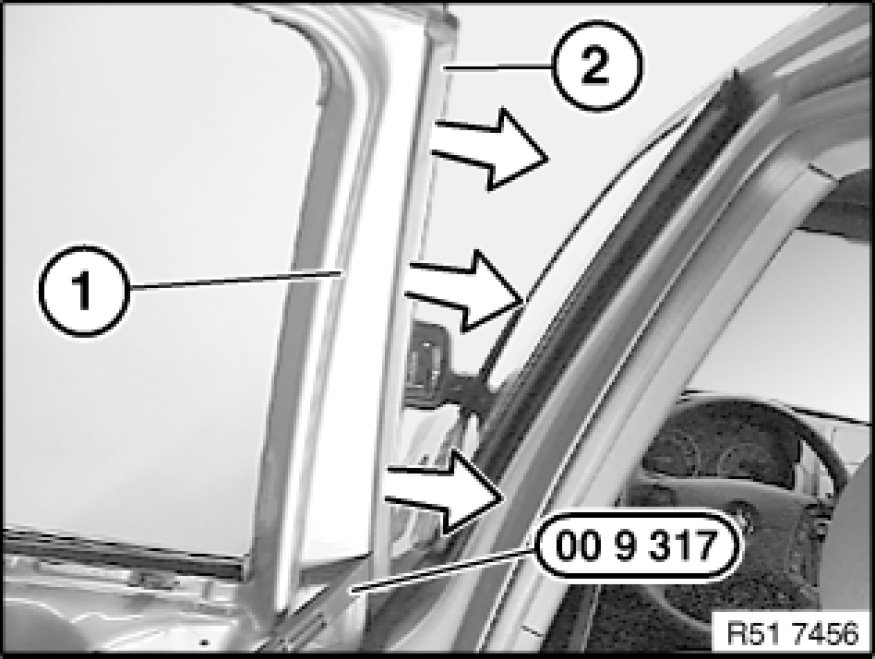

Lever out rubber guide (1) on door window frame at front (2) with special tool 00 9 317 00 9 317 Trim Panel Wedge.

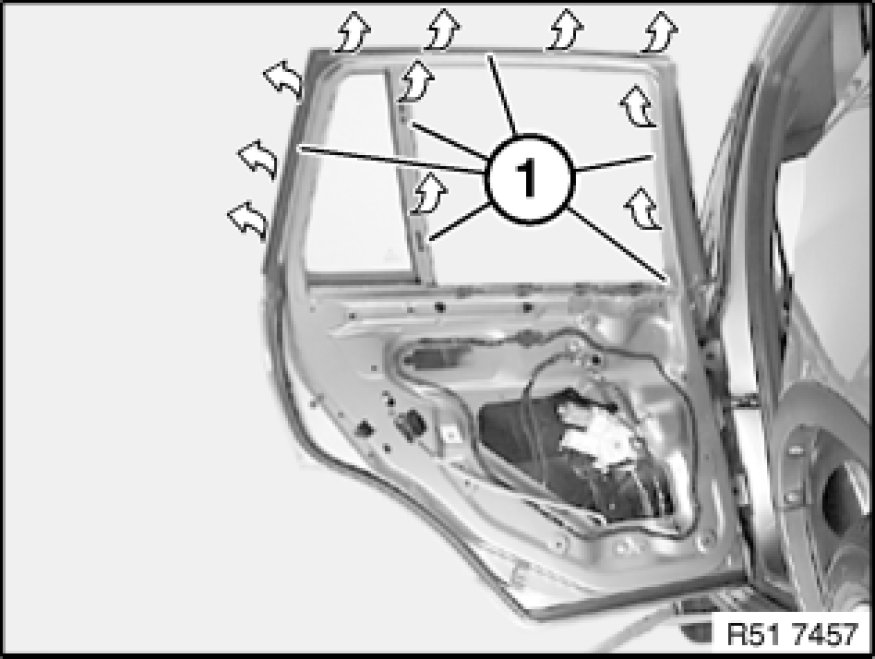

Feed out rubber guide (1) towards top.





Installation:

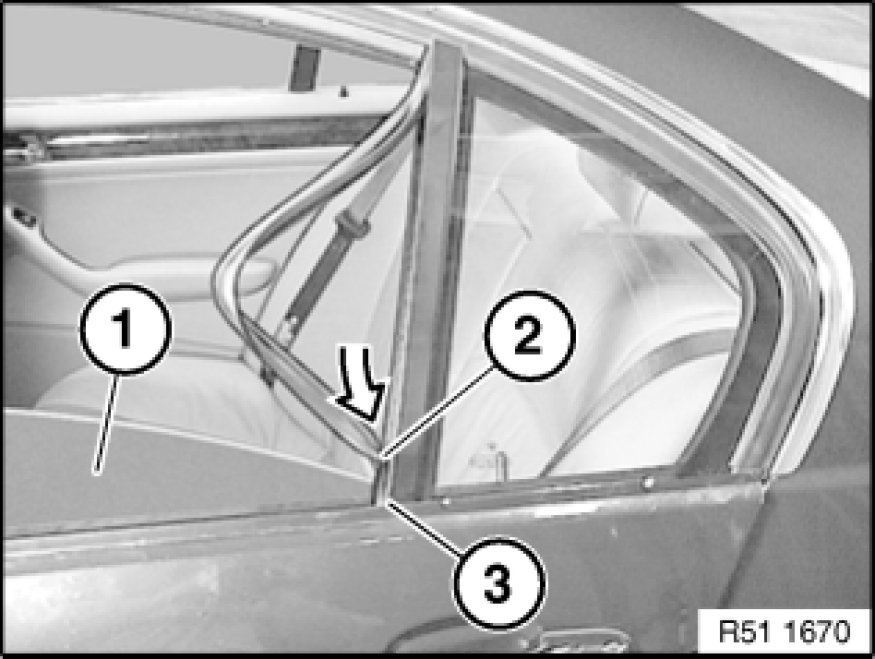

Close door window glass (1) a little.
Push rubber guide (2) onto door window glass (1) and into window guide (3).

Moisten rubber guide (2) with water.
