51 22 330 Removing and Installing/Replacing Window Cavity Cover Strip on Inside Rear Door




51 22 330 - Removing and installing/replacing window cavity cover strip on inside rear door





Necessary preliminary tasks:
- Remove rear door trim panel Removing and Installing Left or Right Rear Door Trim Panel

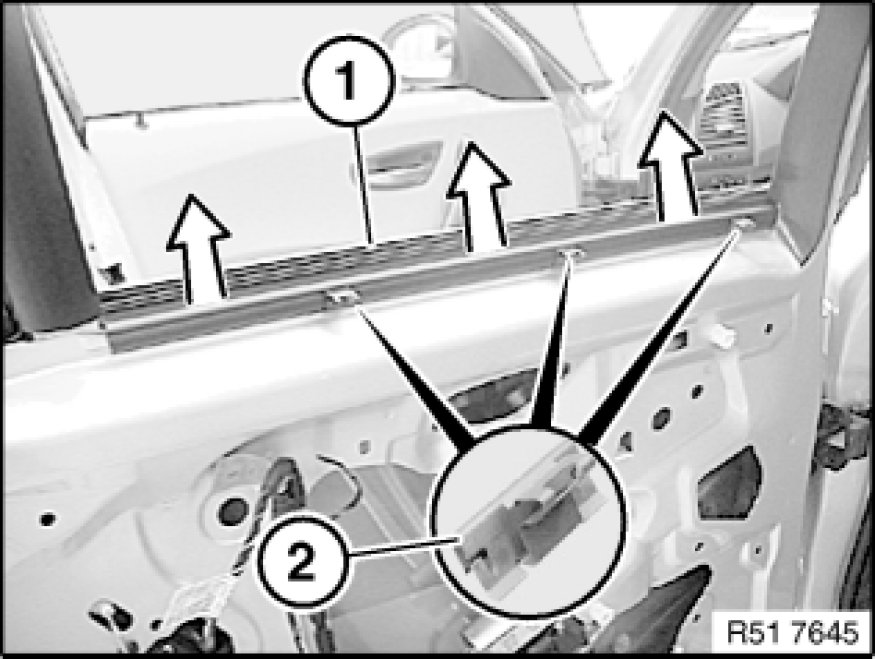

Pull window cavity cover strip (1) off rear door.

Installation:
If necessary, replace faulty clips (2).
