54 13 055 Replacing Seal for Slide/Tilt Sunroof Frame

54 13 055 - Replacing seal for slide/tilt sunroof frame





Necessary preliminary tasks:
- Remove glass slide/tilt sunroof lid 54 10 175 Removing and Installing Rear Glass Slide/Tilt Sunroof Cover at rear
- Lower (open) glass slide/tilt sunroof lid at front

Note:
Follow repair instructions 54 0 ... Repair Instructions For Bonded Seals for bonded seals on glass slide/tilt sunroof.

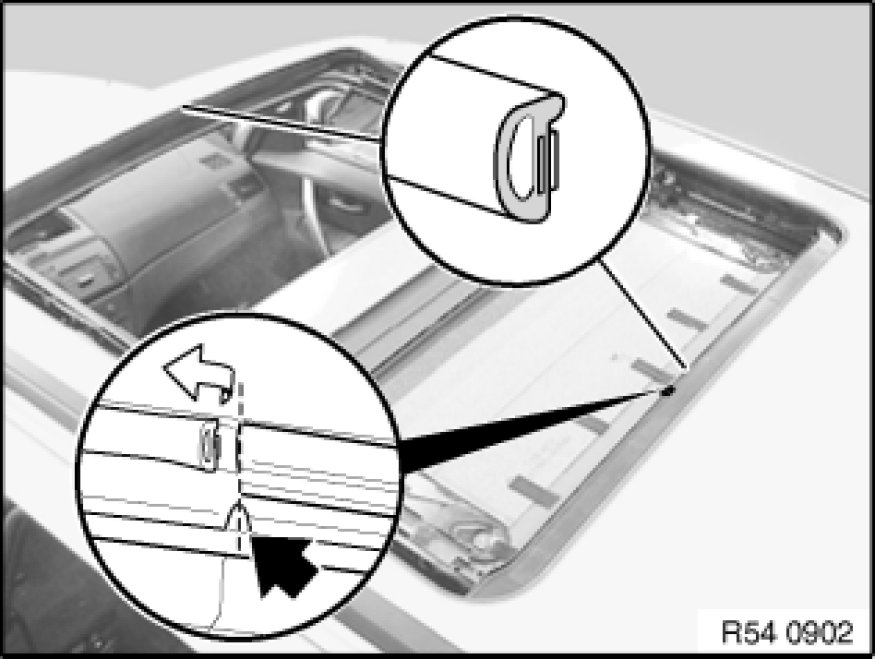

Pull off seal of sunroof cut-out at contact edge starting from body. (Peel off)

Installation:
Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Service).
Press seal without stretching (squashing).
Stick on seal in sections.
Establish seal joint.

Important!
Do not touch bonding surface.
Surface temperature ≥20 °C
Incorrect bonding of the seal will result in leakage.
