54 13 050 Replacing Seal for Slide/Tilt Sunroof Lid At Rear

54 13 050 - Replacing seal for slide/tilt sunroof lid at rear





Necessary preliminary tasks:
- Open glass slide/tilt sunroof

Note:
Follow repair instructions 54 0 ... Repair Instructions For Bonded Seals for bonded seals on glass slide/tilt sunroof.

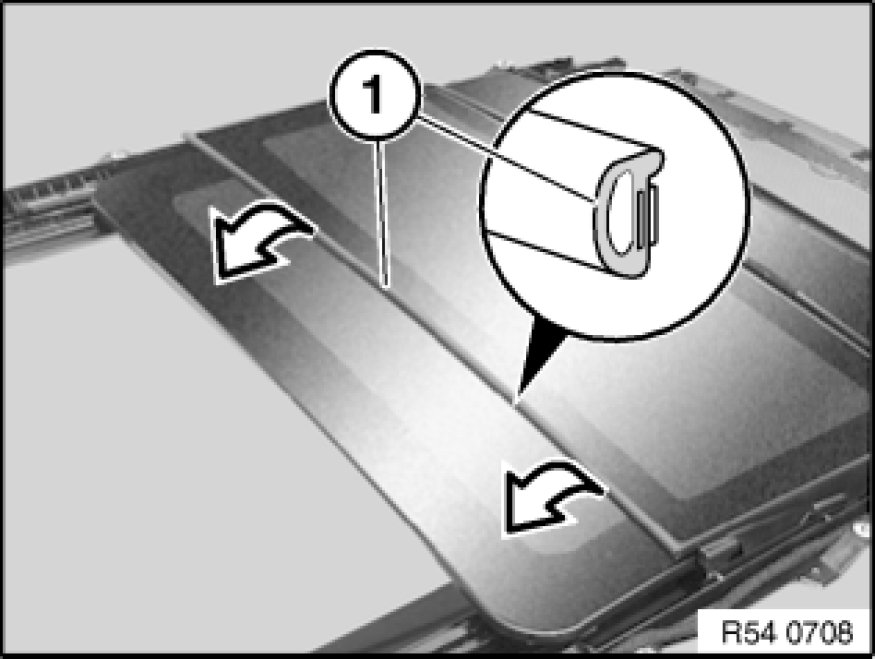

Detach seal (1) from slide/tilt sunroof lid.

Installation:
Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Service).

Press seal without stretching (squashing).

Important!
Do not touch bonding surface.
Surface temperature ≥20 °C
Incorrect bonding of the seal will result in leakage.
