51 16 361 Replacing Right Glovebox

51 16 361 - Replacing right glovebox





Necessary preliminary tasks:
- Remove right glovebox 51 16 366 Removing and Installing Right Glovebox With Housing
- Remove lock for right glovebox Service and Repair
Version with Isofix system:
- Remove switch for passenger airbag deactivation Removing and Installing/Replacing Switch for Passenger Airbag Deactivation

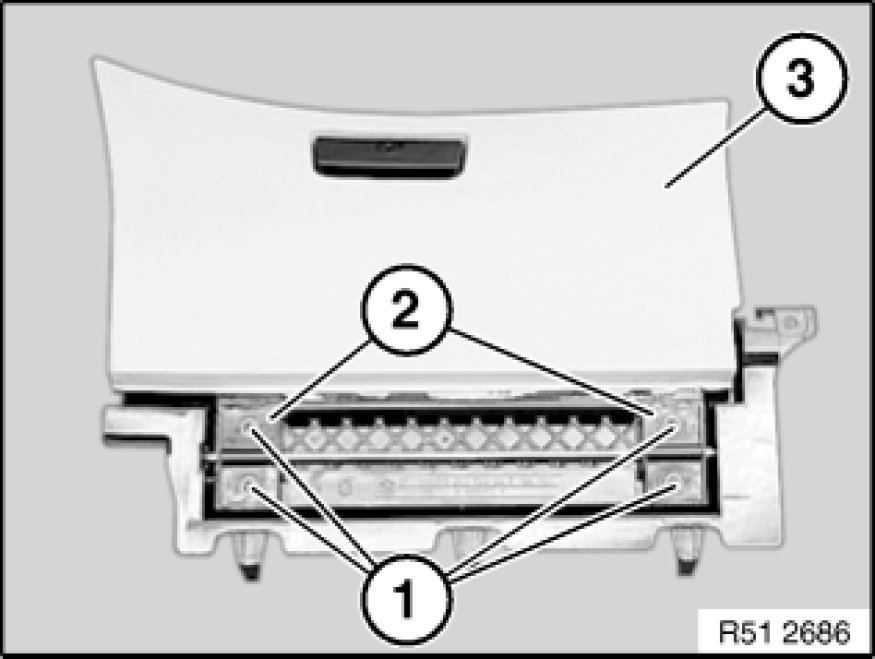

Release screws (1).
Remove holders (2) from glovebox (3).

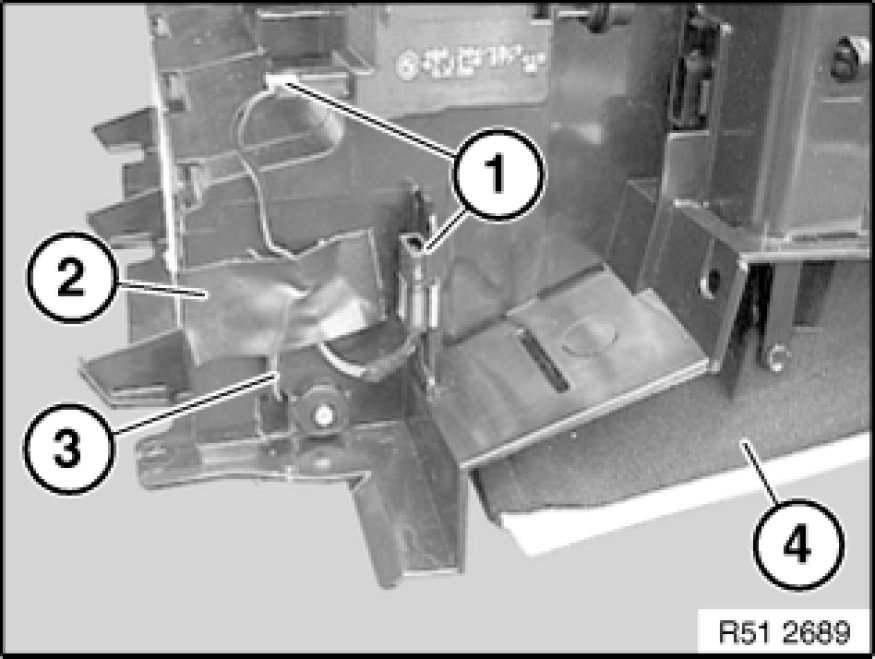

Disconnect plug connection (1).
Detach adhesive tape (2).
Feed out cable (3) with glovebox (4).
