51 14 008 Replacing (removing and installing) number/letter combination on front left or right side panel

51 14 008 - Replacing (removing and installing) number/letter combination on front left or right side panel





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

Note:
Procedure and dimensions are also mandatory for right side, outer edge of number is then positioned.





Note:
Number/letter combination is stuck on at a height level with turn indicator.

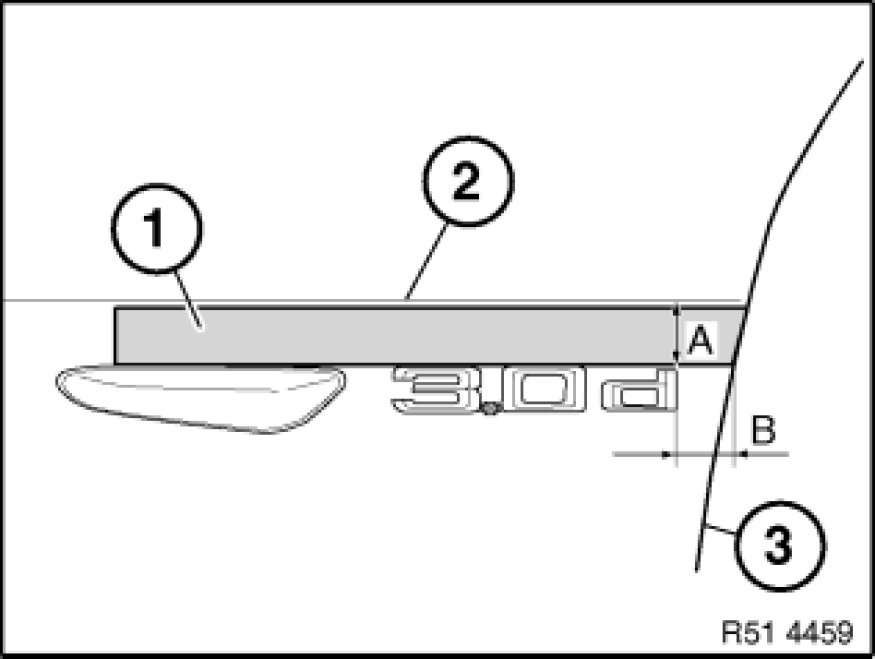

Stick on adhesive tape (1) for contour edge (2) to side panel up to turn indicator lamp.
Mark measurement "B" from side edge (3) on adhesive tape.
Dimensions:
A= - 30 mm

B= - 22 mm
