51 11 770 Removing and Installing/Replacing Left or Right Deformation Element For Front Bumper

51 11 770 - Removing and installing/replacing left or right deformation element for front bumper





Necessary preliminary tasks:
- Remove carrier 51 11 050 Removing and Installing/Replacing Carrier For Front Bumper Trim for bumper trim at front





Release screws (1).
Feed air duct (2) out of tension strut (3).

Installation:
Make sure air duct (2) is in correct position.

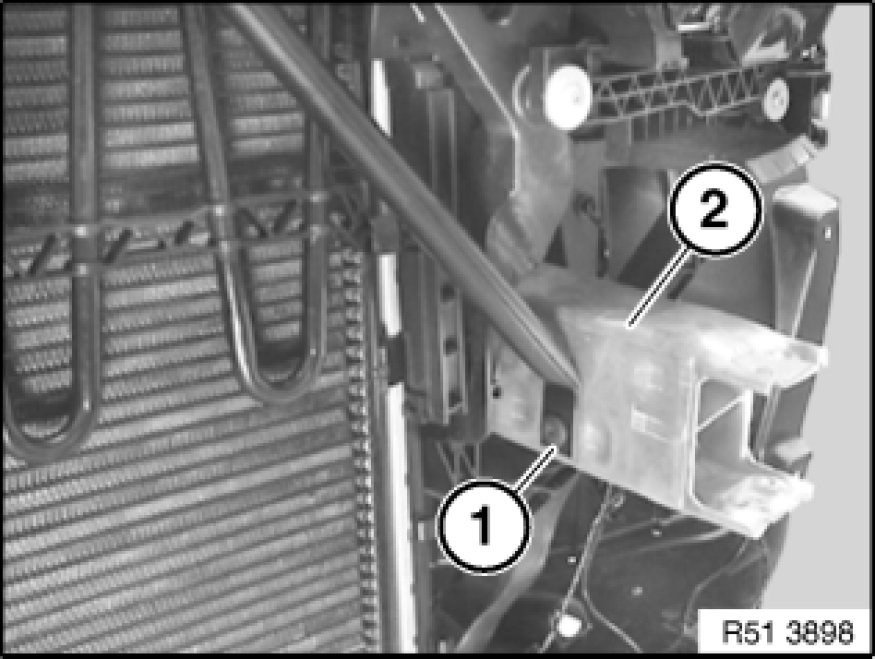

Release screw (1) on deformation element (2).





Note:

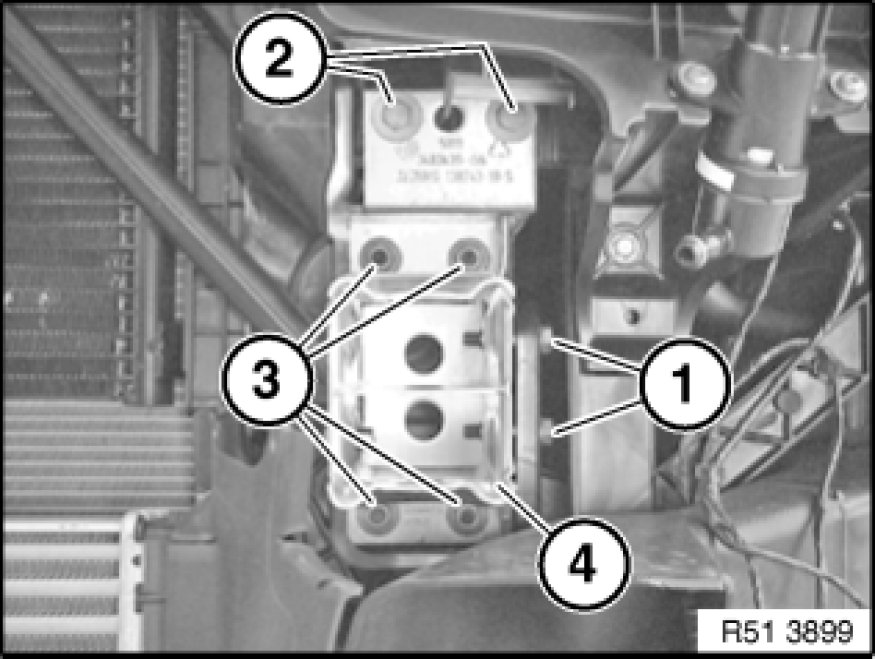

For height adjustment, mark position of deformation element (4).

Release bolts (1) on supplementary cooler bracket.

Release bolts (2).
Release nuts (3) and remove deformation element (4).

Installation:
Height adjustment, refer to Gap dimensions, body.
Tightening torque 51 11 6AZ [1][2]Front Bumper.
