Removing and Installing/Replacing Amplifier (Top Hi-Fi System)

65 12 072 - Removing and installing (replacing) amplifier (Top Hi-Fi system)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim on left .

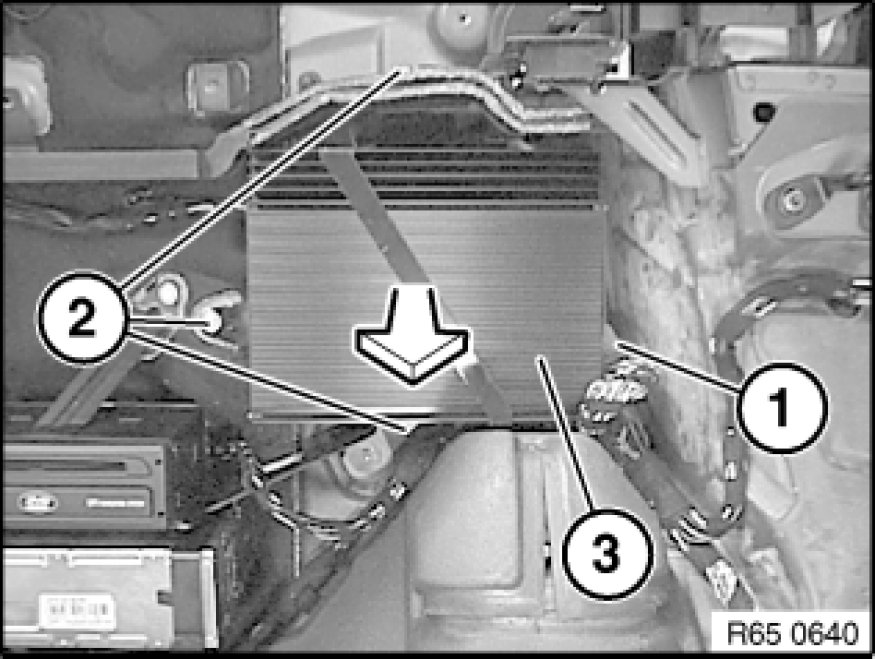

Unfasten plug connection (1) and disconnect.
Release screws (2).
Remove amplifier (3) with holder in direction of arrow.





Release screw (1).
Fold back retaining bracket (2) in direction of arrow and remove.
Remove amplifier (3) from holder (4).





Replacement:
Carry out programming/coding Programming and Relearning.
