Removing and Installing/Replacing Amplifier

65 12 070 - Removing and installing/replacing amplifier





Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim on left .

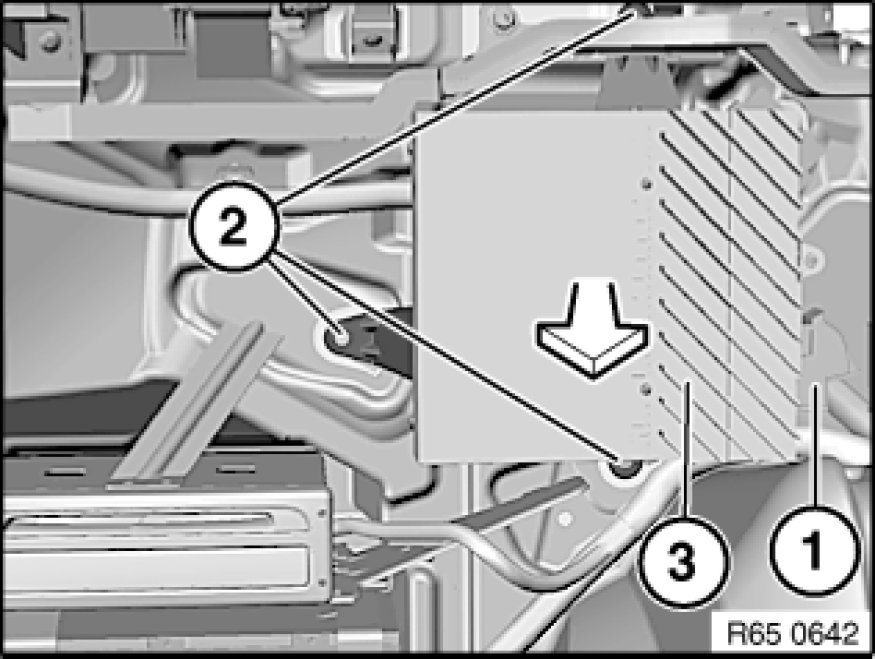

Unfasten plug connection (1) and disconnect.
Release screws (2).
Remove amplifier (3) with holder in direction of arrow.





Release screw (1).
Unscrew nuts (2).
Remove amplifier (3) from holder (4).
