51 37 240 Removing and installing/replacing outer window cavity cover strip for door window, rear left or right




51 37 240 - Removing and installing/replacing outer window cavity cover strip for door window, rear left or right





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge

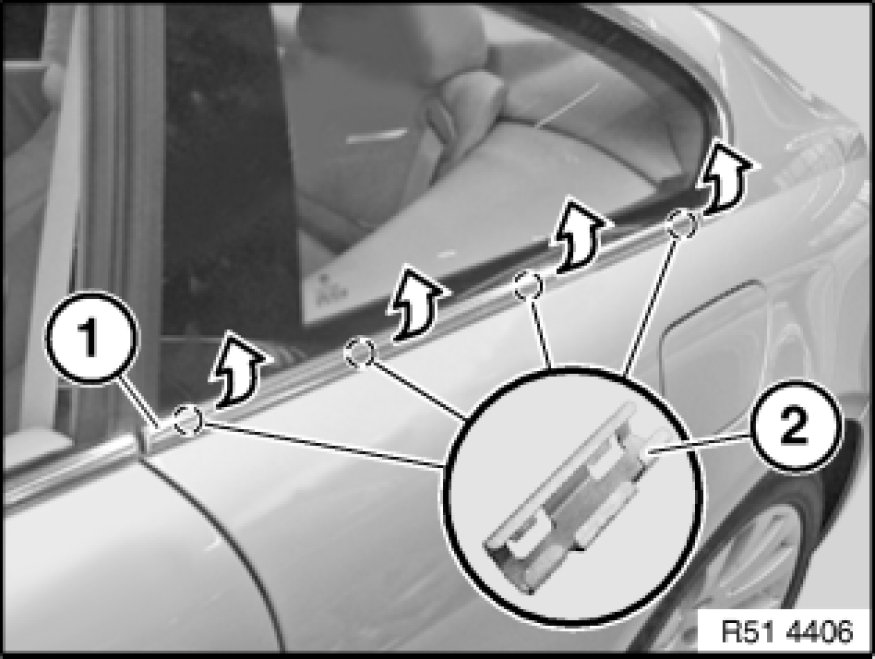

Release window cavity cover strip (1) with special tool 00 9 317 00 9 317 Trim Panel Wedge in direction of arrow from clips (2).





Installation:

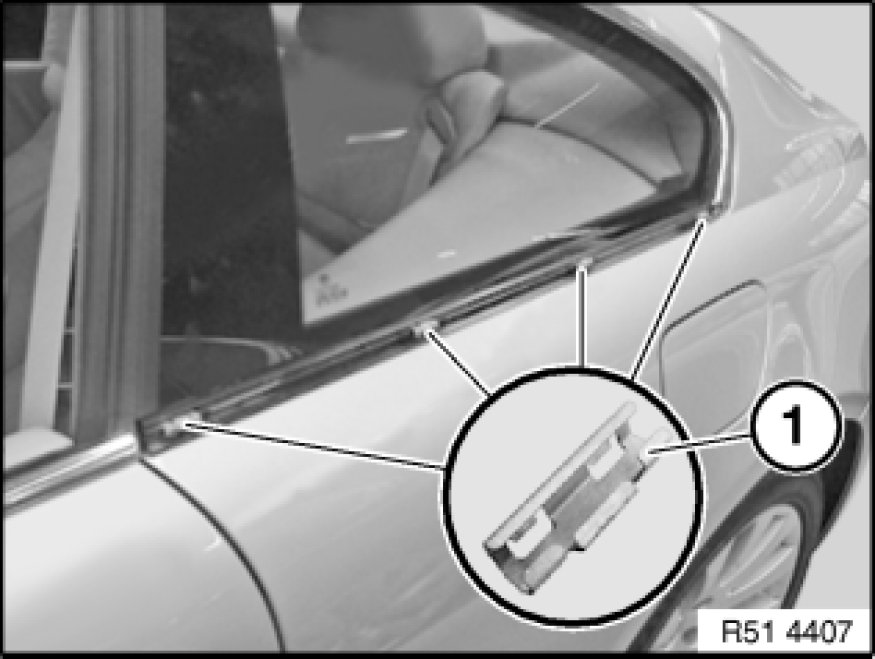

Check clips (1) for damage and correct seating.

If necessary, replace faulty clips (1).
