Removing and Installing/Replacing Bowden Cable For Rear Compartment Entrance Aid

52 16 011 - Removing and installing/replacing Bowden cable for rear compartment entrance aid





Necessary preliminary tasks:
- Remove seat Front Seat, Sports, Electric
- Remove rear panel Removing and Installing/Replacing Rear Panel on Front Left or Right Seat Backrest (Sports/Electric)
- Remove outer cover Removing and Installing/Replacing Outer Covers on Left or Right Front Seat
- Remove inner cover Removing and Installing/Replacing Inner Cover on Front Left or Right Seat (Sports/Electric)





Lay seat on seat surface/backrest or left seat side.
Unhook and remove springs (1).
Remove retainers (2).

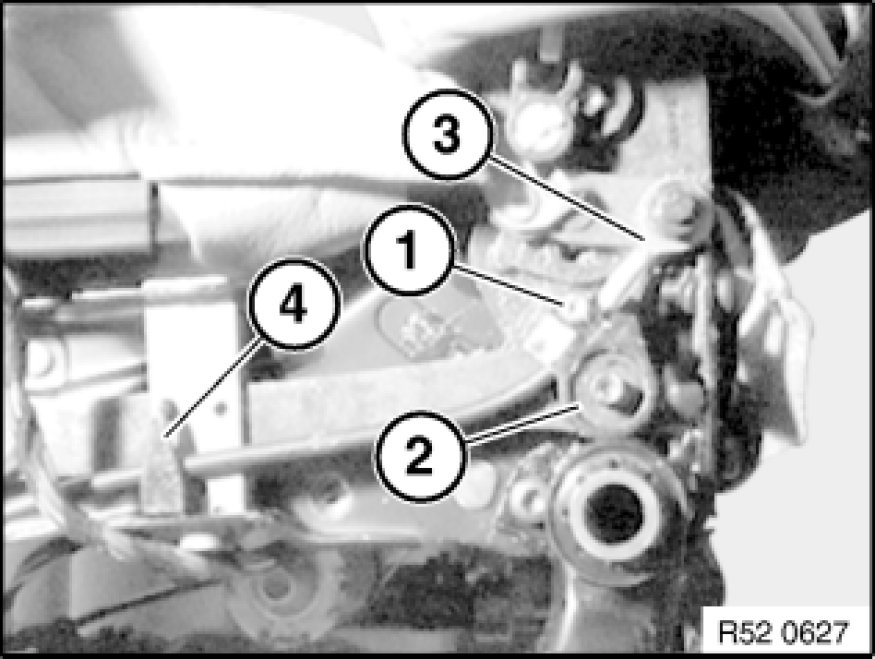

Release screw (1) of cable mount (2).
Detach cable mount (2) and cable eye (3) from shaft.
Feed cable out of holder (4).

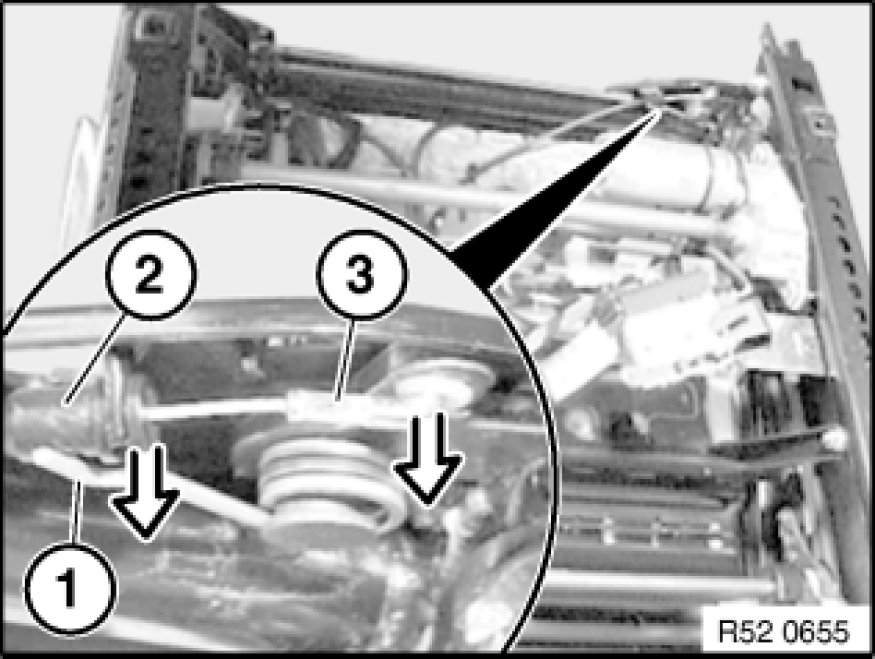

Disconnect spring (1).
Unclip sleeve (2) of Bowden cable from guide.
Feed out cable (3).
