Removing and Installing/Replacing Seat Angle Adjuster on Left or Right Front Seat (Normal/Electric)

52 14 070 - Removing and installing/replacing seat angle adjuster on left or right front seat (normal/electric)





Necessary preliminary tasks:
- Remove front seat Front Seat, Normal, Electric
- Remove outer cover Removing and Installing/Replacing Outer Covers on Left or Right Front Seat

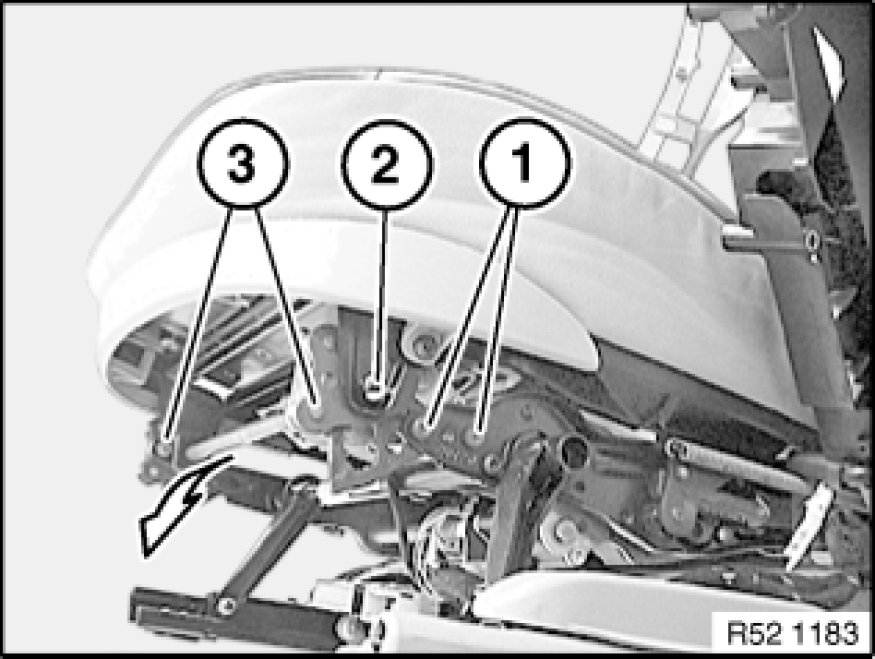

Release screws (1).
Release screw (2).

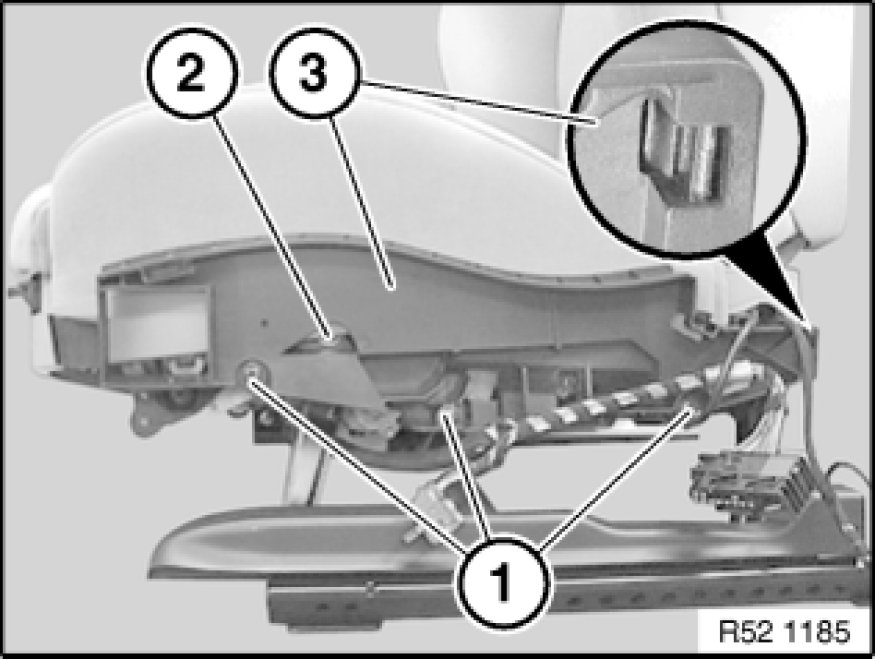

Unclip carrier (3) from seat mechanism at rear.

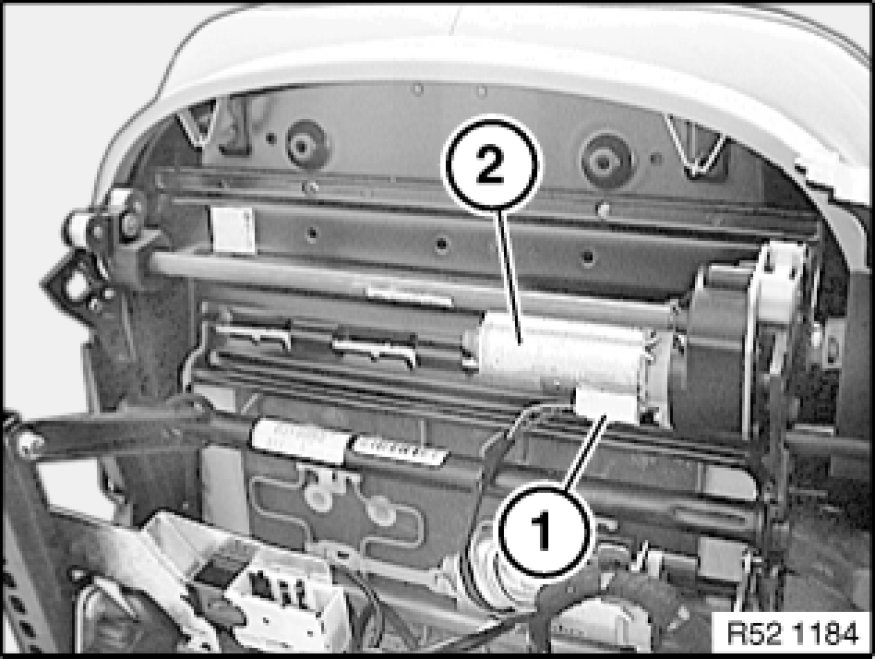

Unlock plug connection (1) on drive unit (2) and disconnect.





Release screws (1).

Installation:
Replace Taptite screws (1).
Tightening torque 52 10 16AZ Front Seats.

Release screw (2).

Tightening torque 52 10 17AZ Front Seats.
Remove seat angle adjuster (3).

Installation:
Slide left and right O-rings onto shaft. Make sure O-rings are correctly located between seat angle adjuster and seat pan.
