Sun Shade: Service and Repair

54 10 150 - Removing and installing/replacing front floating roofliner





Necessary preliminary tasks:
- Remove glass tilt sunroof lid

Important!
Make sure that grease on the rails does not come into contact with the floating roofliner.





Open roofliner (1) to such an extent that screws (2) are still accessible.
Loosen screws (2).
Tightening torque 54 10 7AZ 54 10 Glass Tilt Sunroof.





Slide roofliner (1) uniformly towards front.
If necessary, raise slider (2) for roofliner.
Move slider (2) back until there is no longer any contact with the roofliner.

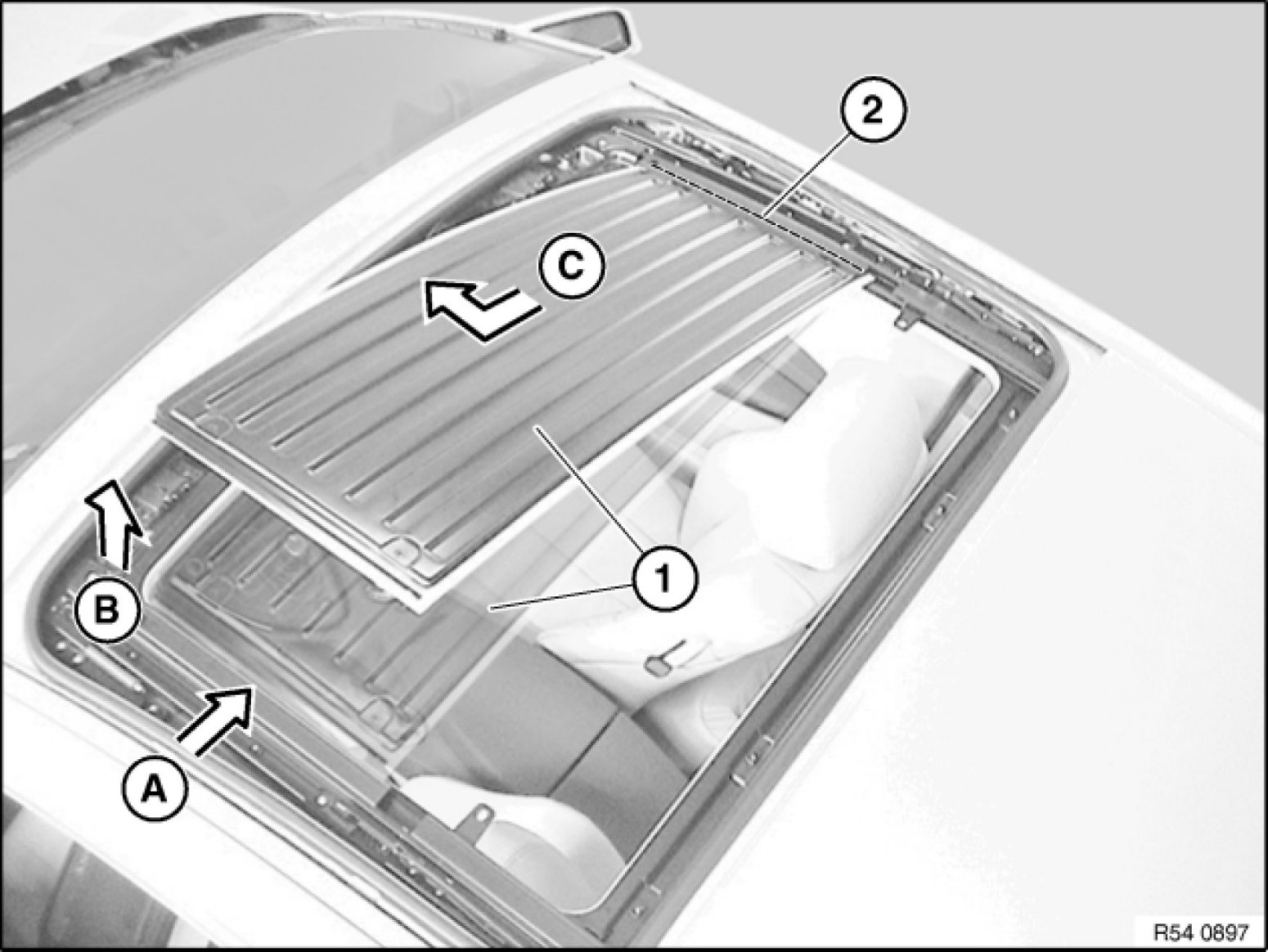

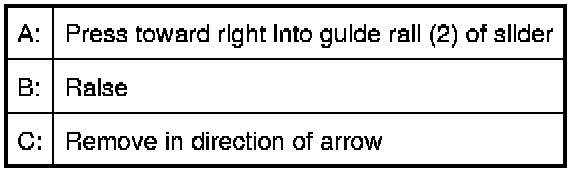

Remove floating roofliner (1) as follows:
