Sun Visor: Service and Repair

51 16 080 - Removing and installing or replacing sun visor and left or right counter support

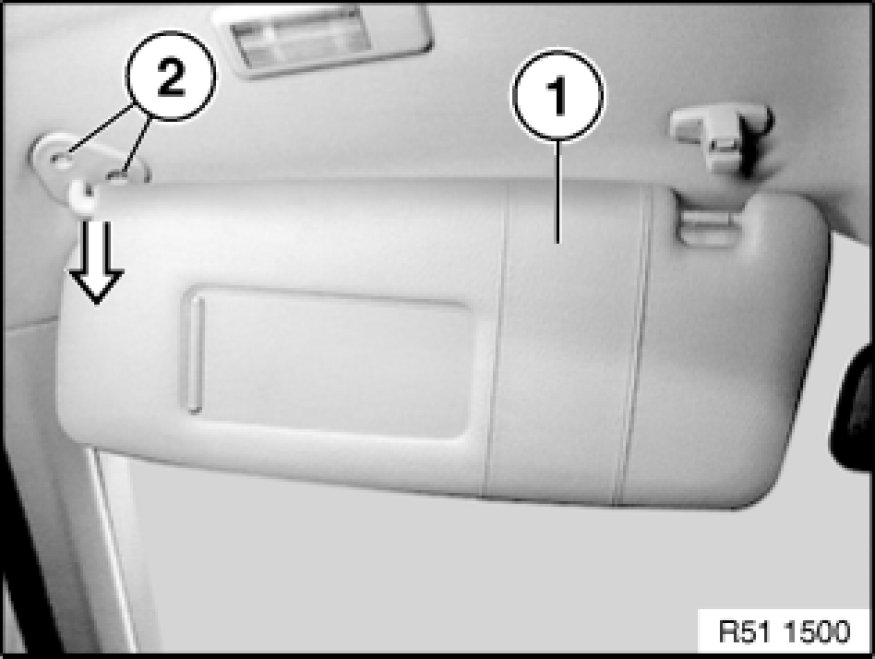

Lever sun visor (1) out of counter support.
Release screws (2) and remove sun visor towards bottom.
Version with interior light package:
If necessary, release screws (2).
Detach sun visor (1) towards bottom slightly, disconnect plug connection and remove sun visor (1).

Installation:
Perform function check on lighting.





Lever out trims (1).
Release screws (2) and remove counter-support (3).
