51 71 482 - Removing and installing/replacing left or right tension strut (on rear axle) (M5/M6)

51 71 482 - Removing and installing / replacing left or right tension strut (on rear axle) (M5, M6)





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Do not drive vehicle without tension strut installed; failure to comply with this instruction will result in damage to the body!

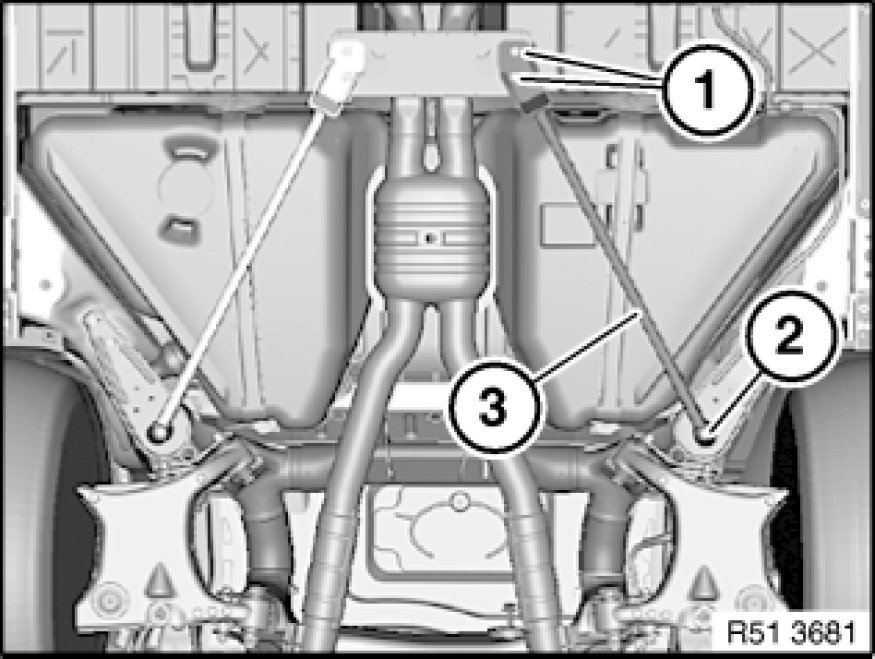

Release screws (1 and 2).
Remove tension strut (3).

Installation Note:
Replace screws.
Tightening torque 51 61 3AZ [1][2]Specifications.
