Removing and Installing/Replacing Left or Right Central Bass Speaker

65 12 050 - Removing and installing/replacing left or right central bass speaker





Necessary preliminary tasks:
- Remove front seat Front Seat, Sports, Electric.
- Remove front entrance cover strip 51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip.





Release screws (1).
Remove bass speaker trim (2).
Fold back floor trims (3) in direction of arrow.

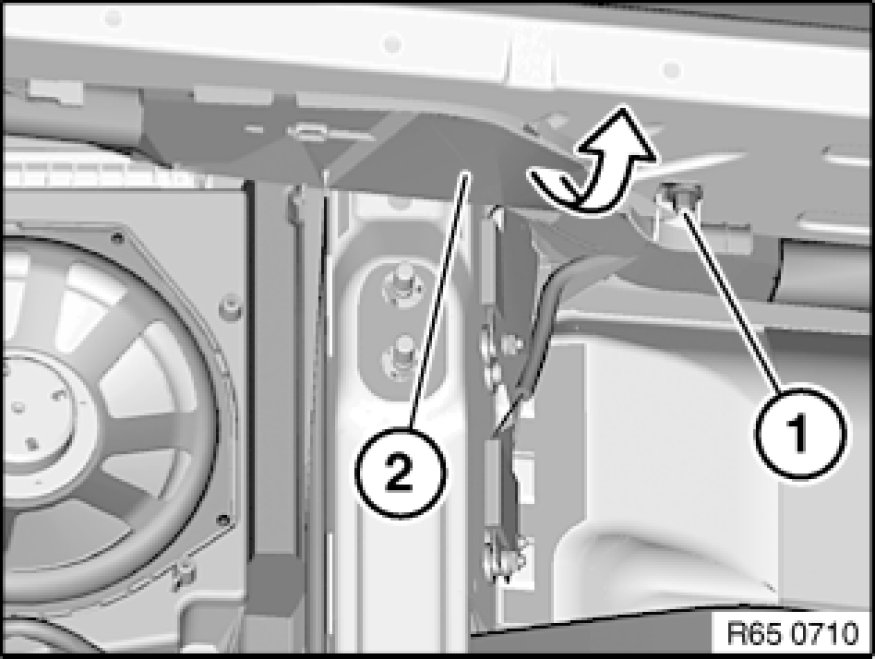

Unscrew nut (1).
Raise front entrance cable cover (2) in direction of arrow and lay to one side slightly.

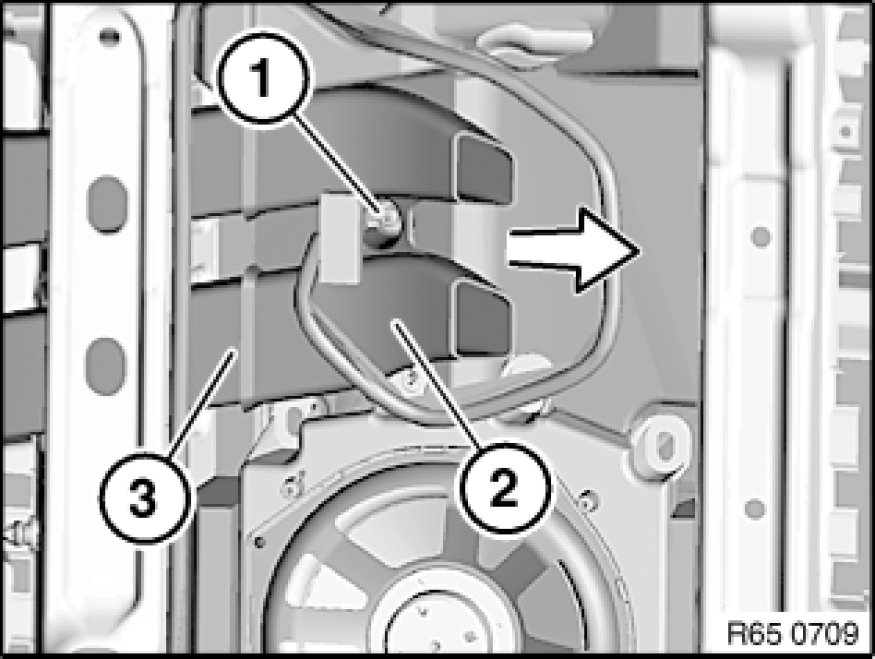

Unscrew nut (1).
Detach front heating duct for rear compartment (2) in direction of arrow from rear heating duct for rear compartment (3).

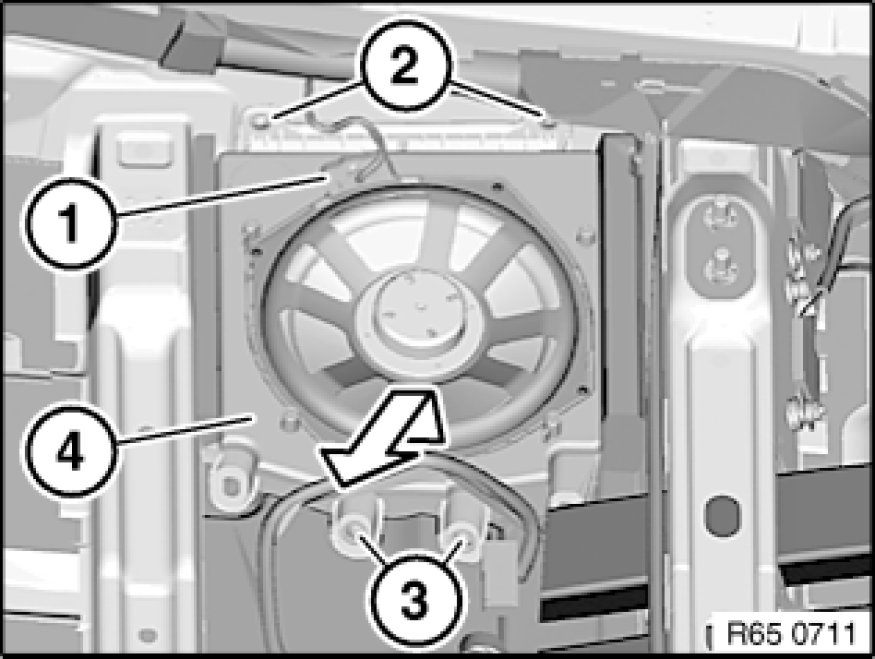

Unfasten plug connection (1) and disconnect.
Unfasten screws (2) and nuts (3).
Feed out central bass speaker (4) in direction of arrow and remove.





Installation:
Make sure seal (1) and rubber damper (2) are correctly seated on central bass speaker (3).
