Antenna Amplifier: Service and Repair

65 20 090 - Removing and installing/replacing antenna amplifier (diversity)





Necessary preliminary tasks:
- Remove head restraint at rear left Removing and Installing / Replacing Rear Head Restraints.
- Remove panel for roof pillar on rear left Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar.

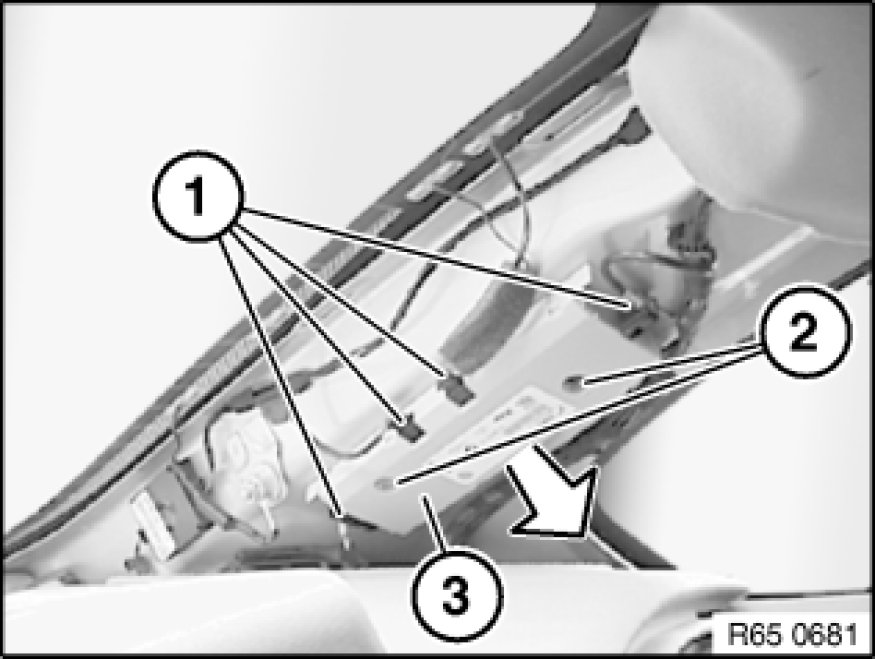

Unlock plug connections (1) and disconnect.
Release screws (2).
Remove antenna amplifier (3) in direction of arrow.
