Replacing Roller Bearing for Dual-Mass Flywheel

11 22 513 - Replacing roller bearing for dual-mass flywheel





Special tools required:
- 00 5 500 00 5 500 Handle for Drifts
- 11 2 010 11 2 010 Extractor
- 11 2 343 11 2 340 Extractor
- 11 2 350 11 2 350 Drift





Note:
Flywheel Removing and Installing / Replacing Flywheel (S85 6-Speed Manual Gearbox) removed!

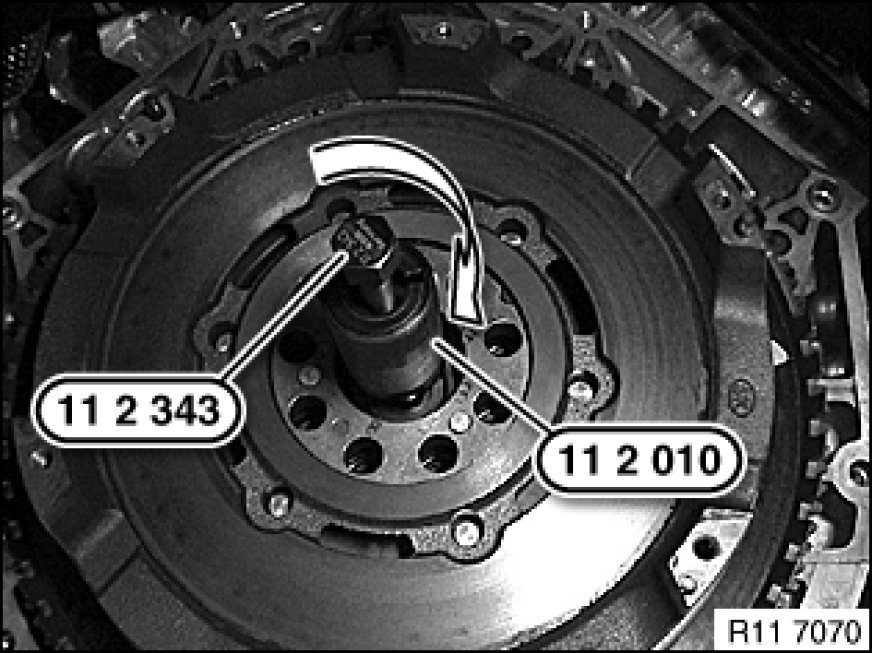

Position special tool 11 2 010 11 2 010 Extractor in roller bearing.

Twist out roller bearing with special tool 11 2 343 11 2 340 Extractor.

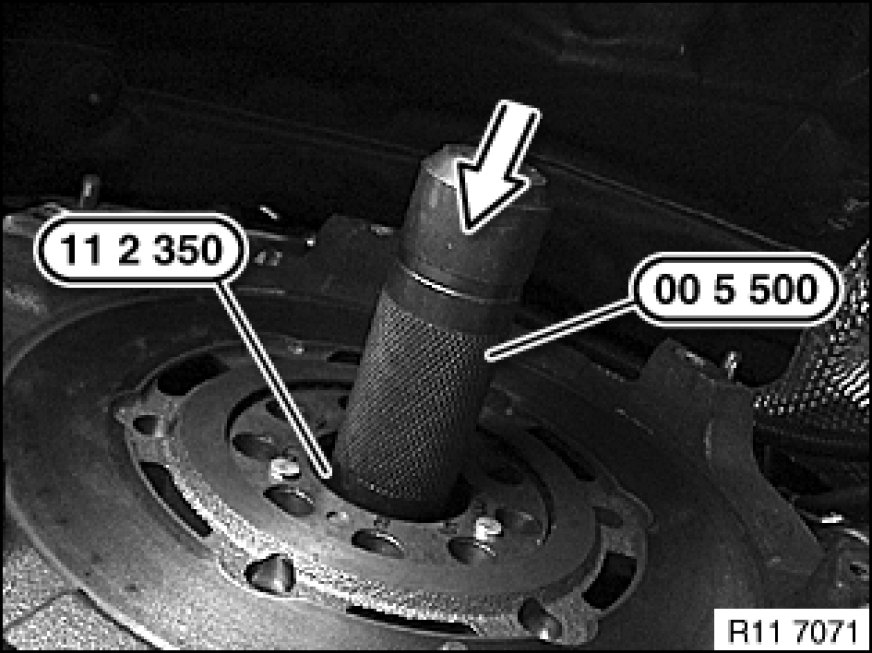

Assemble special tools 11 2 350 11 2 350 Drift and 00 5 500 00 5 500 Handle for Drifts.

Drive in roller bearing with special tools 11 2 350 11 2 350 Drift and 00 5 500 00 5 500 Handle for Drifts in direction of arrow as far as it will go.





Assemble engine.
