Fluid Pump: Service and Repair

11 41 532 - Replacing transmission oil pump (GS7S47BG SMG)





Important!
It is essential to adhere to the exact filling capacities specified.
Fill transmission at room temperature only (approx. 20 - 30 °C).
Refer to Transmission oil replacement External Gearshift Components.
Gear oil:
refer to BMW Service Operating Fluids Service and Repair.
Failure to comply with this instruction will result in serious damage to the transmission.





Recycling:
Catch and dispose of gear oil with suitable equipment.
Observe country-specific waste-disposal regulations.





Necessary preliminary tasks:
- Unscrew and remove splash guard.
- Remove reinforcement plate
Important notes on installation are described in this work step
- Remove heat shields
- Drain transmission oil Service and Repair





Disconnect connector (1).

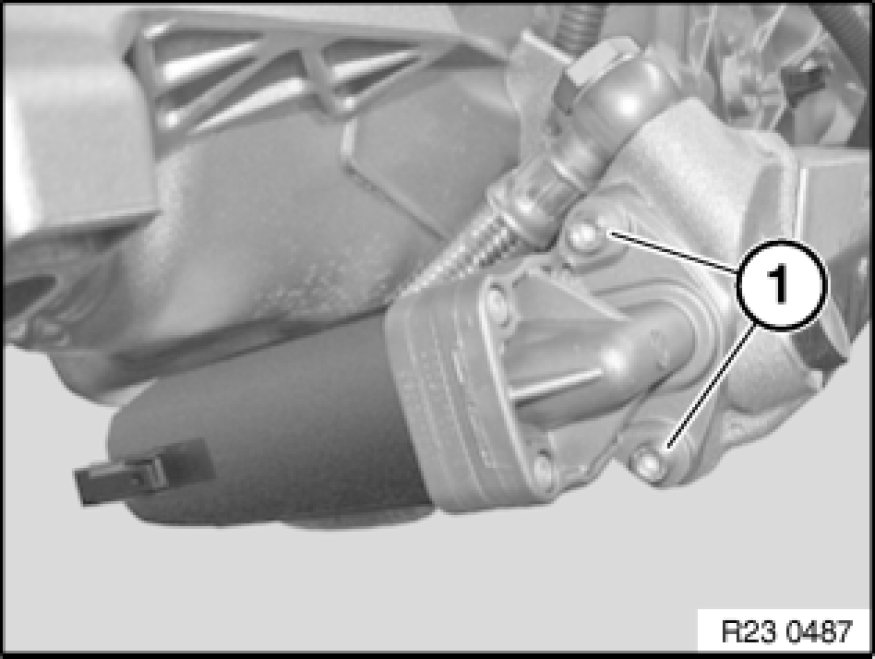

Release bolts (1).
Tightening torque 23 41 21AZ Service and Repair.

Installation Note:
Replace screws.
