Replacing Alternator Belt Pulley

12 31 ... - Replacing alternator belt pulley





Special tools required:
- 12 7 110 12 7 110 Socket Wrench Socket WAF 24





Remove and install alternator drive belt.

Depending on alternator type, grip shaft with:

- hexagon socket
- multi-tooth socket or
- Torx socket wrench

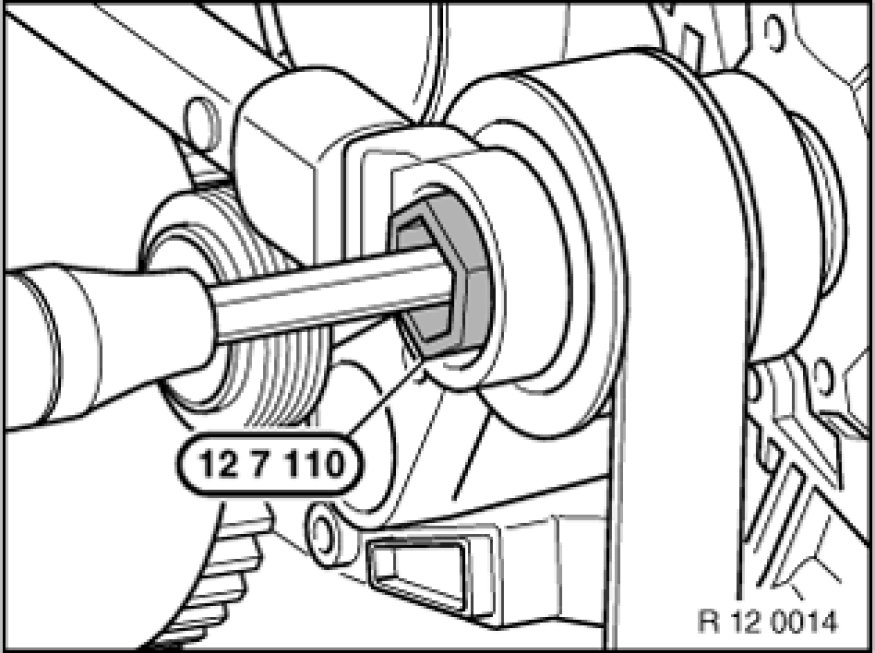

Release nut with special tool 12 7 110 12 7 110 Socket Wrench Socket WAF 24.

Installation:
Tightening torque, 12 31 2AZ / 12 31 3AZ [1][2]Specifications.
