Removing and Installing/Replacing Airbag Module on Left or Right Front Door

72 12 010 - Removing and installing/replacing airbag module on left or right front door





Warning!
Read and comply with safety regulations [1][2]Safety Regulations for Handling Components with Gas Generators for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
Front and rear airbag modules must not be mixed up.





Necessary preliminary tasks:
- Disconnect battery negative lead Instructions for Disconnecting and Connecting Battery
- Remove front door trim Removing and Installing Left or Right Front Door Trim Panel

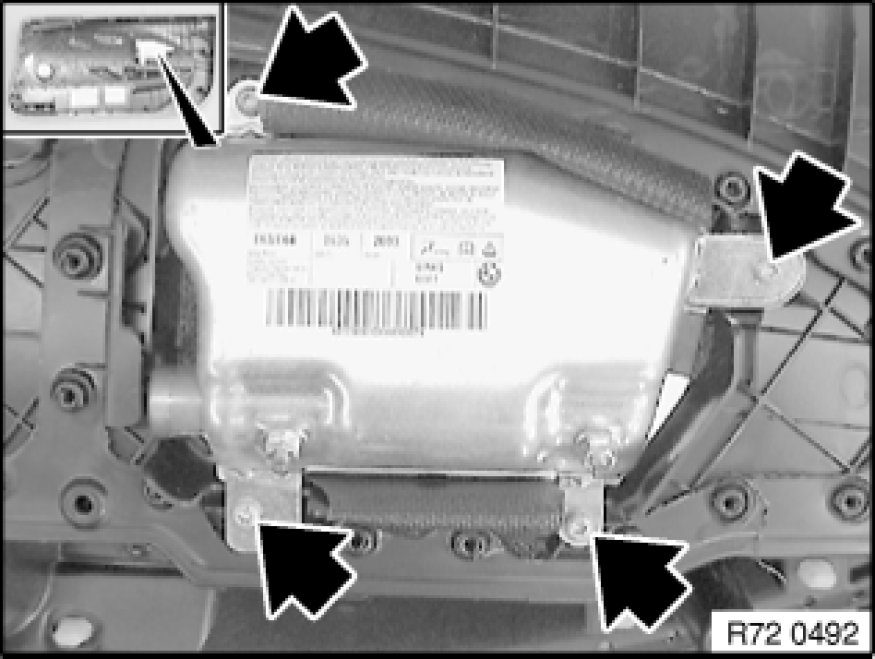

Unfasten screws.
Carefully remove airbag module.

Installation Note:
Before installing airbag module, remove all foreign bodies (screws, etc.) from installation recess.
Replace screws.
Tightening torque 72 12 01AZ Airbag Modules.
