Parking Light Bulb: Service and Repair

63 99 140 - Replacing bulb for front left (or right) side lights





Warning!
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Note:
Removing the pull cables on the hood/bonnet lock is only required for replacing the bulb for the front left side light.

Unclip housing (1) at points (2).
Remove cover (3) from housing (1).





Unclip hood/bonnet lock pull cable (1) in area (2) and disengage at point (3).
Place housing (4) with associated pull cables in working area to one side.

Installation Note:
Make sure hood/bonnet lock pull cables are correctly laid.





Unlock catch (1) and remove cap (2) in direction of arrow.

Installation Note:
Make sure seal is correctly fitted on cover (2) and cover (2) is correctly seated on headlight.





Note:
Headlight removed for purposes of clarity.





Build date up to 09/07:
Disconnect associated plug connection.
Turn holder with bulb for side light (1) counterclockwise with aid of lug (2) and remove from headlight (3).

Installation Note:
Note type of bulb.
Make sure holder with side light bulb (1) is correctly engaged in headlight (3).





Build date after 09/07:

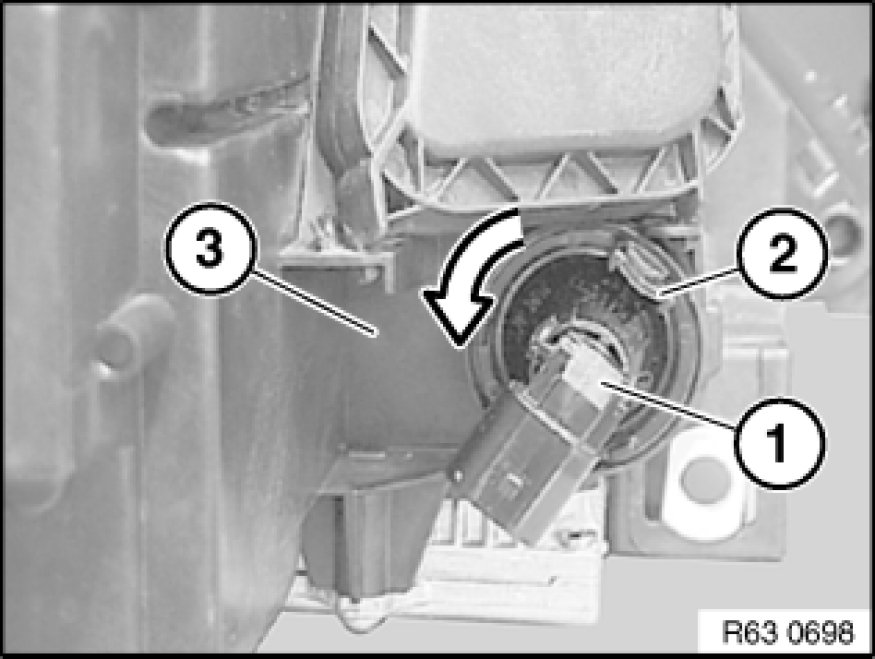

Turn bulb for side light (1) in direction of arrow and feed out of headlight (2).
Disconnect plug connection (4) and remove side light bulb (1).

Installation Note:
Note type of bulb.
Make sure seal (3) is correctly fitted.
Make sure side light bulb (1) is correctly engaged on headlight (2).
