Auxiliary Cabin Heater Exhaust Pipe: Service and Repair

64 12 120 - Removing and installing/replacing intake muffler for independent/auxiliary heater





Necessary preliminary tasks:
- Remove left front wheel Removing or Installing Front or Rear Wheel.
- Remove front left wheel arch lining Service and Repair.
- Remove left underbody paneling Removing and Installing/Replacing Left or Right Underbody Panelling.





Disconnect plug connections (1) and (2).

Important!
To avoid damaging the independent heater, it is absolutely essential to adhere to the following connecting sequence for the plug connections during installation:
1. Plug connection (1)
2. Plug connection (2)

Release screws (3).

Fold independent heater (4) in direction of arrow to one side.

Installation:
Make sure exhaust pipe of independent heater (4) is correctly seated in muffler (5).

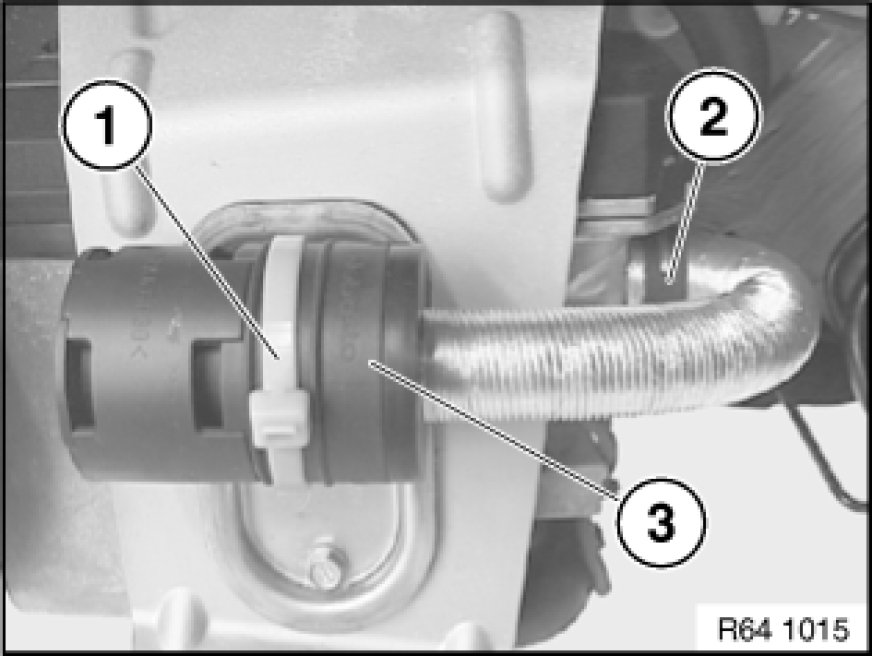

Detach cable strap (1).
Release spring clip (2) and detach corrugated tube from independent/auxiliary heater.
Remove intake muffler for independent/auxiliary heater (3).
