Replacing Servodrive For Right Ventilation Flap

64 11 832 - Replacing servodrive for right ventilation flap





Necessary preliminary tasks:
- Remove instrument panel trim 51 45 030 Removing and Installing Instrument Panel Trim.

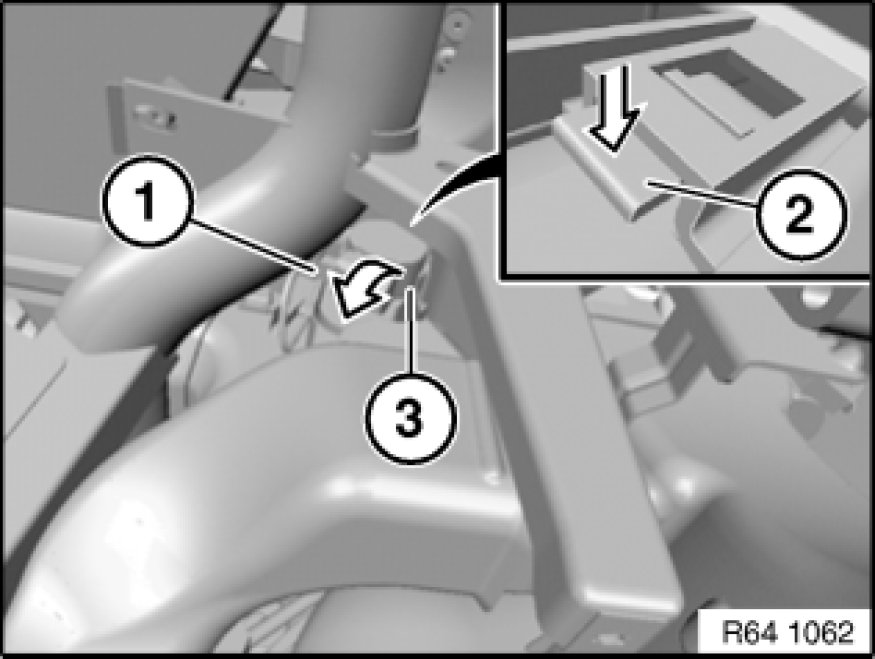

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for right ventilation flap (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
Servodrive for right ventilation flap (3) must snap audibly into place.
