Replacing Servodrive For Right Footwell Flap

64 11 842 - Replacing servodrive for right footwell flap





Necessary preliminary tasks:
- Remove trim for instrument panel 51 45 030 Removing and Installing Instrument Panel Trim.

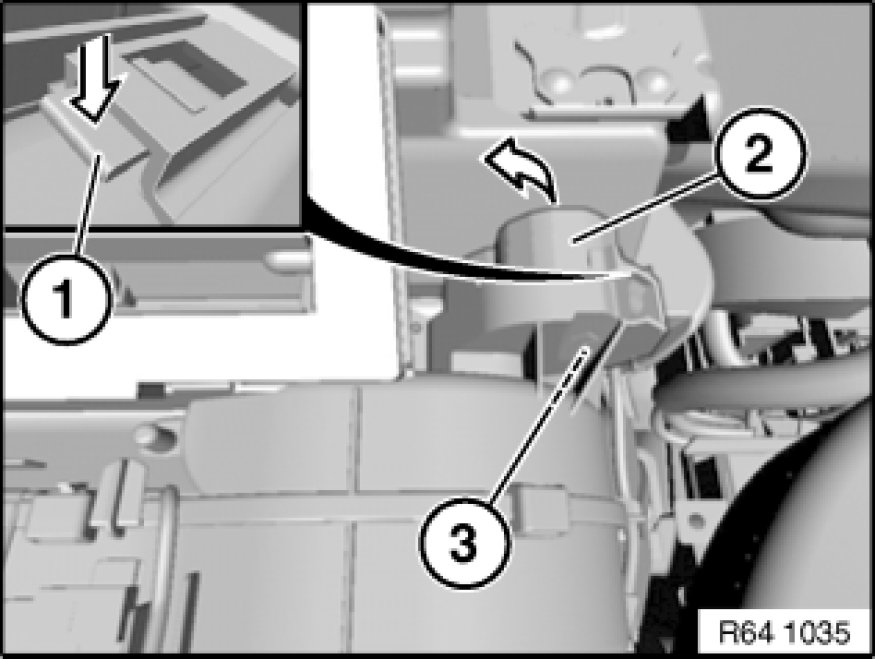

Press lock (1) and unclip servodrive for right footwell flap (2) in direction of arrow.
Unfasten plug connection (3) and disconnect.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
