Replacing Servodrive For Left Ventilation Flap

64 11 830 - Replacing servodrive for left ventilation flap





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.
- Remove Service and Repair air distributor in footwell and heating duct in rear compartment on left.

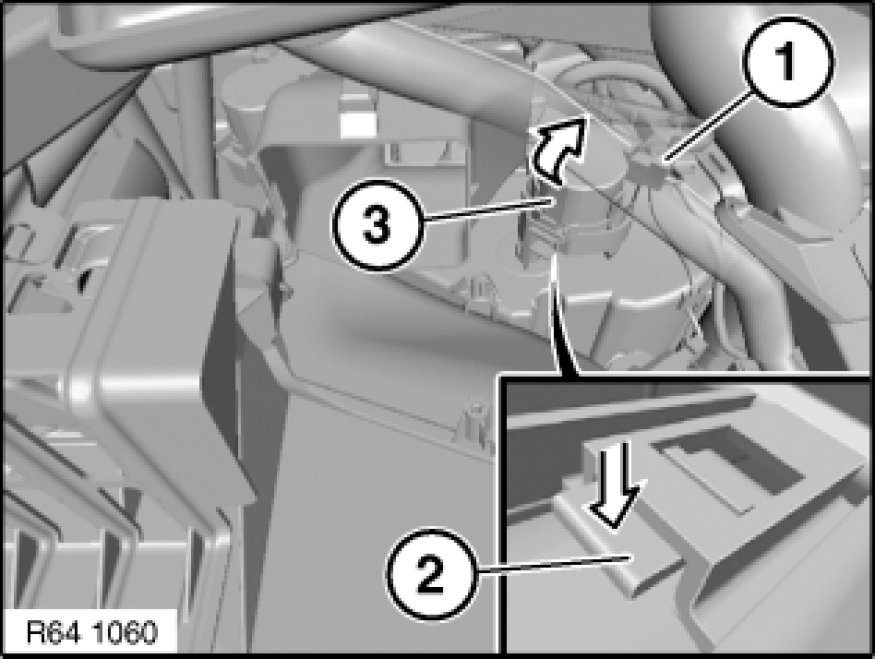

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for left ventilation flap (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
Servodrive for left ventilation flap (3) must snap audibly into place.
