Clutch Pedal Position Switch (Without SMG Sequential Manual Transmission (M5))

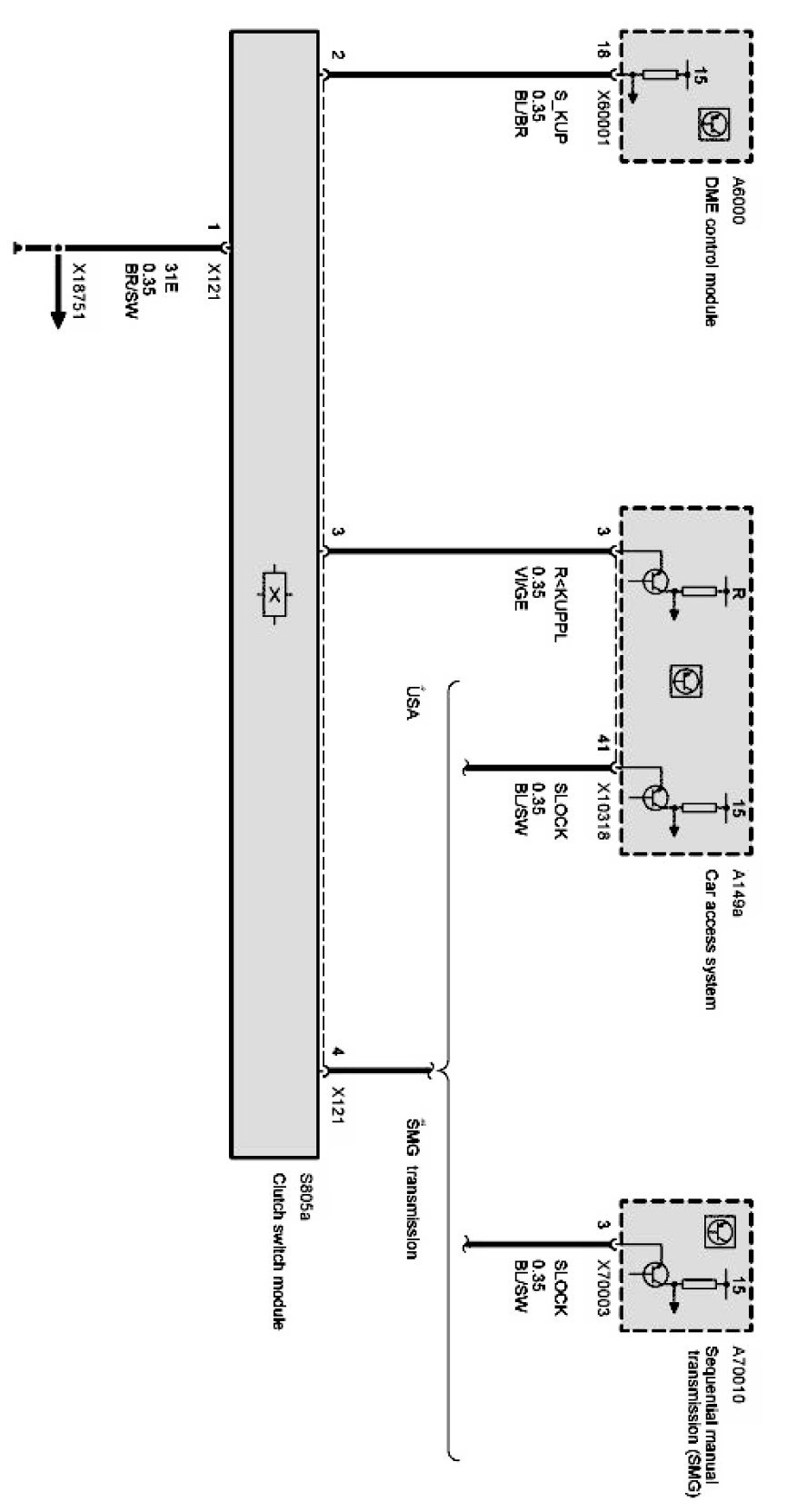

Clutch switch module:
