Home >> BMW >> 2008 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Suspension and Damping >> Air Suspension (EHC Ride Level (Height) Control) >> Supply, Electronic Ride Height Control (As of 09/05)

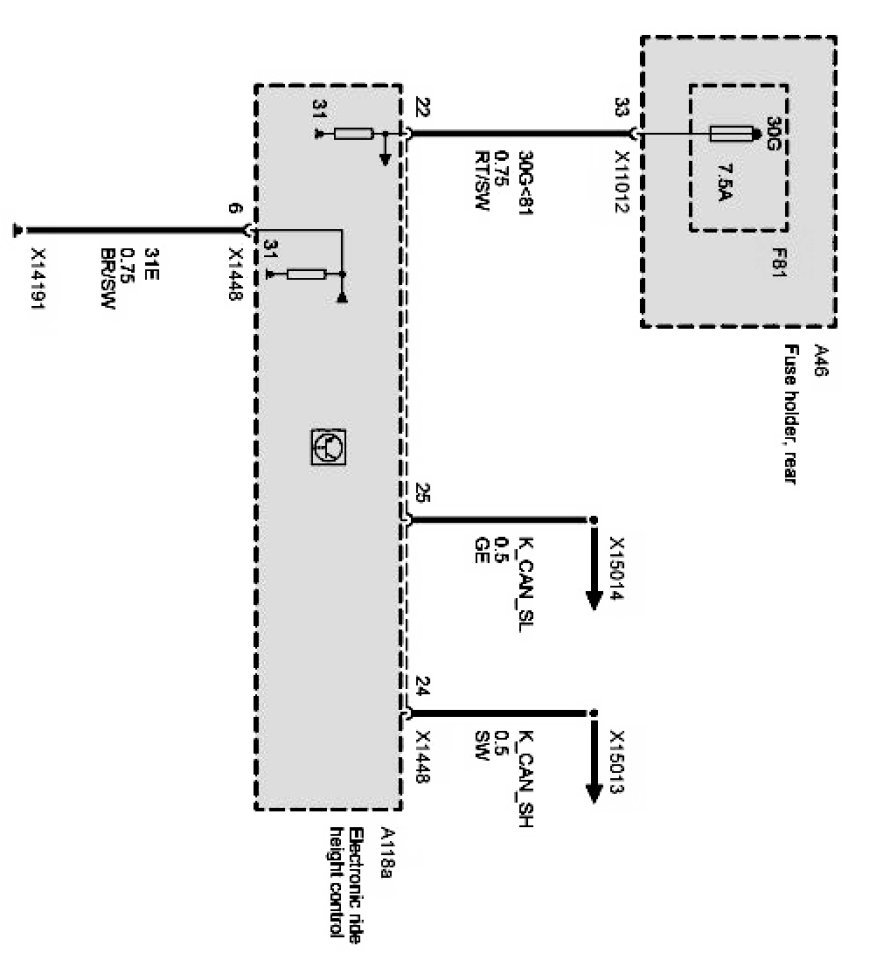

Supply, Electronic Ride Height Control (As of 09/05)

Supply, electronic ride height control:
