Home >> BMW >> 2008 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation (MOST Network) >> Rear Seat Entertainment (CHN_LHD With RSE Rear Seat Entertainment) >> Rear Seat Entertainment

Rear Seat Entertainment

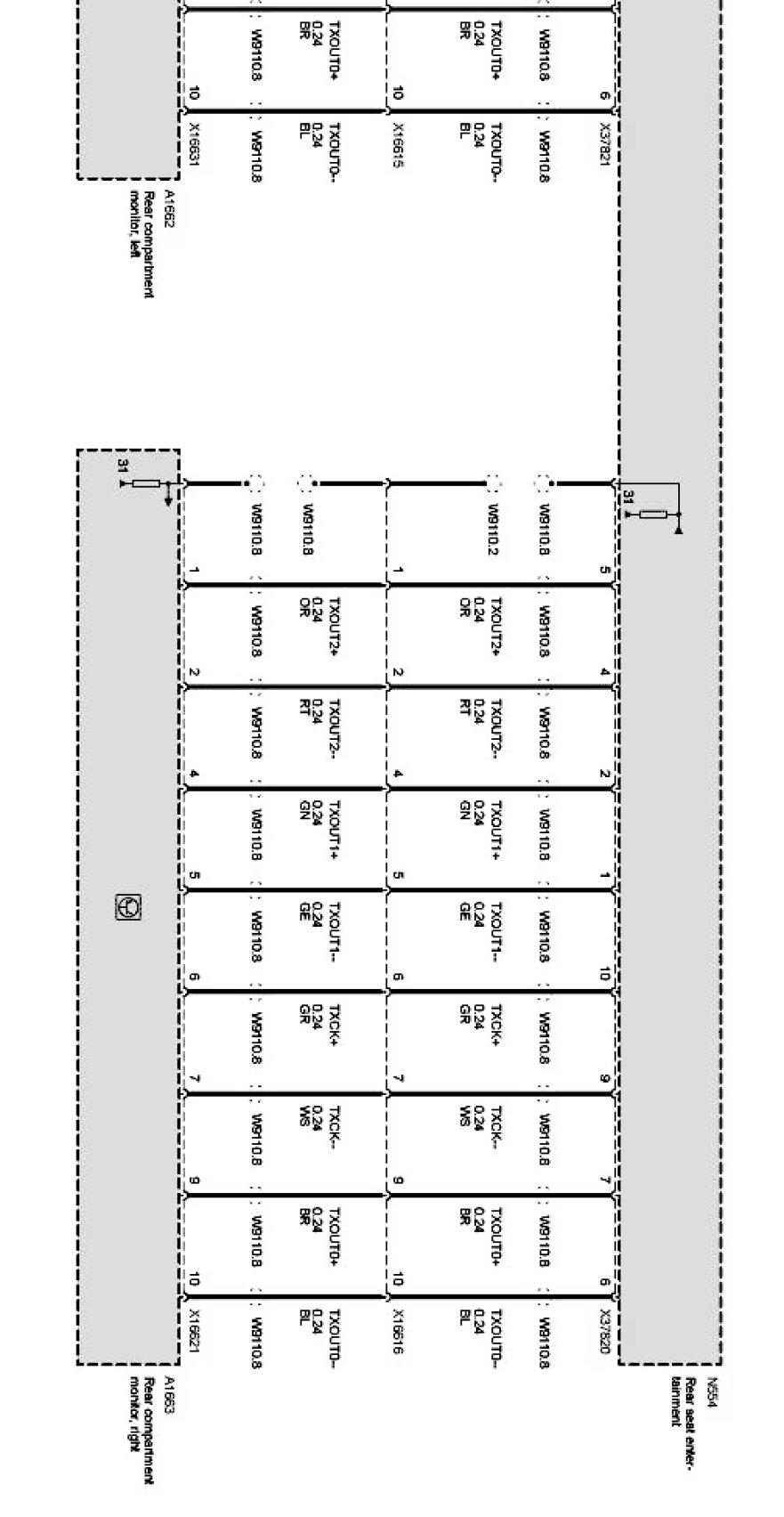

Rear seat entertainment Part 1:

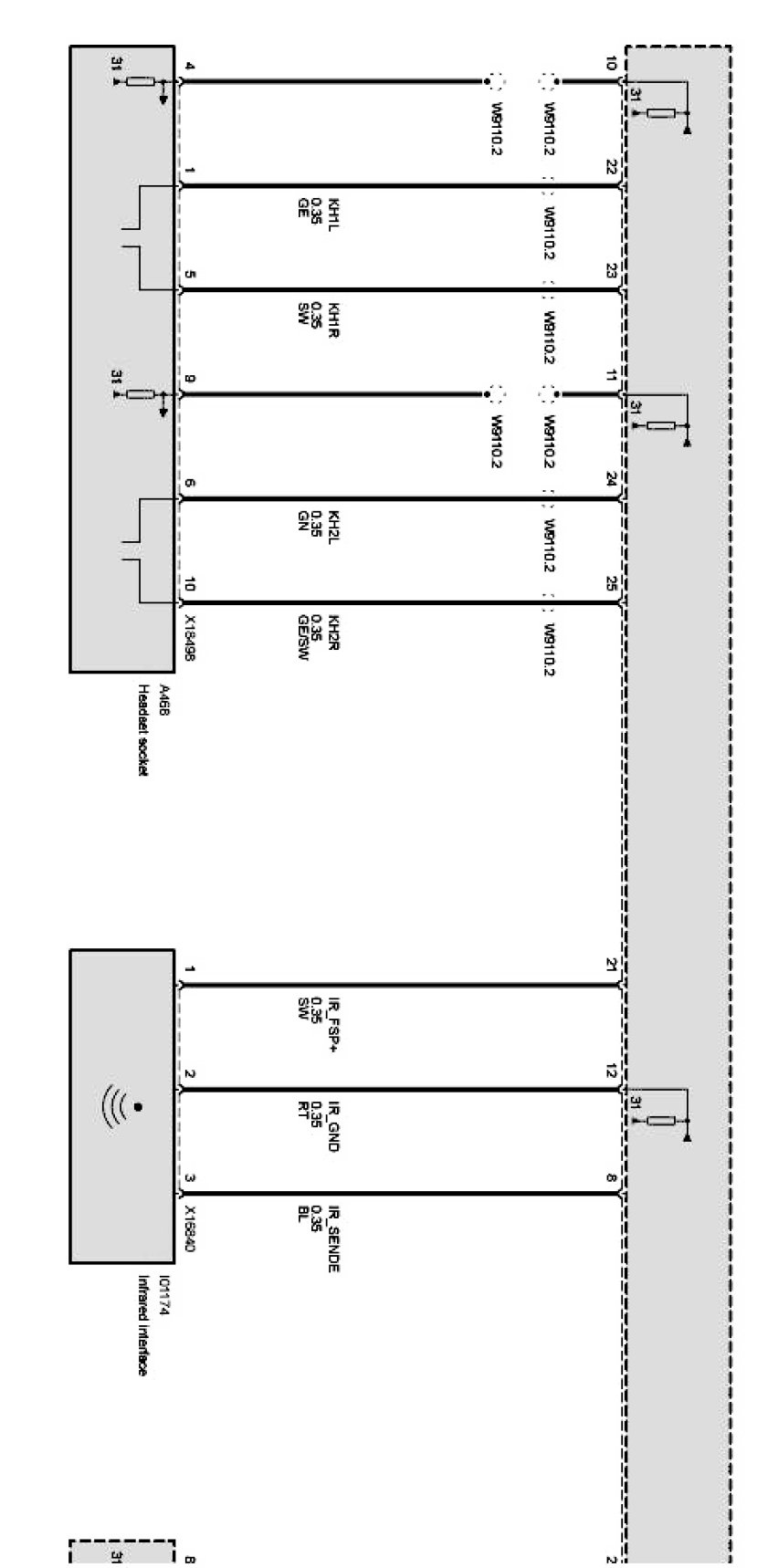

Rear seat entertainment Part 2:

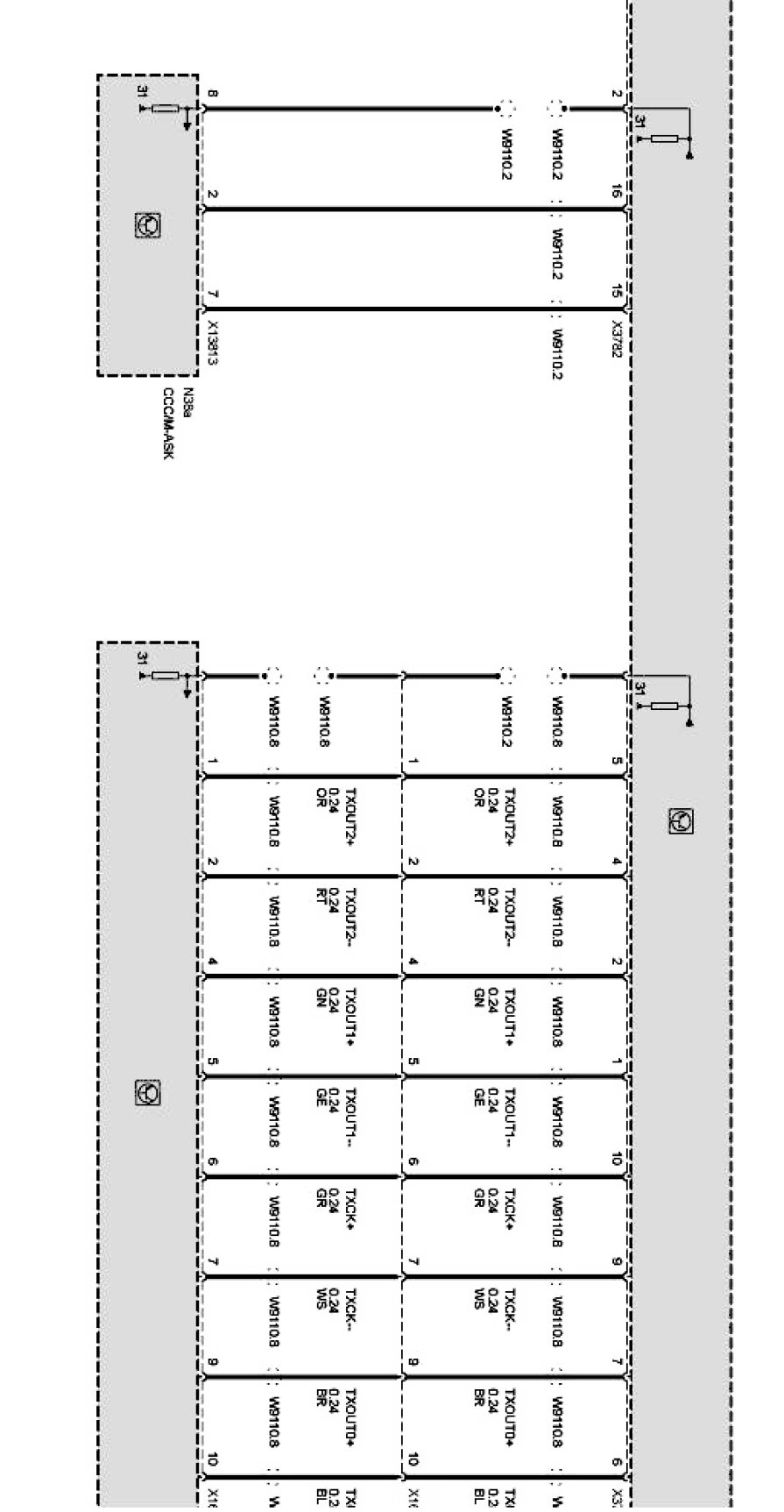

Rear seat entertainment Part 3:
