Home >> BMW >> 2008 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X1 >> X10513 Adapter 614470, Storage Location C110

X10513 Adapter 614470, Storage Location C110

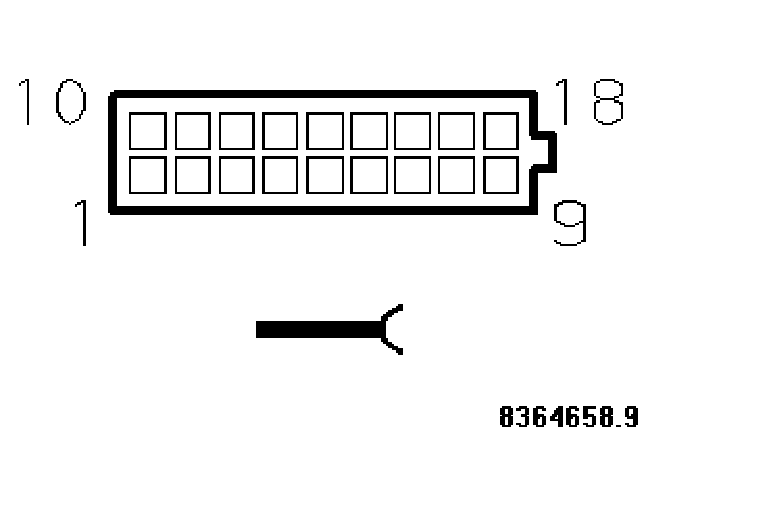

X10513:

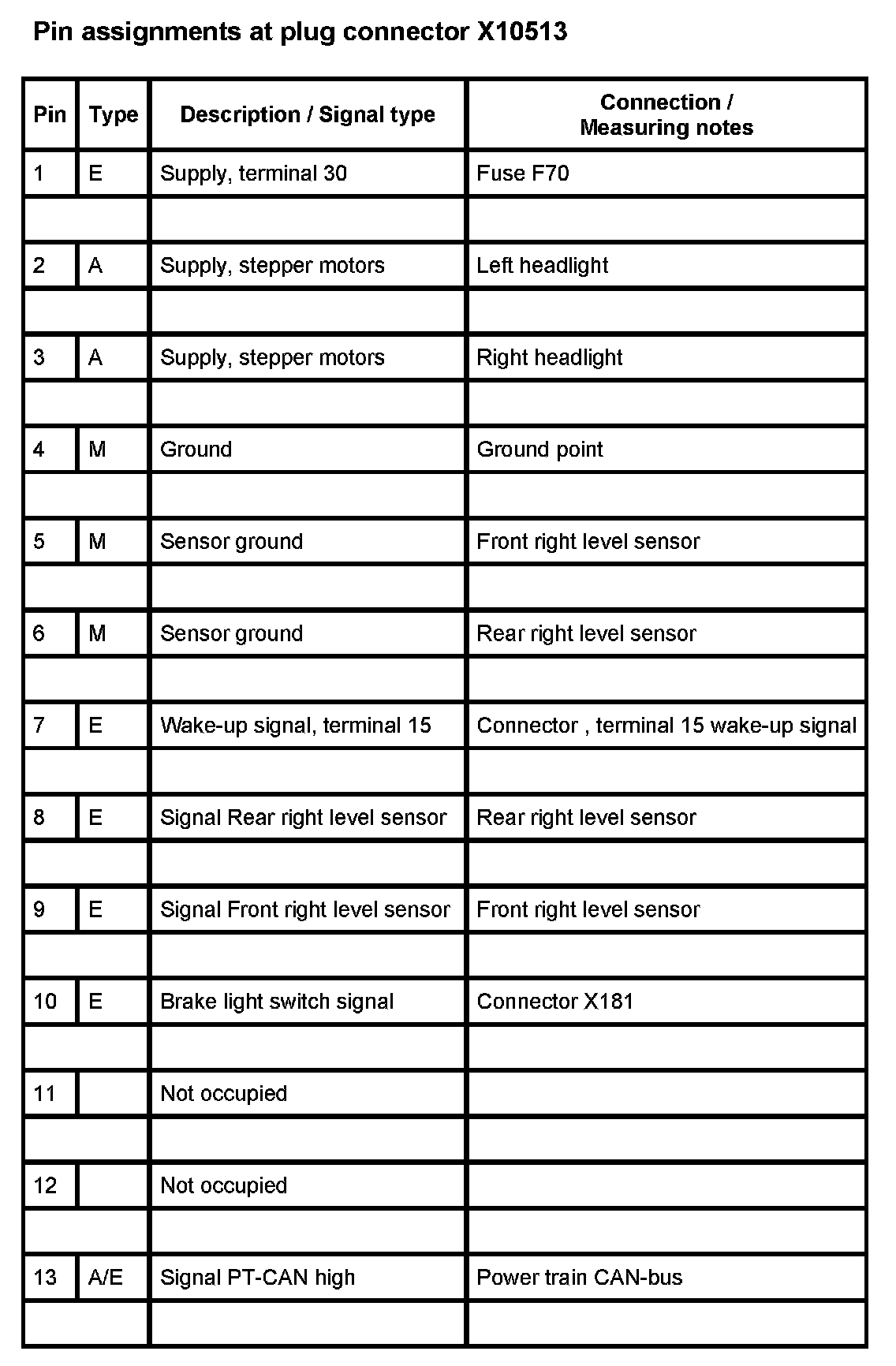

X10513 - Part 1:

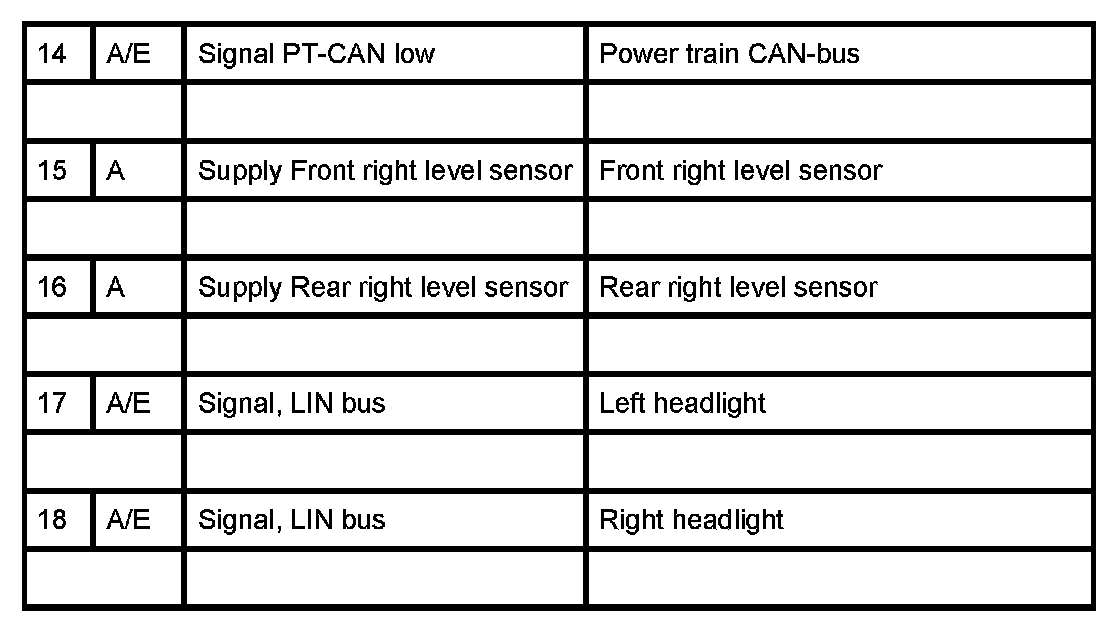

X10513 - Part 2:
