51 12 827 Removing and Installing / Replacing Guide for Bottom Rear Bumper

51 12 827 - Removing and installing / replacing guide for bottom rear bumper





Necessary preliminary tasks:
- Remove rear bumper trim





All except M6:
Release nuts (1) on guide (2).
Remove guide (2).

Installation:
If necessary, replace faulty nuts (1).

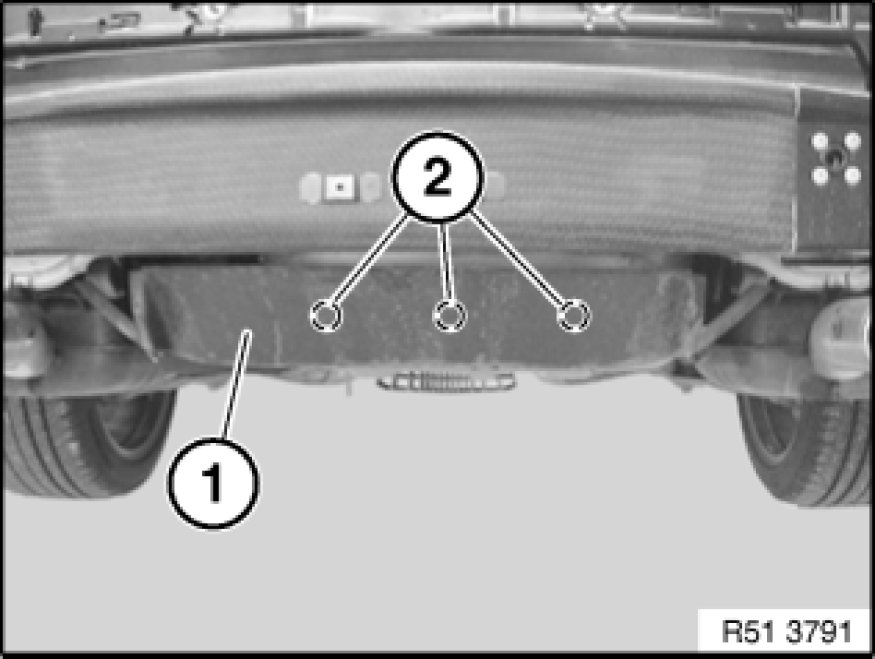

M6 only:
Bend guide (1) downwards slightly and release nuts (2) behind.
Remove guide (1).

Installation:
If necessary, replace faulty nuts (2).
