51 12 ... - Removing and installing / replacing locking part for rear bumper

51 12 ... - Removing and installing / replacing locking part for rear bumper





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove rear bumper trim

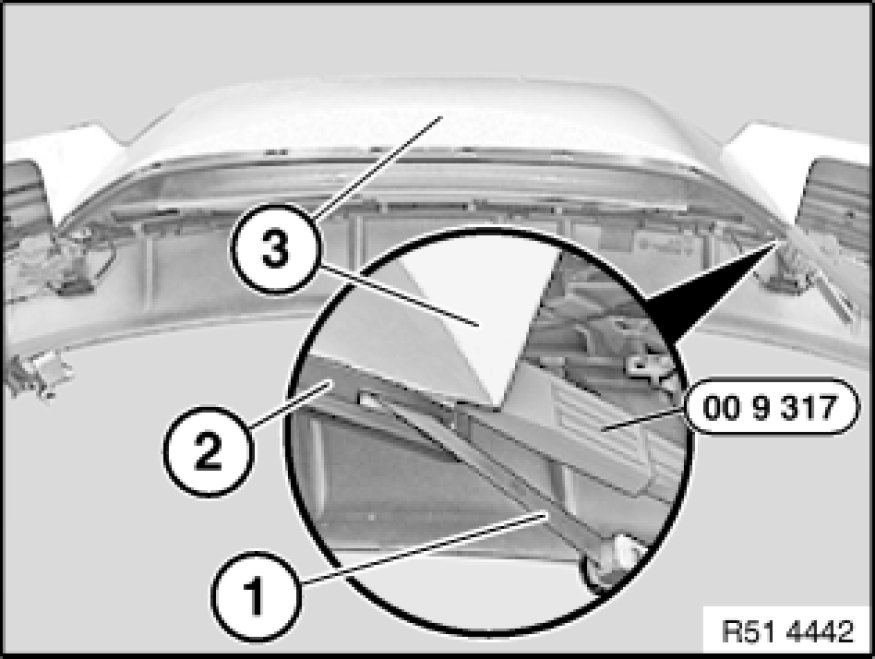

Using a 0.4 mm feeler gauge (1), press down catch onto bumper trim (3) and snap out locking part (2) with special tool 00 9 317 00 9 317 Trim Panel Wedge.

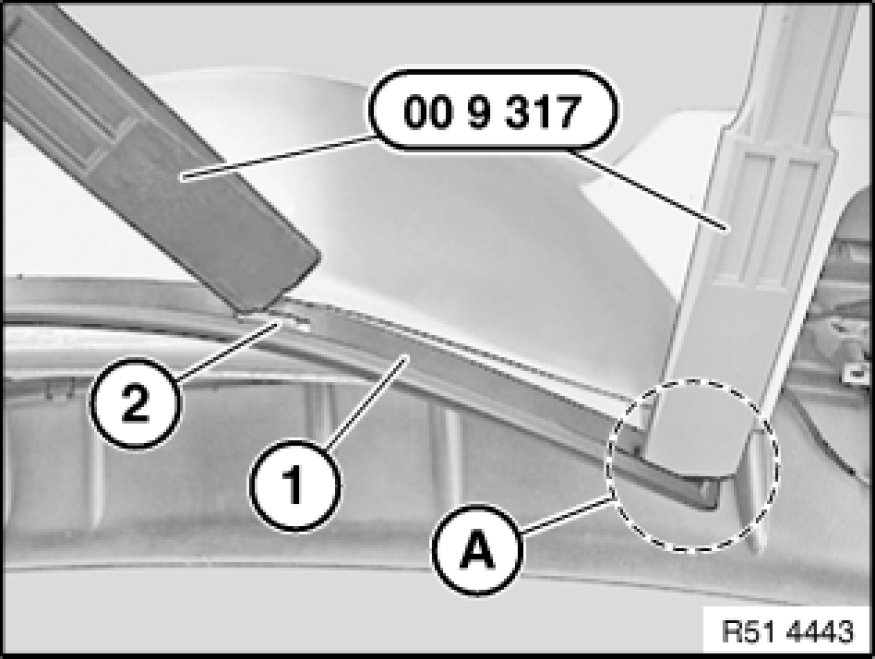

Press off locking part (1) slightly in area (A) with special tool 00 9 317 00 9 317 Trim Panel Wedge.
Release all further catches (2) with special tool 00 9 317 00 9 317 Trim Panel Wedge.
Remove locking part (1).
