Evaporator Temperature Sensor / Switch: Testing and Inspection

Evaporator Temperature Sensor

Evaporator temperature sensor

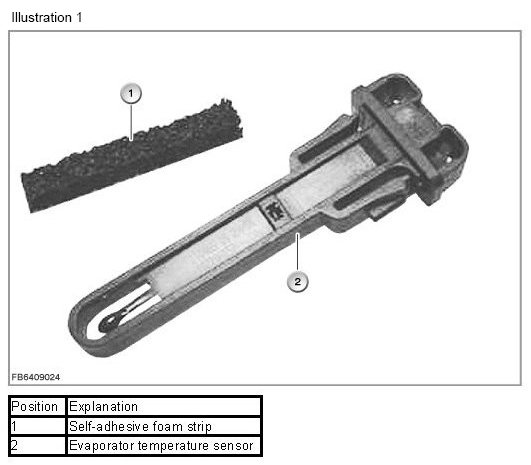

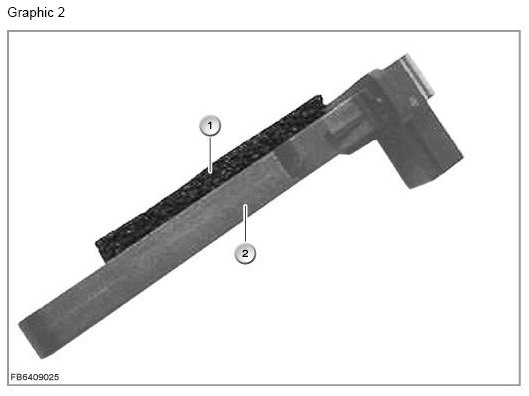

Warm excess air can flow between evaporator and housing wall and hit the evaporator temperature sensor. The following graphics illustrate the affixing of a self-adhesive foam strip on the evaporator temperature sensor, which eliminates the fault.
